Front Console Wiring Harness, PowrReverser™ Plus, Cab (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7469	1	Electrical Connector Assy	-
1	57M7840	1	Elec. Connector Housing	FNR Switch S14
1	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
1	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
2	57M10299	1	Elec. Connector Housing	Light Switches X050A
2	57M8565	9	Elec. Connector Terminal	Cavity 1 - 9
2	57M8572	1	Elec. Connector Cavity Plug	Cavity 10
3	57M7262	1	Elec. Connector Housing	Multifunction High - Low Switch X051A
3	57M8907	1	Elec.Connect Locking Device	-
3	57M10770	9	Elec. Connector Terminal	Cavity A - H, J
3	57M7258	9	Elec. Connector Seal	Cavity A - H, J
3	57M7259	1	Elec. Connector Seal	Cavity K
4	RE46735	1	Electrical Connector Assy	Front Wiper Switch S30
4	57M7429	3	Elec. Connector Terminal	Cavity 3, L, B
4	57M7511	4	Elec. Connector Terminal	Cavity 1, 2, 4, P
5	57M10961	1	Elec. Connector Housing	Exhaust Filter Cleaning Switch S35
5	57M8292	2	Elec. Connector Terminal	Cavity 2, 3, 6
6	Z61311	1	Elec. Connector Housing	Neutral Relay K11
6	57M10498	1	Elec. Connector Terminal	Cavity 30
6	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
6	57M9491	1	Elec. Connector Terminal	Cavity 87
7	AL76702	1	Relay	Neutral Relay
8	57M9491	2	Elec. Connector Terminal	Cavity 30, 87
8	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
8	Z61311	1	Elec. Connector Housing	Headlight Relay K27
9	AL76702	1	Relay	Headlight Relay
10	Z61311	1	Elec. Connector Housing	Accessory Relay K07
10	57M10498	2	Elec. Connector Terminal	Cavity 30, 87
10	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
11	AL76702	1	Relay	Accessory Relay
12	57M9491	2	Elec. Connector Terminal	Cavity 2, 8
12	57M7825	3	Elec. Connector Terminal	Cavity 4, 5, 6
12	57M9714	3	Elec. Connector Terminal	Cavity 1, 3, 7
12	57M10426	1	Elec. Connector Accessory	Diode Assembly V01
13	RE262484	1	Diode	1.5 A
14	57M7261	1	Elec. Connector Housing	Brake Pedal Switch S17
14	57M7296	1	Elec. Connector Accessory	-
14	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
14	57M9215	3	Elec. Connector Seal	Cavity A, C, D
14	57M7258	1	Elec. Connector Seal	Cavity B
14	57M7259	4	Elec. Connector Seal	Cavity E, F, G, H
15	SJ19150	1	Wiring Harness	Front Console

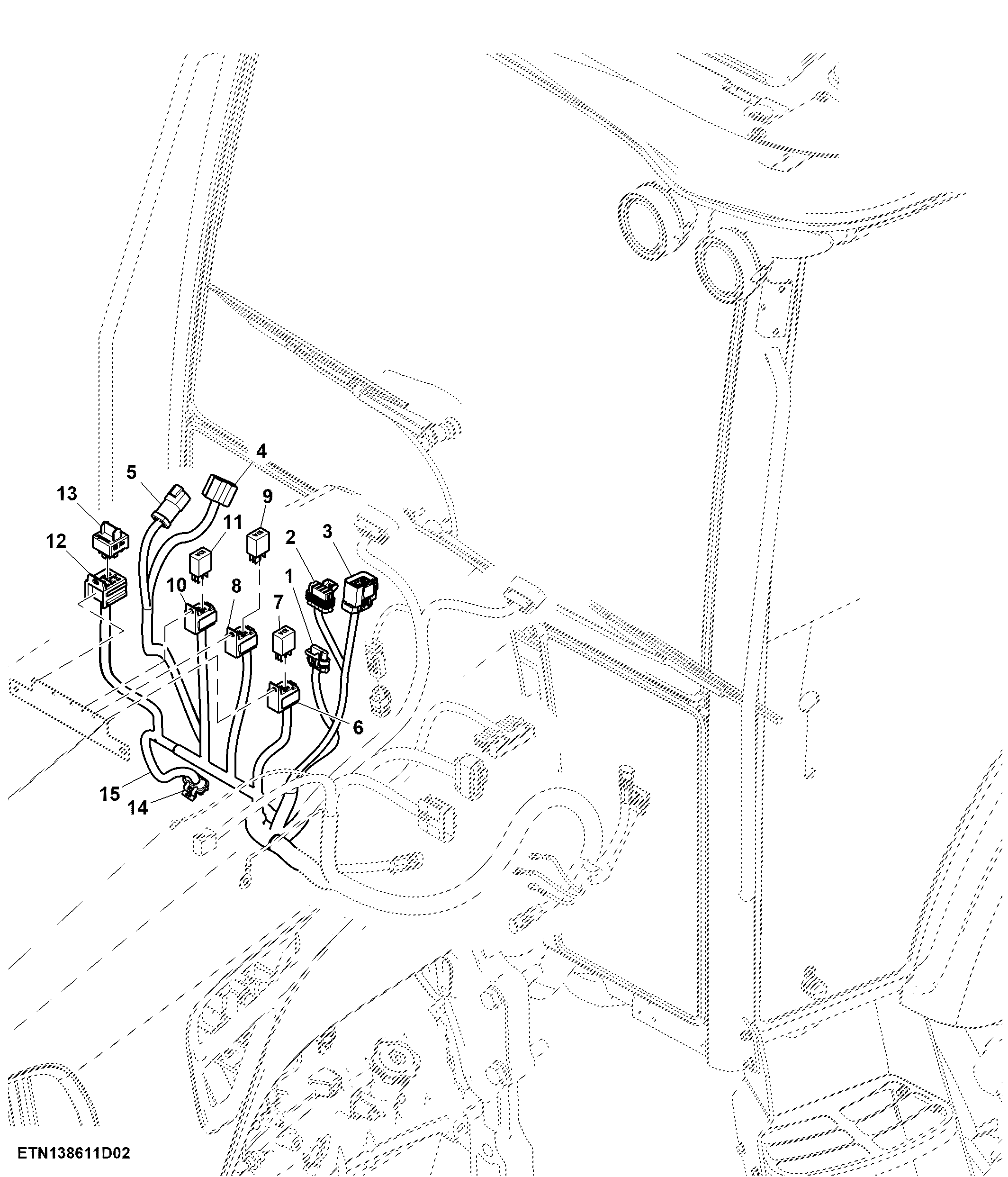

Front Console Wiring Harness, PowrReverser™ Plus, Cab (2/2)
