Diesel Exhaust Fluid Tank Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M13137	1	Elec. Connector Housing	DEF Tank Heater XA5507-2
2	R105388	1	Tie Band	-
3	19M7784	1	Screw	M10 X 20
4	SJ27654	1	Wiring Harness	-
5	57M9776	1	Elec. Connector Housing	DEF Heater Suction Line E5602
5	57M10322	2	Elec. Connector Terminal	-
6	57M8866	1	Elec. Connector Terminal	Chassis Ground
7	57M9802	1	Elec. Connector Housing	Engine Interface DEF X5038A
7	57M9808	2	Elec. Connector Terminal	Cavity 1, 7
7	57M9808	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 9, 10, 11, 12
8	57M9590	2	Clamp	-
9	57M8871	1	Elec. Connector Terminal	Fuel Tank Ground
10	57M9777	1	Elec. Connector Housing	DEF Heater Pressure Line E5601
10	57M10322	2	Elec. Connector Terminal	-
11	57M9778	1	Elec. Connector Housing	DEF Heater Return Line E5603
11	57M10322	2	Elec. Connector Terminal	-
12	57M10958	1	Elec. Connector Housing	SCR Supply Module
12	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6,8, 9, 10, 11, 12
13	57M9940	3	Elec. Connector Accessory	-
14	57M11439	1	Elec. Connector Accessory	-
15	57M9801	1	Elec. Connector Housing	Engine Interface SCR X5037A
15	57M10321	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
16	57M9788	1	Elec. Connector Housing	DEF Quality Sensor XA5507-1
16	57M8261	2	Elec. Connector Terminal	Cavity 3, 4
16	57M8537	2	Elec. Connector Terminal	Cavity 1, 2

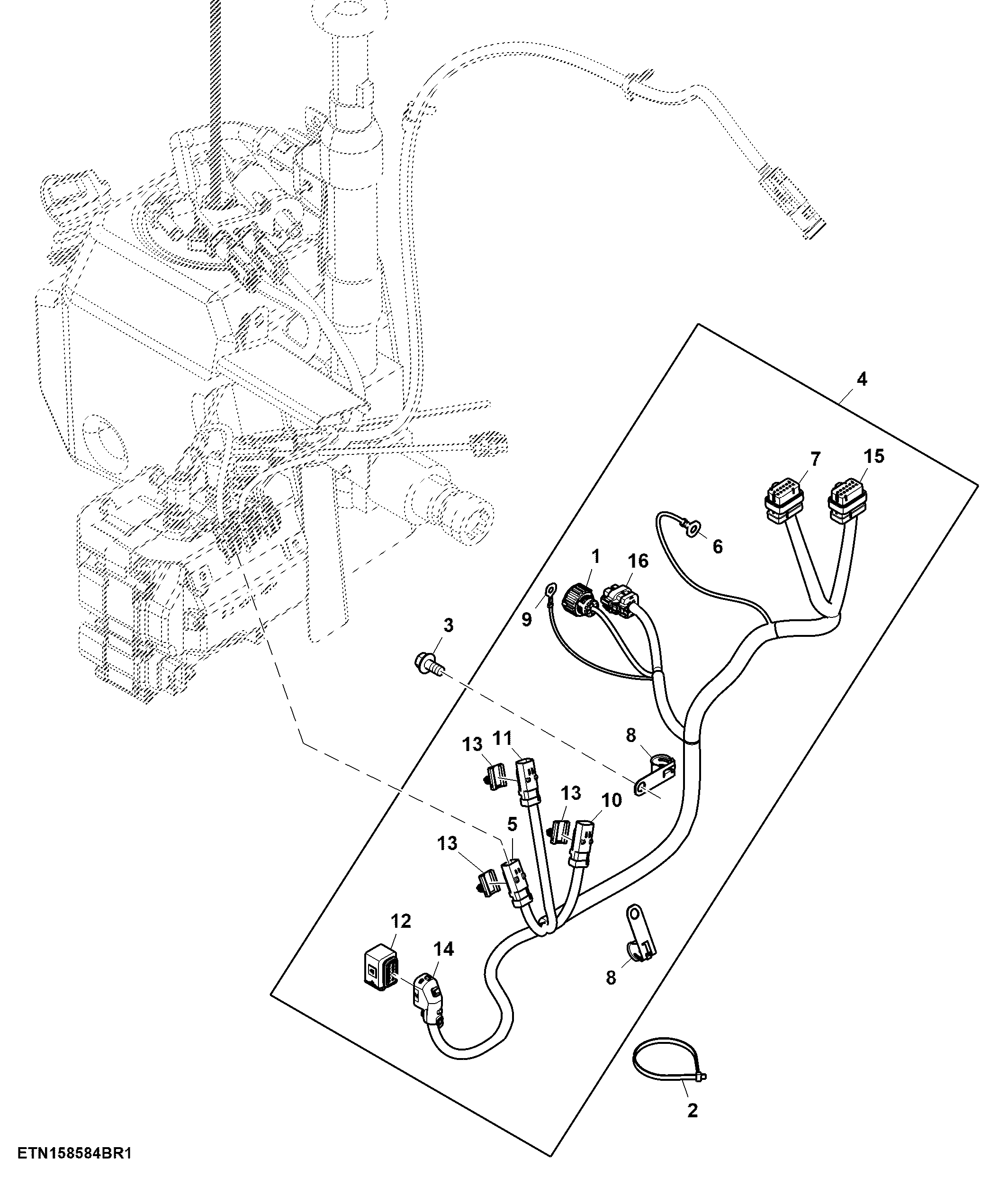

Diesel Exhaust Fluid Tank Wiring Harness
