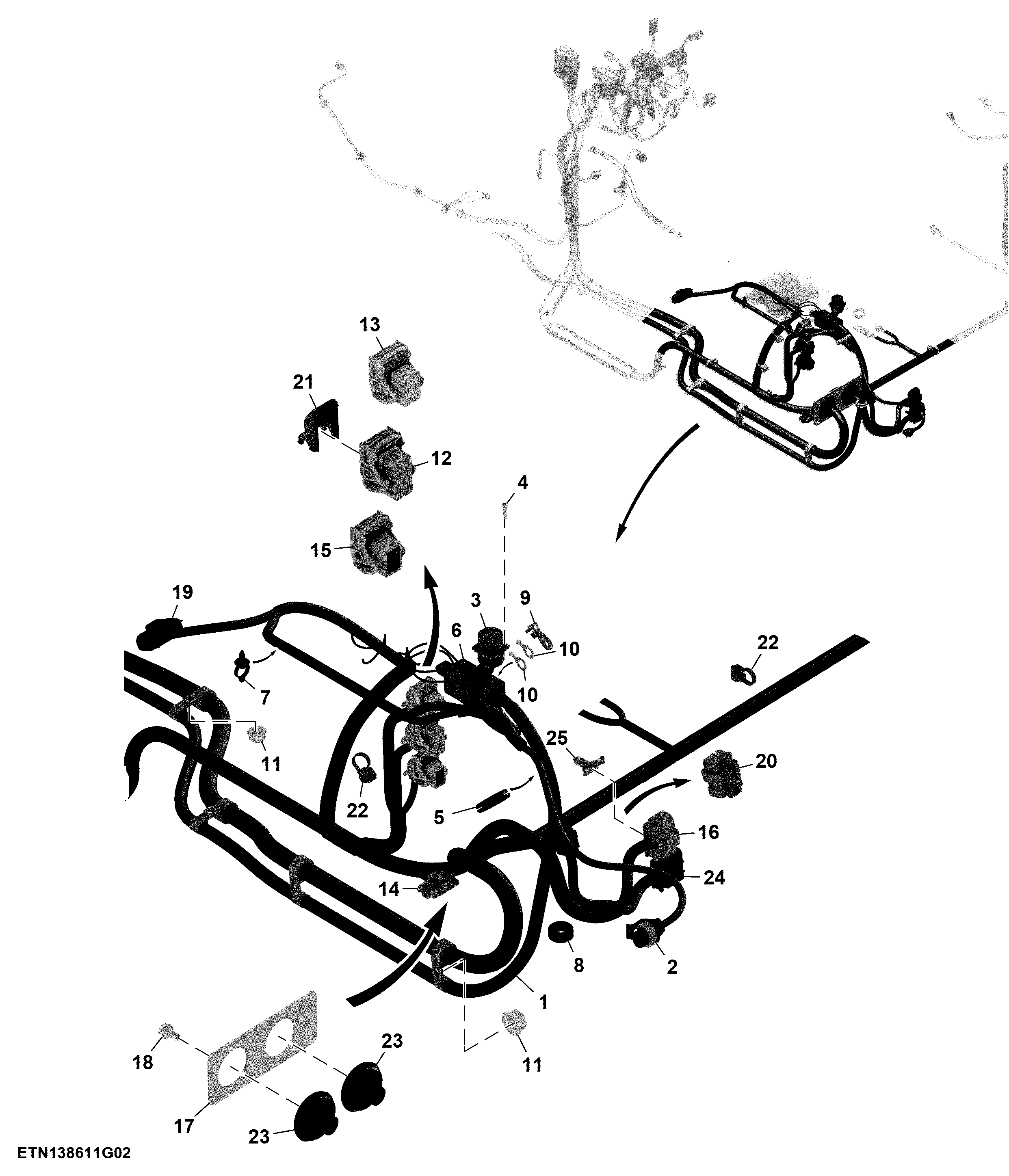

Cab Wiring Harness Connectors, PowrReverser™ Plus(2/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ42760	1	Cab Wiring Harness	-
2	57M7349	1	Elec. Connector Accessory	Right tail/Turn Lamp H03
2	57M7347	1	Elec. Connector Accessory	-
2	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
2	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
3	57M7919	1	Elec. Connector Housing	Service Advisor X07
3	N282069	2	Elec. Connector Terminal	Cavity A, B
3	57M8164	2	Elec. Connector Terminal	Cavity C, D
3	R78069	5	Elec. Connector Cavity Plug	Cavity E - H, J
4	37M7095	4	Screw	-
5	SU30075	2	Grommet	-
6	RE48875	1	Junction Block	-
7	RE258807	2	Tie Band	-
8	FH318001	1	Grommet	-
9	57M8901	2	Elec. Connector Terminal	-
10	57M8865	1	Elec. Connector Terminal	-
11	14M7298	3	Flange Nut	M8
12	57M10615	3	Elec. Connector Housing	FCC J2 Connector A06_J2
12	57M10334	1	Elec. Connector Cavity Plug	Cavity L3
12	57M10333	17	Elec. Connector Cavity Plug	Cavity A2, A4, B4, C1 - C4, D1, D3, E1, E2, G2, G3, H1, H3, J1, J3
12	57M10331	1	Elec. Connector Terminal	Cavity 1
12	57M10617	6	Elec. Connector Housing	Cavity L1, L2, M1 - M4
12	57M10330	23	Elec. Connector Terminal	Cavity A1, A3, B1 - B3, D2, D4, E3 - F4, G1, G4, H2, H4, J2, J4, K1 - K4
12	Z36392	1	Tie Band	-
13	57M10609	3	Elec. Connector Housing	FCC J1 Connector A06_J1
13	Z36392	1	Tie Band	-
13	57M10330	10	Elec. Connector Terminal	Cavity A3 - B2, C1-C4, E1-E2
13	57M10331	3	Elec. Connector Terminal	Cavity G4 - H2
13	57M10333	14	Elec. Connector Cavity Plug	Cavity A1 , A2 ,B3, B4, D1- D4, E3 - F4
13	57M10334	6	Elec. Connector Cavity Plug	Cavity G1 - G4, H3, H4
14	57M9218	3	Elec. Connector Seal	Cavity D, E, F
14	57M9219	1	Elec. Connector Seal	Cavity C
14	57M9216	1	Elec. Connector Seal	Cavity B
14	57M9217	1	Elec. Connector Seal	Cavity A
14	57M7297	1	Elec. Connector Terminal	Cavity C, E, F
14	57M7491	1	Elec. Connector Terminal	Cavity D
14	57M9406	1	Elec. Connector Accessory	Single Point Ground Slice Pack SPK01
14	57M7299	2	Elec. Connector Terminal	Cavity A, B
14	57M8326	1	Electrical Connector Assy	-
15	57M10606	3	Elec. Connector Housing	FCC J3 Connector A06_J3
15	Z36392	1	Tie Band	-
15	57M10330	7	Elec. Connector Terminal	Cavity A4, B3, C1, C2, D4, E1, E4
15	57M10333	25	Elec. Connector Cavity Plug	Cavity A1 - A3, B1, B2, C3 - D3, E2, E3, F1 - H4
16	57M8299	2	Elec. Connector Terminal	Cavity G, M
16	57M9446	6	Elec. Connector Seal	Cavity B, F, H, N, R, S
16	57M8321	8	Elec. Connector Terminal	Cavity A, C, D, E, J, K, L, P
16	57M8300	8	Elec. Connector Terminal	Cavity A, C, D, E, J, K, L, P
16	57M9919	1	Elec. Connector Accessory	-
16	57M8484	1	Elec. Connector Housing	Front Console Connector 3 X032A
17	SU23151	1	Bracket	-
18	19M7774	4	Screw	M6 X 12
19	57M8329	1	Electrical Connector Assy	Cavity R
19	57M8323	8	Elec. Connector Terminal	Cavity B - E, H, J, M, P, S
19	57M8324	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
19	57M8303	8	Elec. Connector Terminal	Cavity B - E, H, J, M, P, S
19	57M11955	1	Elec. Connector Accessory	-
19	57M8279	1	Elec. Connector Housing	Roof Harness X012A
19	57M8304	6	Elec. Connector Terminal	Cavity A, F, G, K, L, N
20	57M9792	1	Elec. Connector Housing	XX037-1
20	57M10631	4	Elec. Connector Terminal	Cavity 1, 2, 7, 8
20	57M9809	2	Elec. Connector Terminal	Cavity 5, 6
20	57M9814	2	Elec. Connector Cavity Plug	Cavity 3, 4
21	57M10613	1	Elec. Connector Housing	-
22	CB01483609	8	Tie Band	-
23	R213135	2	Grommet	-
24	57M8281	1	Elec. Connector Housing	Front Console Connector X031A
24	57M11996	1	Elec. Connector Accessory	-
24	57M8308	1	Elec. Connector Terminal	Cavity A
24	57M8301	11	Elec. Connector Terminal	Cavity B - G
24	57M8309	3	Elec. Connector Terminal	Cavity H, J, S
24	57M8324	4	Elec. Connector Terminal	Cavity A, H, J, S
24	57M8321	11	Elec. Connector Terminal	Cavity B - G, K, L, N - R
24	57M9446	1	Elec. Connector Seal	Cavity M
25	57M8910	1	Clip	-
