Wiring Harness Connectors, PowrReverser™ Plus, OOS (4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40738	1	Wiring Harness	-
2	RE269840	1	Fuse Box	Load Center 2 X002
2	57M8584	10	Elec. Connector Terminal	Cavity A4, A6, A7, C5 - C7, D4, D5, F4, F5
2	57M8585	6	Elec. Connector Terminal	Cavity A5, A9, A10, B4, C9, C10
2	57M7399	6	Elec. Connector Seal	Cavity A5, A9, A10, B4, C9, C10
2	57M7401	44	Elec. Connector Cavity Plug	Cavity A1 - A3, A8, B1 - B3, B5 - C4, C8, D1 - D3, D6 - F3, F6 - F10
2	57M8515	10	Elec. Connector Seal	Cavity A4, A6, A7, C5 - C7, D4, D5, F4, F5
3	57M8324	2	Elec. Connector Terminal	Cavity A, H
3	57M9446	2	Elec. Connector Seal	Cavity D, M
3	57M9223	4	Elec. Connector Seal	Cavity C, L, N , R
3	57M8322	1	Elec. Connector Terminal	Cavity S
3	57M8321	6	Elec. Connector Terminal	Cavity B, E - G, K, P
3	57M9539	4	Elec. Connector Terminal	Cavity C, L, N , R
3	57M8307	1	Elec. Connector Terminal	Cavity J
3	57M8306	1	Elec. Connector Terminal	Cavity S
3	57M8281	1	Elec. Connector Housing	Transmission Harness 1 X004
3	57M8301	6	Elec. Connector Terminal	Cavity B, E - G, K, P
3	57M11996	1	Elec. Connector Accessory	-
3	57M8309	2	Elec. Connector Terminal	Cavity A, H
4	57M8910	1	Clip	-
5	57M8299	14	Elec. Connector Terminal	Cavity A - M, R, S
5	57M9223	14	Elec. Connector Seal	Cavity A - M, R, S
5	57M8321	2	Elec. Connector Terminal	Cavity N, P
5	57M8300	2	Elec. Connector Terminal	Cavity N, P
5	57M9919	1	Elec. Connector Accessory	-
5	57M8484	1	Elec. Connector Housing	Transmission Harness 2 X003
6	57M9776	1	Elec. Connector Housing	Chassis Can Terminator R1
6	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
7	57M11134	1	Elec. Connector Housing	5W
8	57M9183	1	Elec. Connector Housing	Service Advisor X07
8	57M9181	4	Elec. Connector Cable Seal	Cavity E - J
8	57M8164	2	Elec. Connector Terminal	Cavity C, D
8	57M9358	1	Elec. Connector Accessory	-
8	N282069	2	Elec. Connector Terminal	Cavity A, B
9	57M9182	1	Nut	-
10	RE217864	1	Cap	-
11	57M8875	1	Elec. Connector Terminal	Junction Block Battery Power X02-A
12	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power X02-C
13	57M7399	16	Elec. Connector Seal	Cavity A2 - A10, B2 - B8, C1 - C6, C9 - D6, D10-E3, F1-F3, F9
13	57M8515	18	Elec. Connector Seal	Cavity A1, B1, C7, C8, D7 - D9, E4 - E8, F4 - F8, F10
13	57M7401	4	Elec. Connector Cavity Plug	Cavity B9, B10, E9, E10
13	57M8585	16	Elec. Connector Terminal	Cavity A2 - A10, B2 - B8, C1 - C6, C9 - D6, D10 - E3, F1 - F3, F9
13	57M8584	18	Elec. Connector Terminal	Cavity A1, B1, C7, C8, D7 - D9, E4 - E8, F4 - F8, F10
13	RE180265	1	Diode	1 A
13	57M11521	4	Elec. Connector Accessory	25 A
13	57M8163	5	Fuse	30 A
13	57M7688	1	Fuse	5 A
13	RE269840	1	Fuse Box	Load Center 1 X001
14	57M8875	1	Elec. Connector Terminal	Junction Block Ground X02-B
15	RE186986	1	Junction Block	-
16	24M7027	2	Washer	5.300 X 10 X 1 mm
17	14M7297	2	Nut	M5
18	14M7194	1	Nut	M6
19	SU46065	1	Label	-
20	14M7375	2	Flange Nut	M5
21	57M8908	1	Clip	-
22	19M7640	8	Cap Screw	M5 X 12
23	19M7502	2	Cap Screw	M5 X 25

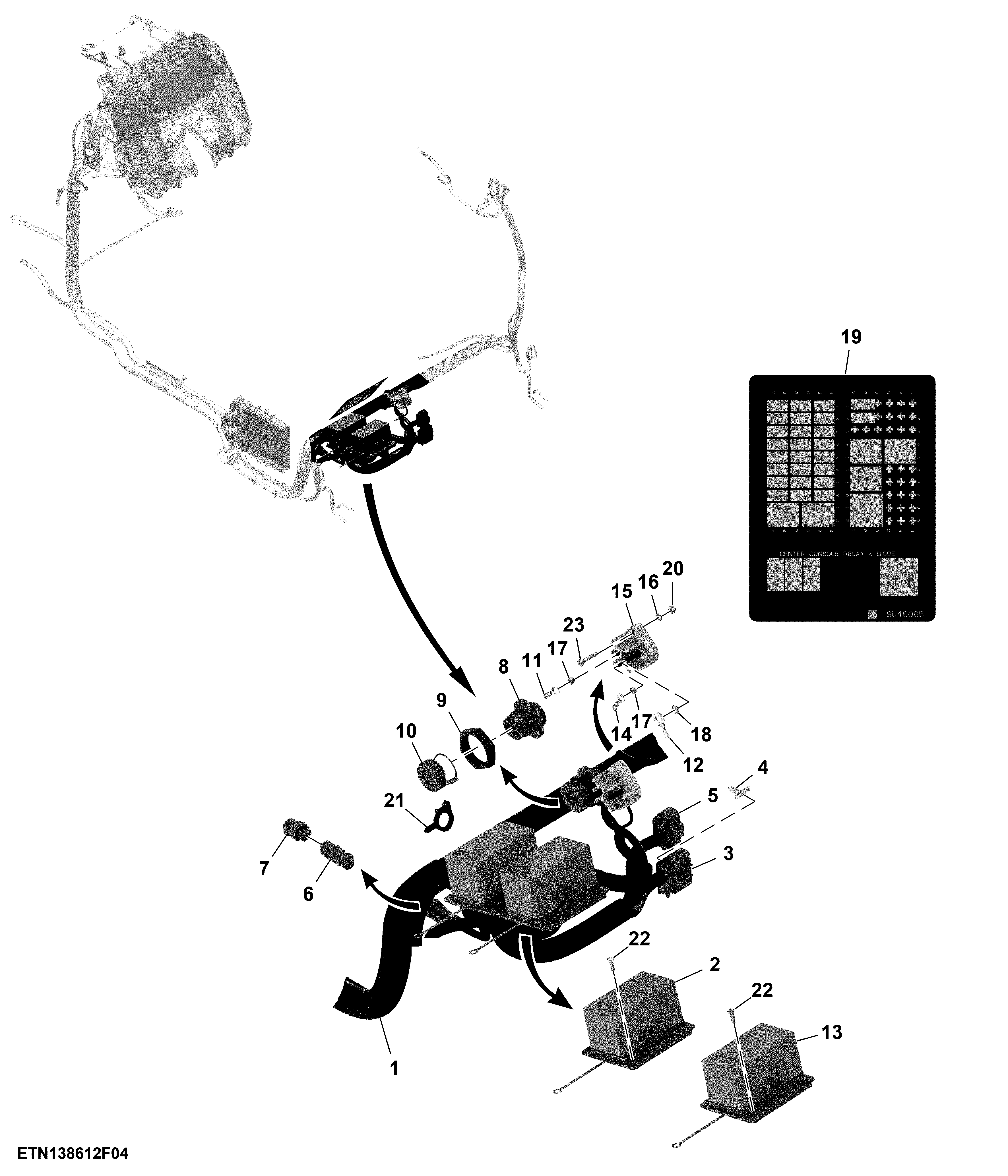

Wiring Harness Connectors, PowrReverser™ Plus, OOS (4/6)
