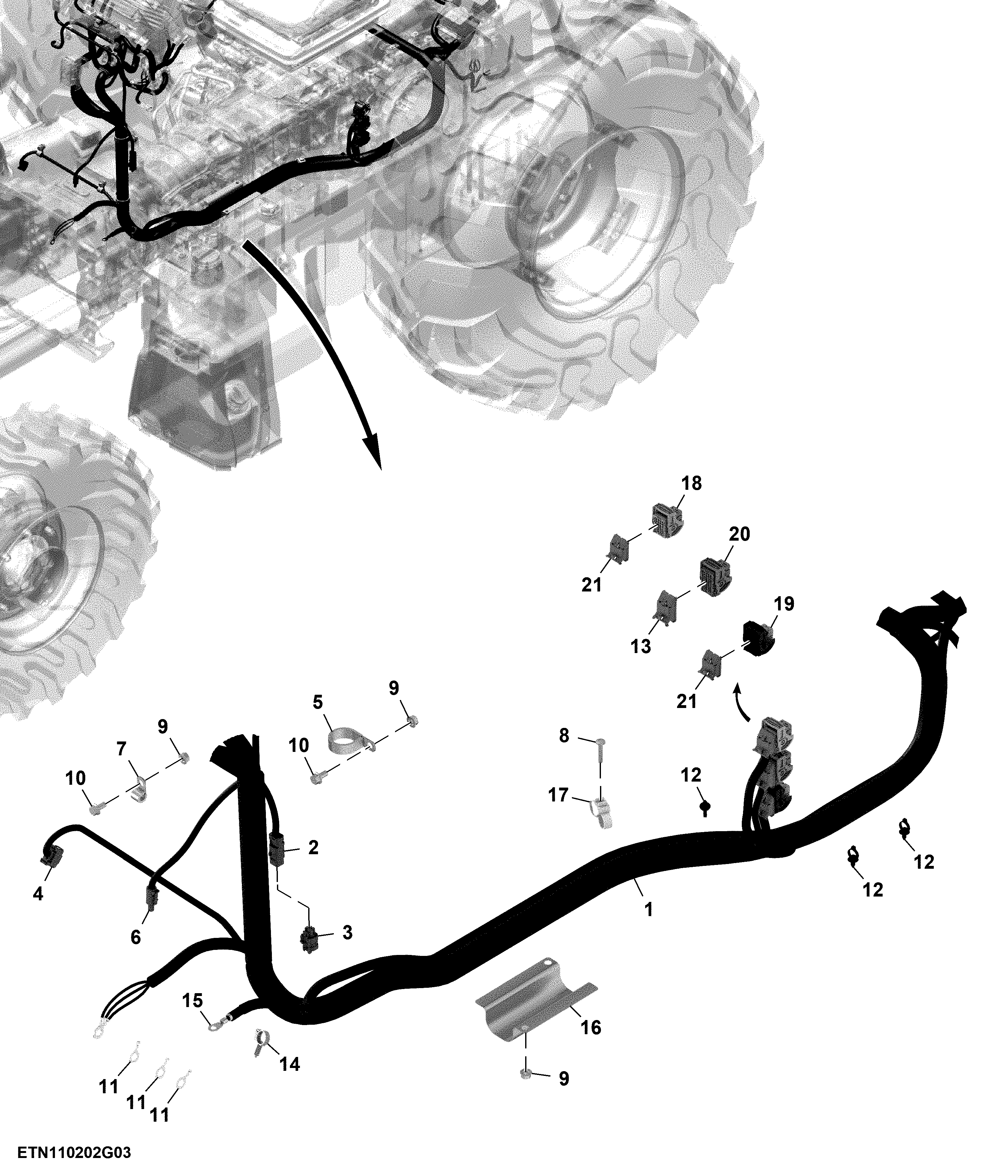

OOS Wiring Harness Connectors, PowrReverser™ (3/6)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31321	1	Wiring Harness	-
2	57M9776	1	Elec. Connector Housing	Cab Can Terminator R2
2	57M9812	1	Elec. Connector Terminal	Cavity 1, 2
3	57M11134	1	Elec. Connector Housing	-
4	57M7953	1	Electrical Connector Assy	Foot Throttle B32
4	57M9180	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7955	2	Elec. Connector Seal	Cavity 1, 2
5	57M12136	1	Clamp	-
6	57M7762	1	Electrical Connector Assy	Engine Harness X5074
6	57M10916	1	Elec. Connector Terminal	Cavity 1
7	57M12128	2	Clamp	-
8	03M7269	1	Bolt	M6 X 35
9	14M7298	6	Flange Nut	M8
10	19M7865	3	Screw	M8 X 16
11	57M7894	3	Elec. Connector Terminal	-
12	RE258807	5	Tie Band	-
12	R267935	1	Channel	-
13	57M10613	1	Elec. Connector Housing	FCC Controller J2 A01 - B
13	57M10330	1	Elec. Connector Terminal	Cavity A1, A3, B1, D2, D4, E3, E4, F1, F2, F3, F4, G1, G4, H4, J2, J4, K1, K2, K4, L1, L2, L4, M1, M2, M3, M4
14	57M8902	1	Clip	-
15	57M8900	1	Elec. Connector Terminal	-
16	R266722	1	Bracket	-
17	R213663	1	Clamp	-
18	57M10609	3	Elec. Connector Housing	FCC Controller J1 A01-A-1
18	57M10330	11	Elec. Connector Terminal	Cavity A3, A4, B1, B2, C1, C2, C3, E1, E2, H1, H2
19	57M10606	2	Elec. Connector Housing	-
20	57M10615	3	Elec. Connector Housing	-
21	57M10604	1	Elec. Connector Housing	-

OOS Wiring Harness Connectors, PowrReverser™ (3/6)
