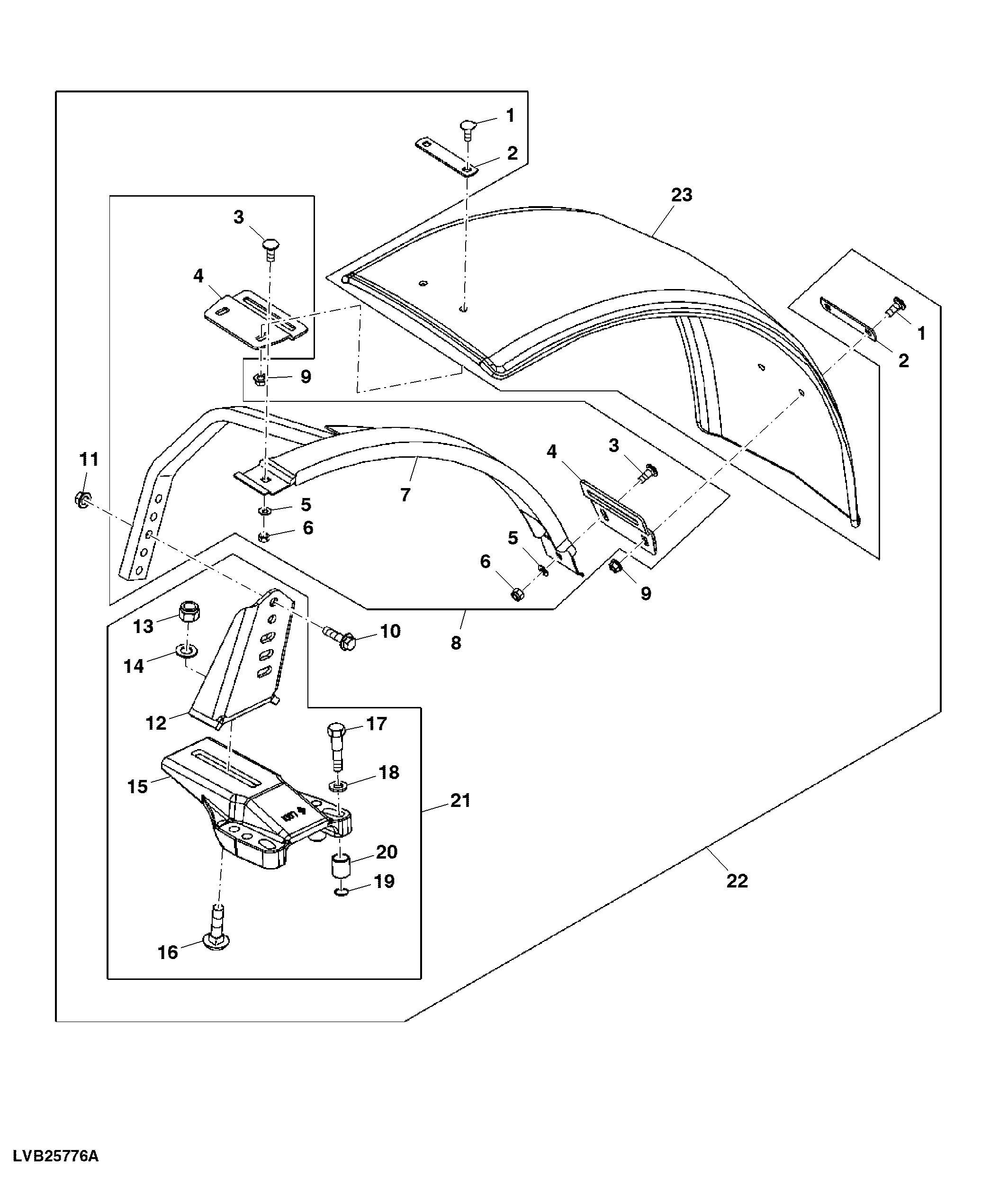

Front Fender Mounting Brackets and Hardware W/O Loader, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7191	8	Bolt	M10 X 25
2	L27099	4	Strap	-
3	03M7264	4	Bolt	M10 X 25
4	L166495	4	Adjusting Strap	-
5	-	4	Part 5	-
6	14M7324	4	Lock Nut	M10
7	AL166785	1	Adjusting Strap	RH
7	AL166807	1	Adjusting Strap	LH
8	-	1	Part 9	Order Individual Parts RH
8	-	1	Part 10	Order Individual Parts LH (Shown)
9	14M7517	8	Lock Nut	M10
10	19M7813	4	Screw	M12 X 45
11	14M7299	4	Flange Nut	M12
12	AL166799	1	Support	LH
12	AL166773	1	Support	RH
13	14M7332	2	Flange Nut	M18
14	24M7318	2	Washer	19 X 34 X 3 mm
15	L172087	2	Base	-
16	L166483	2	Bolt	-
17	19M7344	8	Cap Screw	M16 X 65
18	24M7113	8	Washer	17 X 28 X 3 mm
19	WZ1400022	8	O-Ring	-
20	L166487	8	Spacer	-
21	AL169042	1	Support	Order Individual Parts RH
21	AL169041	1	Support	Order Individual Parts LH (Shown)
22	LVB25776	1	Fender Kit	Complete Goods ORDER RE270320
23	AL180330	2	Fender	LGTH = 1280 mm, Use W/ 12.5/80-18, 11.2-24 and 12.4-24 Inch Tires
23	AL180327	1	Fender	LGTH = 1440 mm, Use W/ 13.6-24 Inch Tires

Front Fender Mounting Brackets and Hardware W/O Loader, Attachment
