Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Dual Mid-Mount SCV, W/ Joy Stick, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	4	Flange Nut	M10
2	14M7298	5	Flange Nut	M8
3	14M7396	2	Lock Nut	M8
4	19M7398	2	Cap Screw	M8 X 90
5	19M7785	2	Screw	M10 X 25
6	19M7786	4	Screw	M10 X 30
7	19M7801	1	Screw	M8 X 60
8	19M7866	5	Screw	M8 X 20
9	19M7867	4	Screw	M8 X 25
10	19M7868	3	Screw	M8 X 30
11	19M7913	1	Screw	M8 X 90
12	24M7055	2	Washer	8.400 X 16 X 1.600 mm
13	24M7207	1	Washer	8.400 X 24 X 2 mm
14	38H1416	4	Fitting	-
15	38H5004	4	Adapter Fitting	-
16	51M7045	4	O-Ring	19.300 X 2.200 mm
17	T77932	4	O-Ring	-
18	38H5005	1	Adapter Fitting	-
19	51M7047	4	O-Ring	23.600 X 2.900 mm
20	T77858	4	O-Ring	-
21	38H5019	1	Elbow Fitting	-
22	L208072	2	Retainer	-
23	L209039	2	Pin	-
24	L76801	2	Grommet	-
25	R105388	1	Tie Band	-
26	R244801	3	Spacer	-
27	SJ17609	1	Fitting	-
28	SJ18682	1	Oil Line	Supply, Mid SCV to Rear SCV
29	SJ18683	1	Oil Line	Hitvh Valve to Mid SCV
30	SJ22456	1	Multi-Functional Controller	-
31	L208076	1	Housing	-
32	SJ22008	1	Control Lever	-
33	SJ24762	1	Oil Line	Return, Rear SCV to Mid SCV
34	L208624	1	Boot	-
35	19M9730	1	Screw	M6 X 45
36	SU39360	1	Handle	RH
37	SU39361	1	Handle	LH
38	37M7435	3	Screw	-
39	21M7325	2	Screw	M5 X 30
40	SU42578	1	Bracket	-
41	SJ25942	1	Bracket	-
42	SJ24783	1	Selective Control Valve	-
43	SJ23162	1	Oil Line	Boom Extend ORDER SJ34246
43	SJ34246	1	Oil Line	-
44	SJ23163	1	Oil Line	Boom Retract ORDER SJ34249
44	SJ34249	1	Oil Line	-
45	SJ23164	1	Oil Line	Bucket Extend ORDER SJ34250
45	SJ34250	1	Oil Line	-
46	SJ23165	1	Oil Line	Bucket Retract ORDER SJ34253
46	SJ34253	1	Oil Line	-
47	SJ31370	2	Push Pull Cable	LGTH = 1040 mm, SUB FOR SJ23512
48	SJ31372	2	Push Pull Cable	LGTH = 930 mm, SUB FOR SJ23513
49	SU303970	1	Boot	-
50	SU32032	1	Bracket	-
51	SU32033	1	Cover	Joystick
52	SU33213	1	Bracket	-
53	SU33692	1	Support	-
54	SU36351	1	Shield	-
55	SU40465	1	Plate	-
56	T77857	4	O-Ring	-
57	T78716	4	Nut	-
58	W31909	1	Instruction Plate	Control Lever Instructions
59	W47663	4	Clamp	-
60	38H5116	1	Tee Fitting	-
61	SJ20188	1	Oil Line	Return, Mid SCV to Rear SCV
62	SU41640	1	Label	Mid SCV
63	SU41707	1	Plate	-
64	BSJ10109	1	Selective Control Valve	-

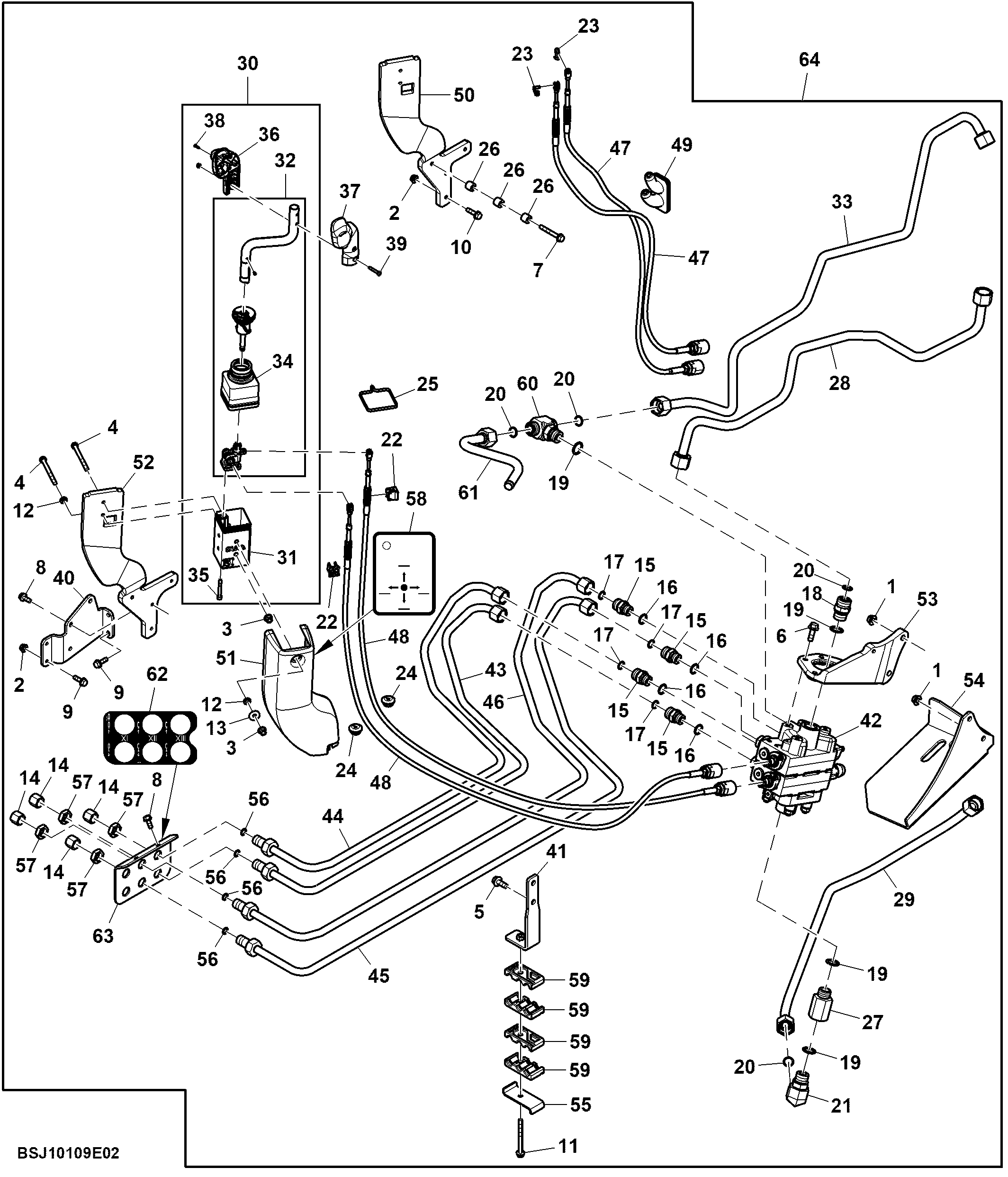

Dual Mid-Mount SCV, W/ Joy Stick, Attachment
