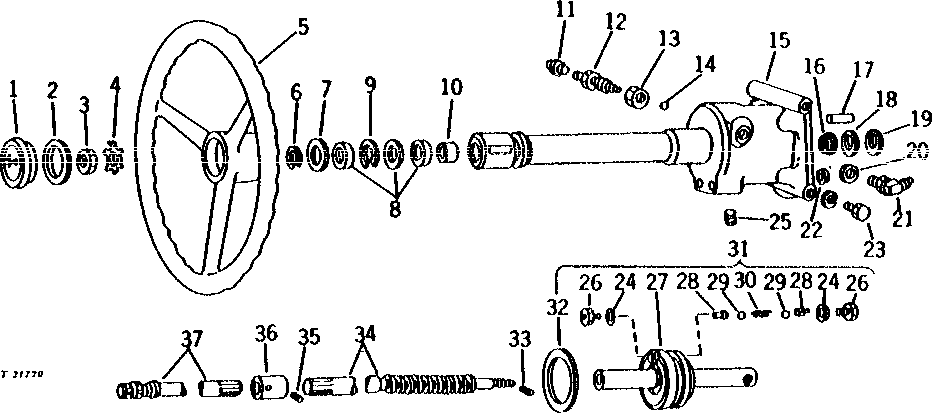

STEERING PISTON AND CYLINDER (SERIAL NO. -238502) [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	(SUB FOR R45792, R47998 OR AL118173)
2	-	1	Part 2	(SUB FOR B3690R, THIS APPLICATION) ( R50631, NO LONGER AVAILABLE)
3	14H904	1	Nut	3/4"
4	R71650	1	LOCK WASHER	(SUB FOR T17148, THIS APPLICATION)
5	AR78405	1	Steering Wheel	(SUB FOR T22875, THIS APPLICATION)
6	B169R	1	SNAP RING	-
7	R42629	1	WASHER	-
8	R32730	1	SEAL	(A) (SUB FOR AR34172, THIS APPLICATION)
9	R26933	1	SNAP RING	-
10	R27320	1	BUSHING	-
11	AR21969	1	Plug	-
12	R27299	1	SCREW	-
13	R27453	1	Nut	-
14	400R	1	Ball	STEEL, 1/4"
15	AR47290	1	CYLINDER	(MARKED R44846 OR R73816)
16	R27087	1	WASHER	-
17	R32186	2	DOWEL PIN	-
18	R26441	2	BACK-UP RING	(A)
19	A3606R	2	O-RING	(A)
20	R26448	1	O-Ring	(A)
21	AT35121	1	Elbow Fitting	90°, ADJUSTABLE, (SUB FOR AR26725)
22	AR67783	1	O-RING KIT	(A) STEERING VALVE CYLINDER TO COVER PACKING, (SUB FOR AR42009)
23	19H3239	1	Cap Screw	3/8" X 1-1/4"
23	19H2284	3	Cap Screw	3/8" X 7/8"
23	24H1305	4	Washer	13/32" X 13/16" X 0.065"
23	12H304	4	Lock Washer	3/8"
24	R26287	2	O-Ring	-
25	15H558	1	Pipe Plug	1/8"
26	R31202	2	VALVE	SYNCHRONIZING VALVE
27	AR30298	1	PISTON	(WITH ROD AND SNAP RING)
28	R31201	2	SHAFT	SYNCHRONIZING VALVE
29	H871R	2	Ball	STEEL, 3/16"
30	R11066	1	SPRING	(SUB FOR A4816R, THIS APPLICATION)
31	AR30297	1	PISTON	-
32	R40567	1	WASHER	(A) RECTANGULAR
33	11M7081	1	Cotter Pin	2.500 X 20 MM
34	R34125	1	SHAFT	-
35	34H282	1	Spring Pin	3/16" X 1"
36	R27319	1	SPLINED COUPLING	-
37	R73737	1	SHAFT	(SUB FOR R37426)
..	AR39585	1	KIT	STEERING PISTON, CYLINDER AND VALVE ASSEMBLY OVERHAUL
