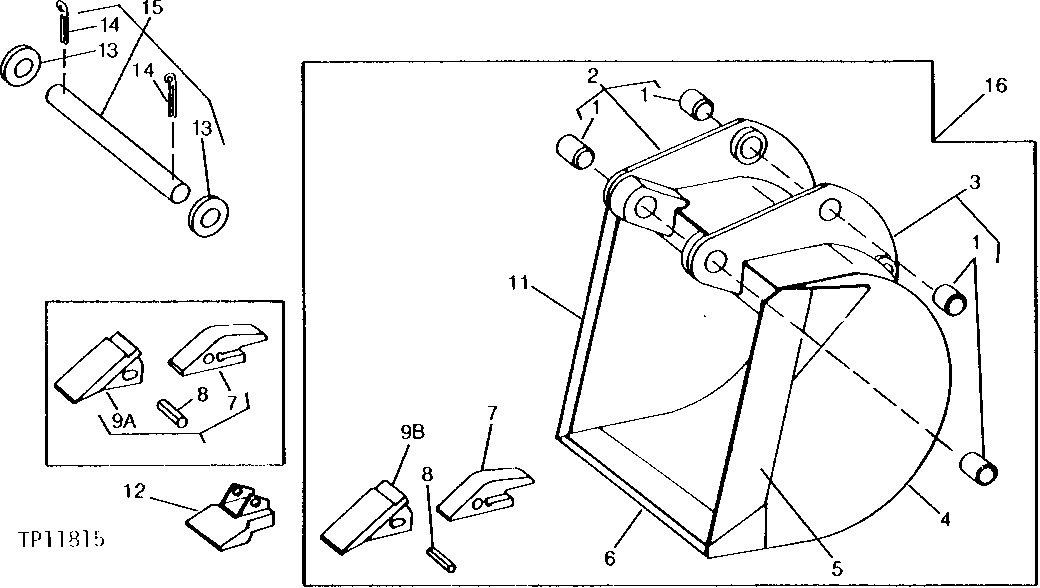

STANDARD BACKHOE BUCKETS 18, 24, 30, AND 36-INCH [02J07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U45351	6	Bushing	(SUB FOR U43808, THIS APPLICATION)
2	-	1	Part 2	PIVOT, L.H. ( AU42461 NO LONGER AVAILABLE)
3	-	1	Part 3	PIVOT, R.H. ( AU42460 N0 LONGER AVAILABLE)
4	-	1	Part 4	-
4	T56524	1	POINT	3 USED WITH 457 MM (18"), 4 USED WITH 609 MM (24"), 5 USED WITH 762 MM (30"), 6 USED WITH 914 MM (36") BUCKETS
5	-	1	Part 6	SIDE, R.H. (SUB FOR U43796) ( T35492 NO LONGER AVAILABLE)
6	T35488	1	CUTTING EDGE	FRONT FOR 457.2 MM (18") BUCKET, (SUB FOR U43791)
6	-	1	Part 8	FRONT FOR 609.6 MM (24") BUCKET, ( T35493 NO LONGER AVAILABLE) (SUB FOR U43799) (SUB T35499)
6	-	1	Part 9	FRONT FOR 762 MM (30") BUCKET ( T35496 NO LONGER AVAILABLE) (SUB FOR U43802) (SUB T35499)
6	T35499	1	DURA-MAX TM CUTTING EDGE	FRONT FOR 914.4 MM (36") BUCKET, (SUB FOR U43805)
7	U43792	1	Bucket Tooth Adapter	(3 USED WITH AT76968, 4 USED WITH AT76964 AND AT163254, 5 USED WITH AT76966, AT163255, AND AT163256, 6 USED WITH AT76967 AND AT163257 BUCKETS)
8	TF23P	1	Pin	(SUB FOR U13927) (3 USED WITH AT76968, 4 USED WITH AT76964 AND AT163254, 5 USED WITH AT76966, AT163254, AND AT163255, 6 USED WITH AT76967 AND AT163257 BUCKETS)
10	AU42457	1	TOOTH	3 USED WITH BU40481, 4 USED WITH BU40482, 5 USED WITH BU40483, 6 USED WITH BU40484 BUCKETS
11	-	1	Part 16	SIDE, L.H. ( T35490 NO LONGER AVAILABLE) (SUB FOR U43795)
12	T72548	1	TOOTH	(USED WITH ALL BUCKETS EXCEPT 12" AND 16" BUCKETS)
13	U43779	2	WASHER	-
14	11H277	1	COTTER PIN	1/2" X 4"
15	AU43088	2	PIN FASTENER	(SUB T126041, (2) U43779 AND (2) 11H277)
15	T126041	2	Pin Fastener	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
16	AT76968	1	BACKHOE BUCKET	457 MM (18") (SUB FOR BU40481) (SUB AT163254) (BACKHOE BUCKET)
16	AT76964	1	BACKHOE BUCKET	609 MM (24") (SUB FOR BU40482) (SUB AT163255) (BACKHOE BUCKET)
16	AT76966	1	BACKHOE BUCKET	762 MM (30") (SUB FOR BU40483) (SUB AT163256)
16	AT76967	1	BACKHOE BUCKET	914 MM (36") (SUB FOR BU40484) (SUB AT163257) (BACKHOE BUCKET)
16	AT163254	1	BACKHOE BUCKET	457 MM (18") HEAVY DUTY, (SUB FOR AT76968) (SUB AT197744)
16	AT163255	1	BACKHOE BUCKET	609 MM (24") HEAVY DUTY, (SUB FOR AT76964) (SUB AT197746)
16	AT163256	1	BACKHOE BUCKET	762 MM (30") HEAVY DUTY, (SUB FOR AT76966) (SUB AT197748)
16	AT163257	1	BACKHOE BUCKET	914 MM (36") HEAVY DUTY, (SUB FOR AT76967) (SUB AT197750)
9A	T23C	1	Tooth	(SUB FOR U43790) 3 USED WITH 457 MM (18"), 4 USED WITH 609 MM (24"), 5 USED WITH 762 MM (30"), 6 USED WITH 914 MM (36") BUCKETS
9B	TF23	1	TOOTH	3 USED WITH AT76968, 4 USED WITH AT76964 AND AT163254, 5 USED WITH AT76966, AT163254, AND AT163255, 6 USED WITH AT76967 AND AT163257 BUCKETS
