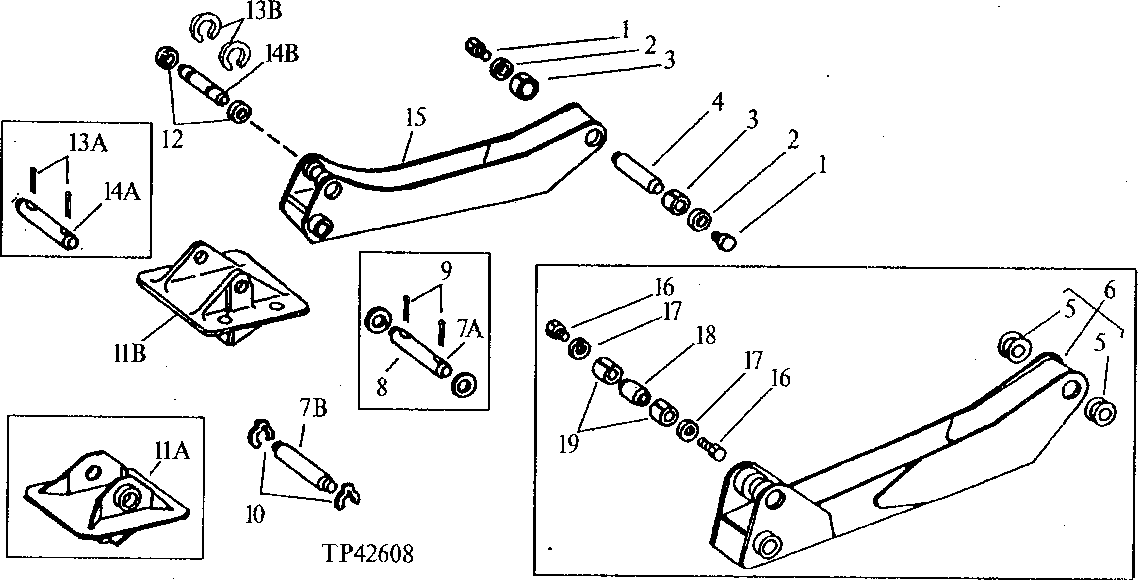

STABILIZER AND FOOT (TRACTOR SERIAL NO. -238567) [02H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2717	2	Cap Screw	3/4" X 1-3/4"
2	T35565	2	SPACER	-
3	T34188	2	SLEEVE	-
4	U44048	1	PIN FASTENER	-
5	U43808	2	BUSHING	-
6	AU42565	1	STABILIZER	(SUB T70729, (2) 11H277, (2) U43779 AND T50718)
8	24H1595	2	Washer	(SUB FOR U44051)
9	11H270	2	Cotter Pin	1/2" X 3"
10	T59457	2	SNAP RING	-
12	U43779	2	WASHER	(USE WHEN T50720 HAS BEEN INSTALLED AS A REPLACEMENT PART)
15	T70729	1	STABILIZER	(SUB FOR T50720) (USED WHEN AU42565 HAS BEEN REPLACED)
16	19H2431	2	CAP SCREW	(USE WITH AU42565) HS, SAE 8, 3/4" X 2-1/4"
17	T35565	2	SPACER	(USED WITH AU42565)
18	U45706	1	PIN FASTENER	(USED WITH AU42565)
19	U43777	2	TAPERED SLEEVE	(USED WITH AU42565)
7A	U44050	1	PIN	-
7B	T59460	1	PIN FASTENER	-
11A	AU42573	1	STABILIZER	(SUB T56924)
11B	T56924	1	STABILIZER FOOT	-
13A	11H277	2	COTTER PIN	1/2" X 4", (USE WITH T50718)
13B	T41471	2	SNAP RING	-
14A	-	1	Part 17	( T50718 NO LONGER AVAILABLE) (USE WHEN T50720 HAS BEEN INSTALLED, (SUB T143350 AND (2) T41471)
14B	T143350	1	Pin Fastener	-

STABILIZER AND FOOT (TRACTOR SERIAL NO. -238567) [02H17]
