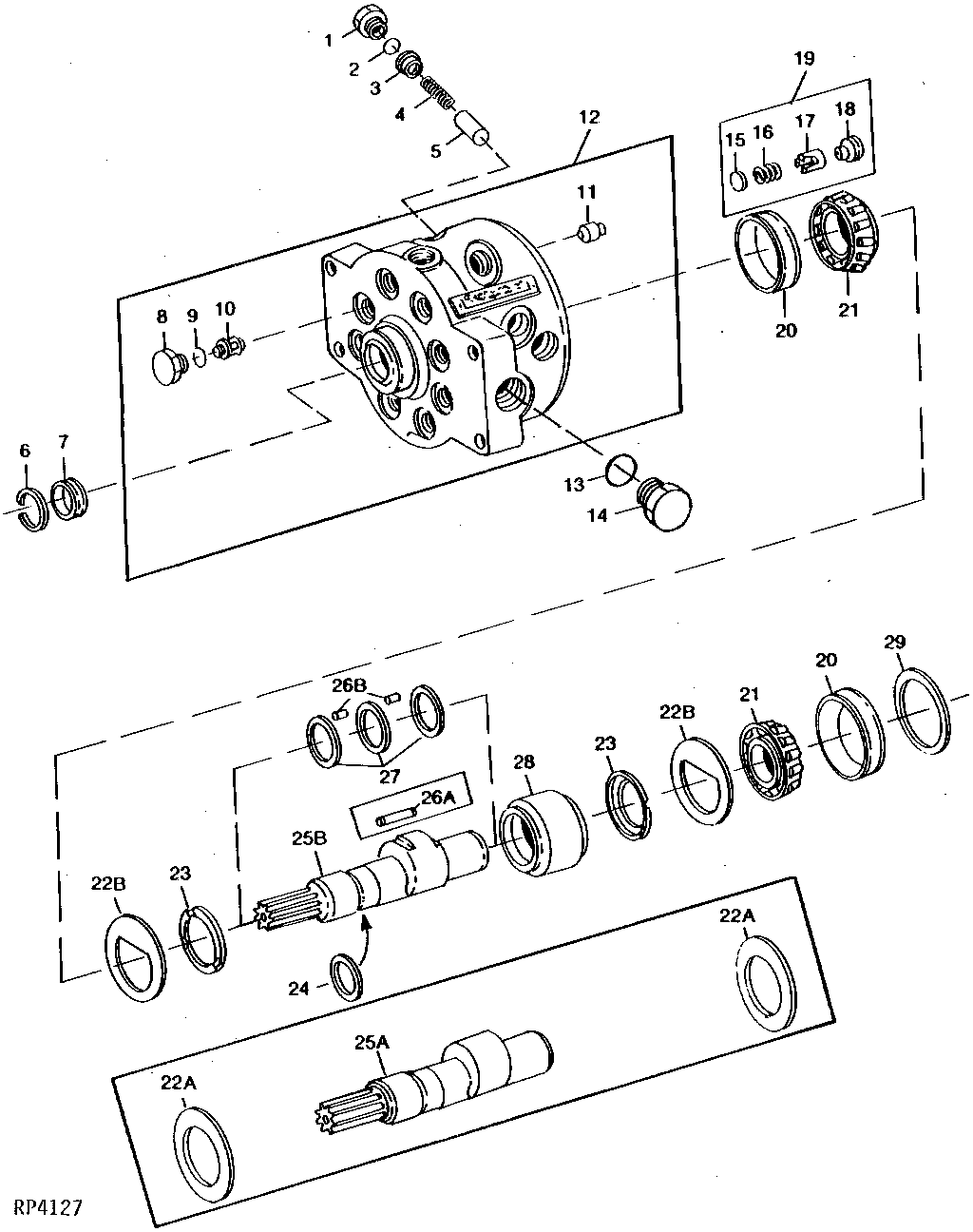

SERIALIZED REPLACEMENT MID-MOUNTED HYDRAULIC PUMP 50 CM3 (3 IN.3) - MODEL GJ1 [02F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	8	Fitting	-
2	R56463	8	O-Ring	-
3	AR101236	1	SHIELD	(SET OF 8)
4	AR76762	1	SPRING	(SET OF 8)
5	R27150	8	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R78293	8	FITTING	-
9	R27149	8	O-Ring	-
10	AR53301	8	VALVE	(INLET)
11	R105583	8	Valve Seat Insert	-
12	RE11809	1	HOUSING	(MODEL PA1) (MARKED R75919)
13	U12547	1	O-Ring	(SUB FOR F3171R)
14	R27175	1	Drain Plug	-
15	R49297	8	DISK	-
16	R39228	8	SPRING	-
17	R48738	8	GUIDE	-
18	R83508	8	Stop	(SUB FOR R72886)
19	RE23382	8	Valve	(OUTLET) (SUB FOR AR96613)
20	JD8223	2	Bearing Cup	-
21	JD8192	2	BEARING CONE	-
23	R72507	2	Thrust Washer	-
24	R77611	1	SEALING WASHER	(SEALING) (SUB FOR RE11777)
27	R85557	3	WASHER	-
28	R80558	1	Bearing Race	(SUB FOR R72506)
29	R27478	1	SHIM	0.15MM (.006")
29	R27479	1	SHIM	0.25MM (.010")
..	AR102653	1	HYDRAULIC PUMP	(SUB FOR AR47533)
22A	R77903	2	WASHER	(SUB FOR R45425)
22B	R79151	2	Lock Washer	(USE WITH R79152)
25A	R71598	1	SHAFT	(SUB R79152) (ALSO ORDER (2) R79151)
25B	R79152	1	SHAFT	-
26A	R45422	25	NEEDLE ROLLER	(SUB (50) R116713) (ALSO ORDER (3) R85557)
26B	R116713	50	Needle Roller	(SUB FOR R85558)

SERIALIZED REPLACEMENT MID-MOUNTED HYDRAULIC PUMP 50 CM3 (3 IN.3) - MODEL GJ1 [02F19]
