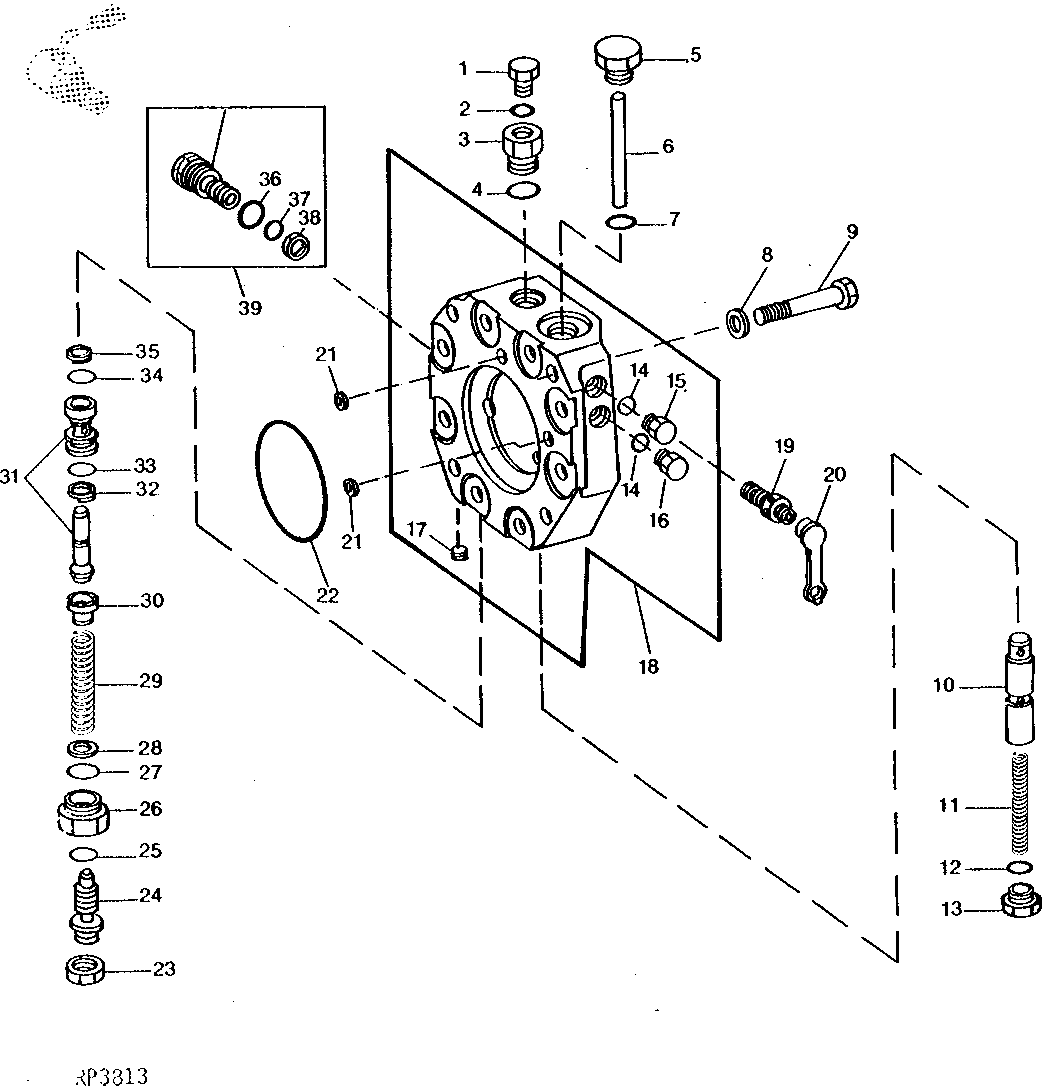

SERIALIZED REPLACEMENT HYDRAULIC PUMP STROKE CONTROL VALVE 100 CM3 (6 IN.3) (SERIAL NO. 383750- ) [01I05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27218	1	Fitting Plug	-
2	R26448	1	O-Ring	-
3	R70617	1	Pipe Plug	-
4	R26906	1	O-Ring	-
5	R75642	1	Drain Plug	-
6	R75564	1	Pin	-
7	R56751	1	O-Ring	-
8	T20168	4	Washer	-
9	R68621	4	CAP SCREW	-
10	R70867	1	Valve	-
11	R70868	1	Spring	-
12	R26375	1	O-Ring	-
13	R73736	1	Fitting Plug	-
14	R26287	2	O-Ring	(USE WITH R72633)
14	R26448	2	O-Ring	(USE WITH R71977, R77713 OR R79733)
15	R27216	1	DRAIN PLUG	(USE WITH R72633)
15	R75376	1	Drain Plug	(USE WITH R71977, R77713 OR R79733) (SUB RE190805 AND R77175)
16	R27216	1	DRAIN PLUG	(USE WITH R72633)
16	R75376	1	Drain Plug	(USE WITH R71977, R77713 OR R79733)
17	15H560	1	Pipe Plug	1/16"
18	RE15821	1	HOUSING	(MARKED R79733) (ALSO ORDER RE190805 AND R77175) (SUB FOR AR96409 AND RE12471)
18	AR96409	1	HOUSING	(MARKED R72633) (SUB RE15821) (ALSO ORDER RE190805 AND R77175)
18	RE12471	1	HOUSING	(MARKED R71977 OR R77713) (SUB RE15821) (ALSO ORDER RE190805 AND R77175) (SUB FOR AR96409)
19	RE190805	1	Diagnostic Coupling	(USE WITH R71977, R77713 OR R79733) (SUB FOR AR102587 OR RE12187)
20	R77175	1	Cover	-
21	R56755	2	WASHER	-
22	R56759	1	O-RING	-
23	14H1021	1	NUT	7/16"
24	AR52254	1	SET SCREW	-
25	R28782	1	O-Ring	-
26	R55907	1	FITTING	-
27	U12547	1	O-Ring	(SUB FOR F3171R)
28	R48808	1	Washer	-
29	R55908	1	SPRING	(SUB FOR R71564)
30	R71563	1	GUIDE	-
31	RE10712	1	Control Valve	-
32	R41057	1	BACK-UP RING	-
33	R27166	1	O-Ring	-
34	R27564	1	O-Ring	-
35	R75938	1	Thrust Washer	-
36	R26375	1	O-Ring	-
37	T40308	1	O-Ring	-
38	T57374	1	Back-Up Ring	-
39	AR90378	1	PLUG	(LESS ELECTRIC DESTROKE SOLENOID)
