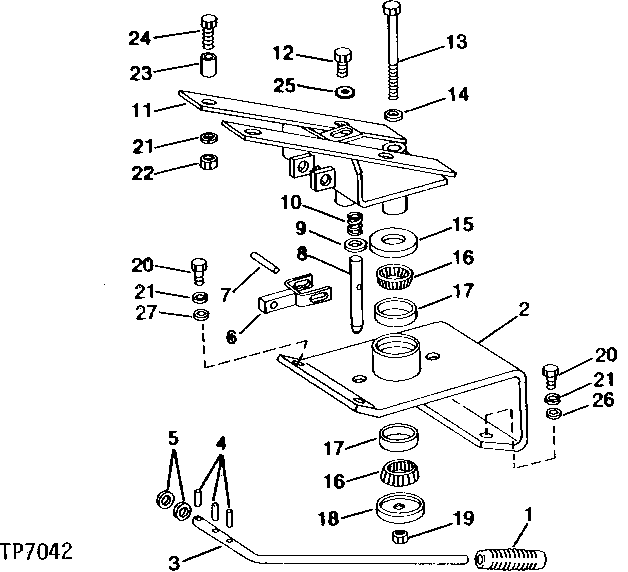

SEAT SWIVEL ASSEMBLY (WITHOUT PARKING BRAKE) [02C04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U43703	1	GRIP	-
2	AU41135	1	BRACKET	-
2	U42042	1	BUSHING	-
3	T34409	1	PIN FASTENER	-
4	34H295	3	Spring Pin	7/32" X 7/8"
5	24H1362	2	Washer	41/64" X 1" X 0.075"
6	AU41137	1	YOKE	-
7	34H290	1	SPRING PIN	3/16" X 2"
8	U41717	1	PIN FASTENER	-
9	24H1255	2	Washer	11/16" X 1-1/4" X 0.060"
10	N31762	1	SPRING	-
11	AU41136	1	BRACKET	(ALSO ORDER (2) 19H3217 AND (2) T14040) PRIOR TO SERIAL NUMBER 227539
12	19H2676	4	Cap Screw	3/8" X 1"
12	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
13	19H2211	1	Cap Screw	1/2" X 5"
14	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
15	U41719	1	SPACER	UPPER
16	JD8187	2	Bearing Cone	-
17	JD8225	2	Bearing Cup	-
18	U41718	1	SPACER	LOWER
19	BP12214	1	Lock Nut	(SUB FOR U12622)
20	19H2676	4	Cap Screw	3/8" X 1"
21	12H304	8	Lock Washer	3/8"
22	14H812	4	NUT	3/8"
23	T14040	2	Bushing	-
24	19H3217	2	Cap Screw	HS, SAE 8, 3/8" X 1-3/4"
25	24H1305	1	Washer	13/32" X 13/16" X .060"
26	24H1308	2	Washer	13/32" X 1" X .134"
27	24H1864	2	Washer	13/32" X 3/4" X .105"

SEAT SWIVEL ASSEMBLY (WITHOUT PARKING BRAKE) [02C04]
