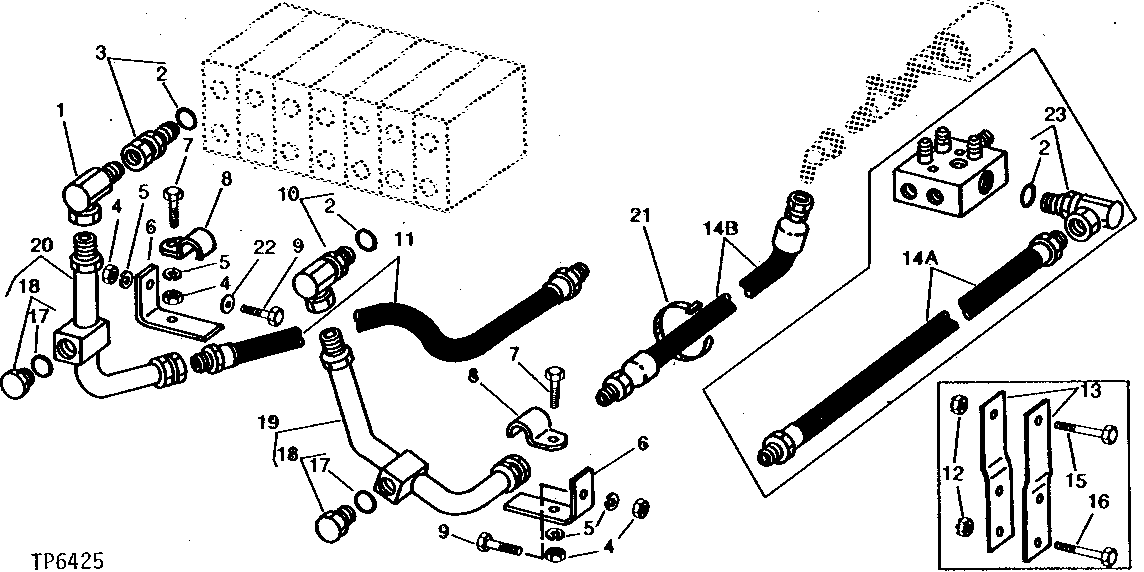

OIL LINES AND FITTINGS (BACKHOE PRESSURE AND RETURN CIRCUITS) [02I12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR29459	1	UNION FITTING	90°
2	R29936	2	O-Ring	-
3	AU13375	1	FITTING	-
4	14H812	4	NUT	3/8"
5	12H304	4	Lock Washer	3/8"
6	U44032	2	ANGLE	-
7	19H3239	2	Cap Screw	3/8" X 1-1/4"
8	U15939	2	Clamp	(SUB FOR U13667)
9	19H2676	1	Cap Screw	3/8" X 1"
10	AU42452	1	ADAPTER FITTING	90°
11	AT37672	1	HYDRAULIC HOSE - FABRICATE	1" X 1 270 MM (50") X 1", (SUB FOR AU42577, THIS APPLICATION)
12	T11234	3	Lock Nut	-
13	U46580	2	CLAMP	-
15	19H2732	2	Cap Screw	3/8" X 2-3/4"
16	19H1726	1	Cap Screw	3/8" X 2-1/4"
17	U12547	2	O-Ring	-
18	U13982	2	FITTING	-
19	AU42569	1	OIL LINE	-
20	AU42570	1	TUBE	-
21	H77698	1	Tie Band	(SUB FOR AT30417 AND T44946)
22	24H1305	2	Washer	13/32" X 13/16" X 0.065"
23	AU42452	1	ADAPTER FITTING	90°
14A	AU42578	1	HYDRAULIC HOSE	(SUB FOR AT47134 AND (2) H77698)
14A	AT47134	1	HYDRAULIC HOSE - FABRICATE	1" X 2 261 MM (89") X 1", (ROUTE ABOVE REAR AXLE)
14B	AT60350	1	HYDRAULIC HOSE - FABRICATE	1-5/16" X 2 184 MM (86") X 1"
