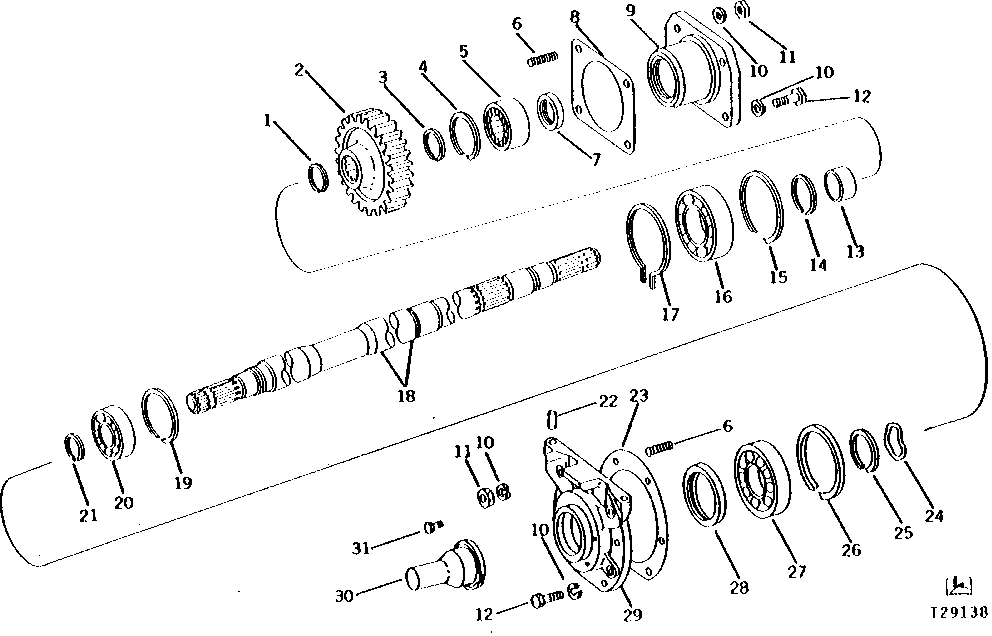

MID-MOUNTED PUMP DRIVE GEAR AND SHAFT (SERIAL NO. -161722) [01F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33325	1	Snap Ring	-
2	R33336	1	GEAR	(31 TEETH)
3	R27000	1	SNAP RING	-
4	F2367R	1	SNAP RING	-
5	JD8725	1	CYLINDRICAL ROLLER BEARING	-
6	R32101	4	STUD	1/2" X 1-3/4"
7	R33338	1	SEAL	-
8	R33236	1	GASKET	-
9	AR33998	1	BEARING HOUSING W/O BEARING	FRONT BEARING, (MARKED R33212)
10	12H301	10	Lock Washer	1/2"
11	14H1040	4	Nut	1/2"
12	19H2993	6	Cap Screw	1/2" X 1-1/2"
13	R34328	1	Bushing	-
14	R36295	1	Snap Ring	-
15	R33321	1	SNAP RING	-
16	JD8537	1	Ball Bearing	-
17	R33322	1	SNAP RING	-
18	R34165	1	SHAFT	-
19	B190R	1	SNAP RING	-
20	JD9345	1	Ball Bearing	-
21	A364R	1	Snap Ring	-
22	34H348	2	Spring Pin	3/8" X 1"
23	R33337	1	GASKET	-
24	R38219	1	THRUST WASHER	-
25	F1334R	1	SNAP RING	-
26	C1919R	1	SNAP RING	-
27	JD9320	1	Ball Bearing	-
28	AT344T	1	SEAL	(USE WITH QUILL MARKED R33487)
28	AR55216	1	SEAL	(USE WITH QUILL MARKED R50298)
29	AR32440	1	BEARING HOUSING W/O BEARING	REAR BEARING, (MARKED R33487) (SUB AR54487 AND AR55216)
29	AR54487	1	BEARING HOUSING W/O BEARING	REAR BEARING, (MARKED R50298)
30	AR26782	1	GUARD	-
31	R27329	2	Screw	-
