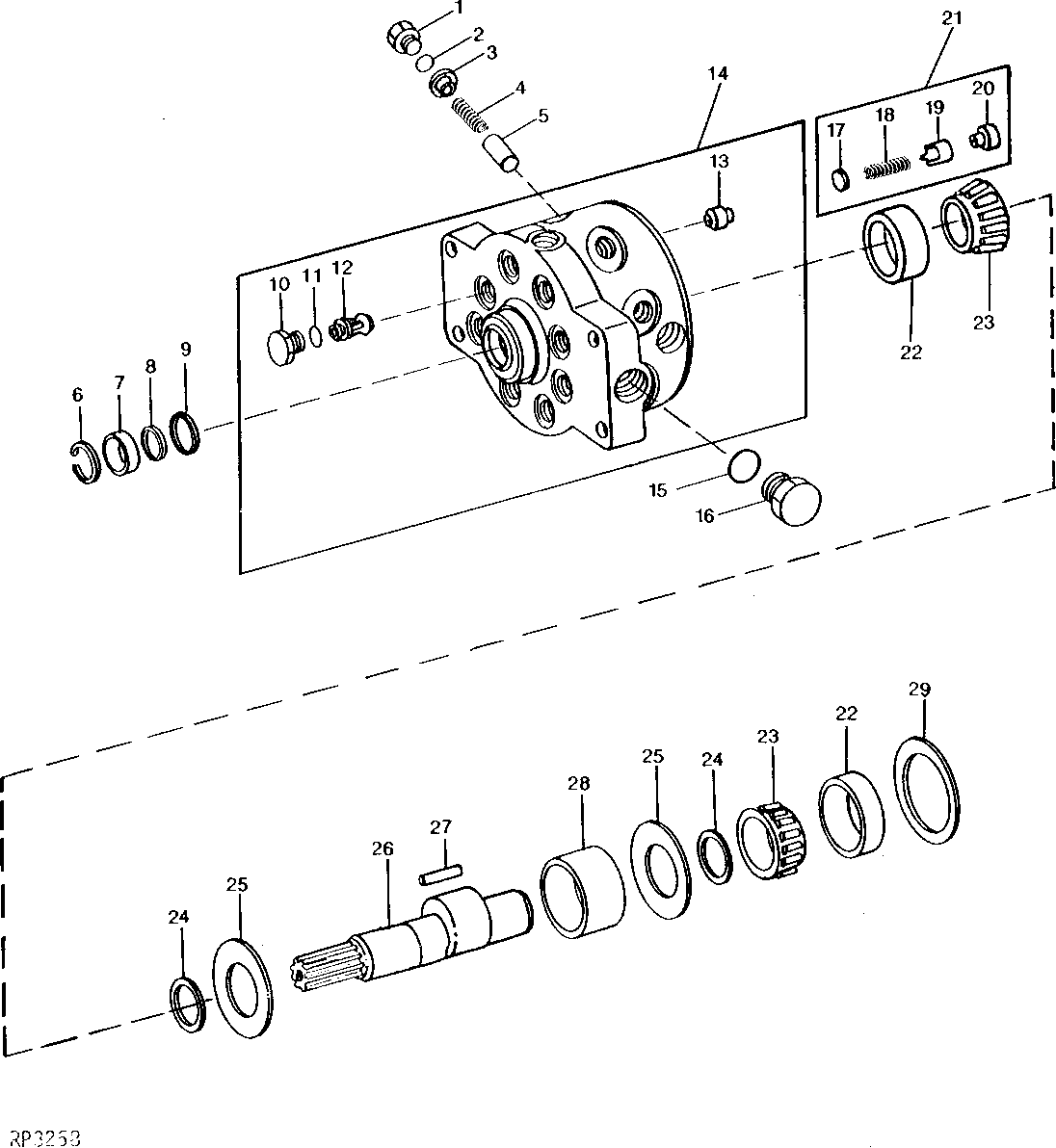

MID-MOUNTED HYDRAULIC PUMP (NON-SERIALIZED) 49 CM3 (3 IN.3) (SERIAL NO. -161722) [02F15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	8	Fitting	-
2	R495R	8	O-Ring	(SUB (8) R56463 AND AR101236)
2	R56463	8	O-Ring	(SUB FOR R495R, THIS APPLICATION) (ALSO ORDER AR101236)
3	AR101236	1	SHIELD	(SET OF 8) (SUB FOR R56749)
4	AR76762	1	SPRING	(SET OF 8) (SUB FOR AR33821 OR AR55186)
5	R27150	8	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR40398 OR AR52224)
8	R56753	1	SHIM	-
9	R39729	1	O-RING	-
10	R78293	8	FITTING	(SUB FOR R44823)
11	R27149	8	O-Ring	-
12	AR53301	8	VALVE	(INLET) (SUB FOR AR26758)
13	R105583	8	Valve Seat Insert	-
14	AR48865	1	HOUSING	(MARKED R44818) (SUB AR102653) (ALSO ORDER R27474 AND R26906)
15	U12547	1	O-Ring	(SUB FOR F3171R)
16	R27175	1	Drain Plug	-
17	R49297	8	DISK	(SUB FOR R39074)
18	R39228	8	SPRING	-
19	R48738	8	GUIDE	(SUB FOR R39174)
20	R83508	8	Stop	(SUB FOR R39175, R49298 OR R72886)
21	RE23382	8	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
22	JD8223	2	Bearing Cup	-
23	JD8192	2	BEARING CONE	-
24	R34349	2	WASHER	-
25	R60732	2	WASHER	(SUB FOR R42467)
26	R34348	1	SHAFT	-
27	R27145	36	NEEDLE ROLLER	-
28	R45874	1	BEARING RACE	-
29	R27478	2	SHIM	0.15MM (.006")
29	R27479	2	SHIM	0.25MM (.010")
..	AR47533	1	HYDRAULIC PUMP	(SUB AR102653) (ALSO ORDER R27474 AND R26906) (SUB FOR AR47532)

MID-MOUNTED HYDRAULIC PUMP (NON-SERIALIZED) 49 CM3 (3 IN.3) (SERIAL NO. -161722) [02F15]
