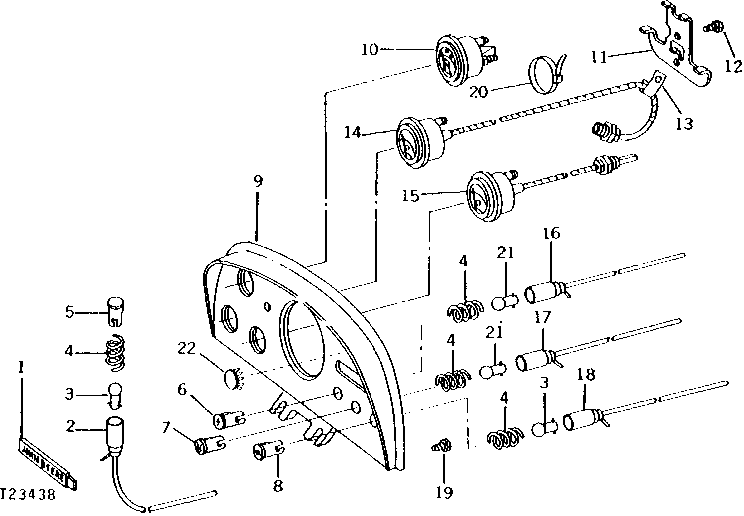

INSTRUMENT PANEL, INSTRUMENTS, AND INDICATOR LIGHTS [02C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR45440	1	IDENTIFICATION PLATE	-
2	AT44165	1	WIRING LEAD	HYDRAULIC FILTER
3	AR55694	1	BULB	ENGINE OIL PRESSURE INDICATOR (COLORED RED) (SUB FOR R30379)
3	AR55694	1	BULB	HYDRAULIC FILTER RESTRICTION INDICATOR (COLORED RED) (SUB FOR R30379)
4	R30378	4	Spring	-
5	AR45446	1	LENS	HYDRAULIC FILTER RESTRICTION INDICATOR, WITH HOUSING
6	AT48673	1	LENS	ALTERNATOR INDICATOR, WITH HOUSING, (SUB FOR AR45438)
7	AR45439	1	LENS	(SUB FOR AR66761) AIR CLEANER RESTRICTION INDICATOR, WITH HOUSING
8	AT48674	1	LENS	ENGINE OIL PRESSURE INDICATOR, WITH HOUSING, (SUB FOR AR45437)
9	-	1	Part 10	(WHEN AR68199 IS NO LONGER AVAILABLE, SUB R56320)
9	R56320	1	INSTRUMENT PANEL	(WITHOUT PLUGS)
10	-	1	Part 12	(AR45436, USE IF AVAILABLE) (REFER TO II T133807)
11	R44198	1	CLAMP	-
12	37H41	1	SCREW	NO. 10 X 1"
12	37H98	1	SCREW	NO. 10 X 7/8"
13	B1986R	1	CLIP	-
14	AR46979	1	PYROMETER	TRANSMISSION OIL
15	AR48640	1	TEMPERATURE GAUGE	WATER
16	AT44165	1	WIRING LEAD	ALTERNATOR
17	AT44165	1	WIRING LEAD	AIR CLEANER FILTER
18	AT44165	1	WIRING LEAD	ENGINE OIL PRESSURE
19	37H42	2	SCREW	NO. 10 X 3/8"
20	R44302	2	Tie Band	-
21	AR50439	1	LAMP	AIR CLEANER FILTER RESTRICTION (COLORED AMBER)
21	AR50439	1	LAMP	ALTERNATOR (COLORED AMBER)
22	T16738	1	PLUG	-
22	T16738	2	PLUG	-

INSTRUMENT PANEL, INSTRUMENTS, AND INDICATOR LIGHTS [02C11]
