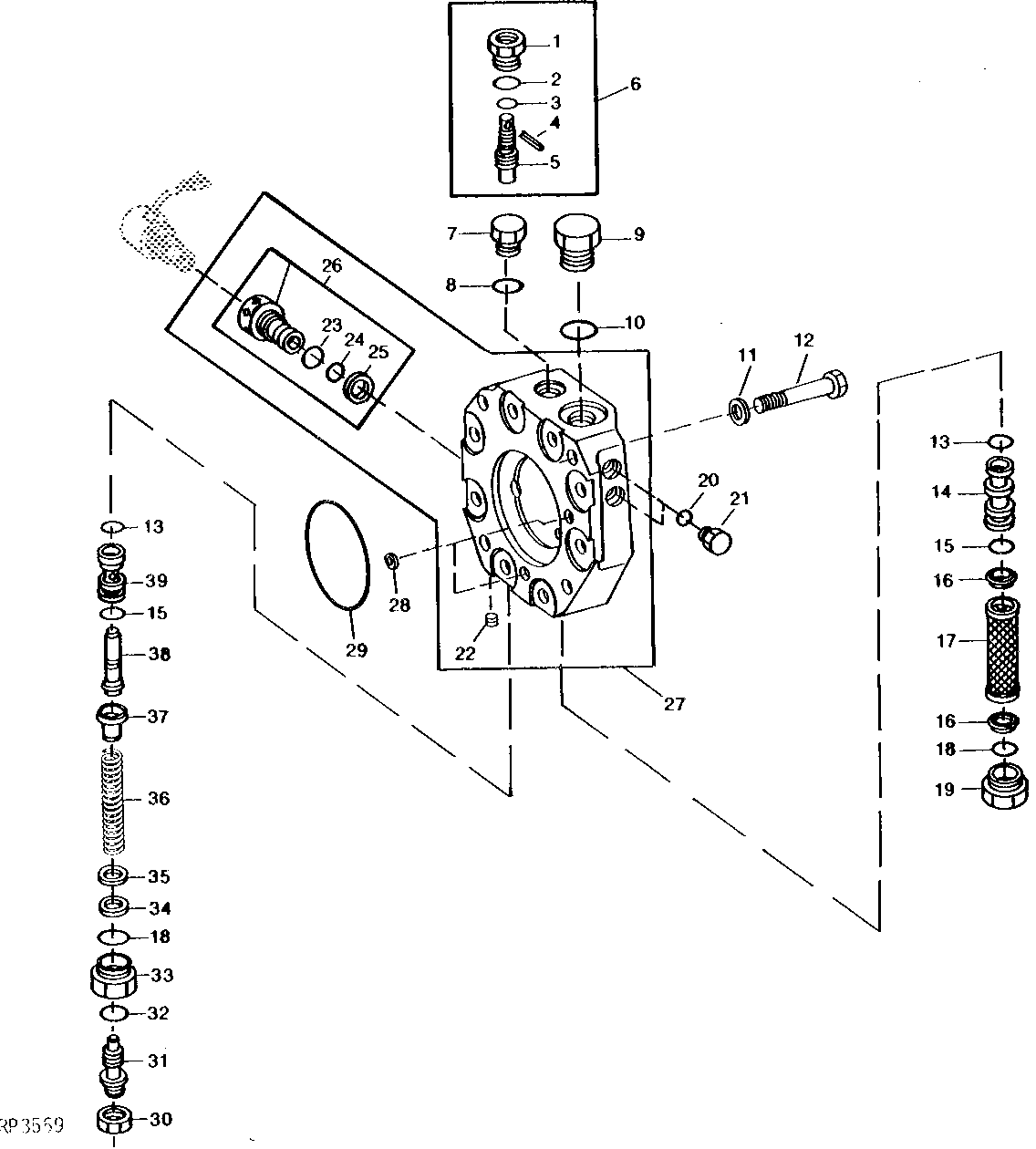

HYDRAULIC PUMP STROKE CONTROL VALVE (NON-SERIALIZED) 98 CM3 (6 IN.3) (SERIAL NO. 170667 - 182842) [01H23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27475	1	FITTING	-
2	R26448	1	O-Ring	-
3	A4365R	1	O-Ring	-
4	34H254	1	Spring Pin	1/8" X 1-1/2"
5	R27171	1	SCREW	-
6	AR33249	1	SCREW	(MANUAL DESTROKE) (OPTIONAL)
7	R27218	1	Fitting Plug	(LESS MANUAL DESTROKE)
8	R26448	1	O-Ring	(LESS MANUAL DESTROKE)
9	R27474	1	Drain Plug	-
10	R26906	1	O-Ring	-
11	T20168	4	Washer	-
12	R68621	4	CAP SCREW	(SUB FOR R51953) (ALSO ORDER T20168)
13	R27564	2	O-Ring	-
14	R70335	1	SLEEVE	(SUB FOR R53693)
15	R27166	2	O-Ring	-
16	R27174	2	PACKING	-
17	R27173	1	FILTER ELEMENT	-
18	U12547	2	O-Ring	(SUB FOR (2) F3171R)
19	R27175	1	Drain Plug	-
20	R26287	2	O-Ring	-
21	R27216	2	DRAIN PLUG	-
22	15H560	1	Pipe Plug	1/16", (USE WITH R51913)
23	R26375	1	O-Ring	(USE WITH R51913)
24	T40308	1	O-Ring	(USE WITH R51913)
25	T57374	1	Back-Up Ring	(USE WITH R51913)
26	AR90378	1	PLUG	(USE WITH R51913) (SUB FOR AR52495)
27	RE13612	1	HOUSING	(MARKED R51913 OR R54194) (SUB FOR AR56771)
28	R56755	2	WASHER	(SUB FOR A4847R)
29	R56759	1	O-RING	(SUB FOR A4728R)
30	14H1021	1	NUT	7/16"
31	AR52254	1	SET SCREW	(SUB FOR AR51929, THIS APPLICATION)
32	R28782	1	O-Ring	-
33	R55907	1	FITTING	-
34	R42260	1	WASHER	-
35	R48808	1	Washer	-
36	R55908	1	SPRING	-
37	R71563	1	GUIDE	(SUB FOR R55909)
38	R70559	1	CONTROL VALVE	(SUB RE10712, R27166 AND R41057) (SUB FOR R27472 OR R65194)
39	R69262	1	SLEEVE	(SUB RE10712, R27166 AND R41057) (SUB FOR R27471 OR R65192)

HYDRAULIC PUMP STROKE CONTROL VALVE (NON-SERIALIZED) 98 CM3 (6 IN.3) (SERIAL NO. 170667 - 182842) [01H23]
