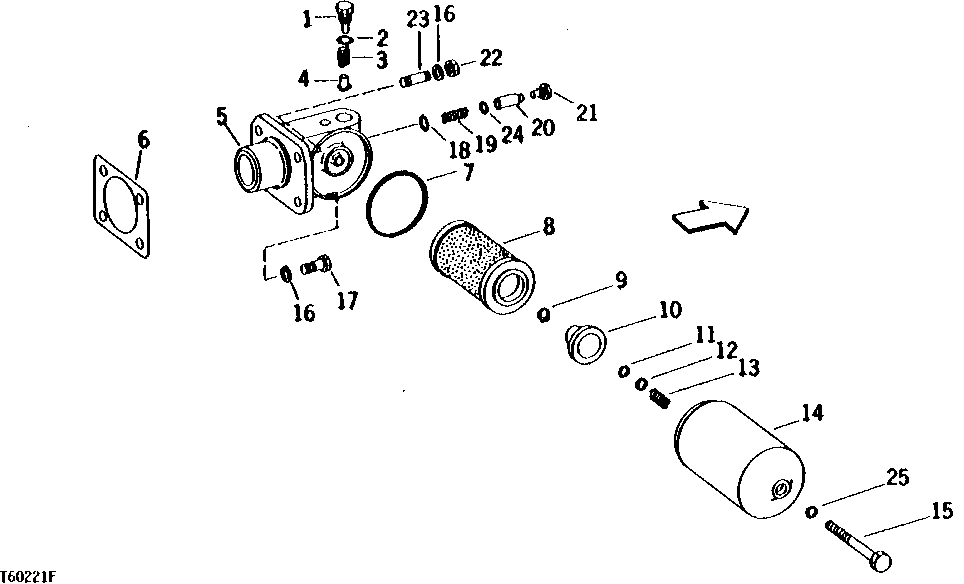

HYDRAULIC OIL FILTER RELIEF VALVE HOUSING (SERIAL NO. 161723- ) [02G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT26171	1	PLUG	-
2	U12547	1	O-Ring	(SUB FOR F3171R)
3	R30776	1	SPRING	-
4	R40976	1	VALVE	-
5	AT37574	1	HOUSING	(MARKED T38749)
6	R33236	1	GASKET	-
7	R34733	1	WASHER	-
8	AR75603	1	FILTER ELEMENT	(SUB FOR AT34670 AND AR75601)
9	R32507	1	Snap Ring	-
10	R28593	1	RETAINER	(USE WITH R394R ROUND CROSS-SECTION O-RING) (USE WITH R394R) (SUB R65892 AND F2741R)
10	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
11	R394R	1	O-Ring	(USE WITH R28593) (RETAINER)
11	F2741R	1	Packing	(USE WITH R65892) (RETAINER)
12	24H1227	1	Washer	17/32" X 13/16" X 0.060"
13	R66064	1	SPRING	(SUB FOR H819R, THIS APPLICATION)
14	R63093	1	COVER	(SUB FOR R51654, THIS APPLICATION)
15	R82731	1	SCREW	(SUB FOR R54753)
16	12H301	4	Lock Washer	1/2"
17	19H2898	2	Cap Screw	1/2" X 1-1/4"
18	R26906	1	O-Ring	-
19	T27992	1	SPRING	-
20	R33162	1	VALVE	(SUB R57559 AND R33259)
20	R57559	1	VALVE	-
21	AT26172	1	PLUG	(NO LONGER AVAILABLE, ORDER R27474 AND T22850)
22	14H1040	2	Nut	1/2", (SUB FOR 14H809)
23	R32101	2	STUD	1/2" X 1-3/4"
24	R33259	1	O-Ring	-
25	R394R	1	O-Ring	-

HYDRAULIC OIL FILTER RELIEF VALVE HOUSING (SERIAL NO. 161723- ) [02G03]
