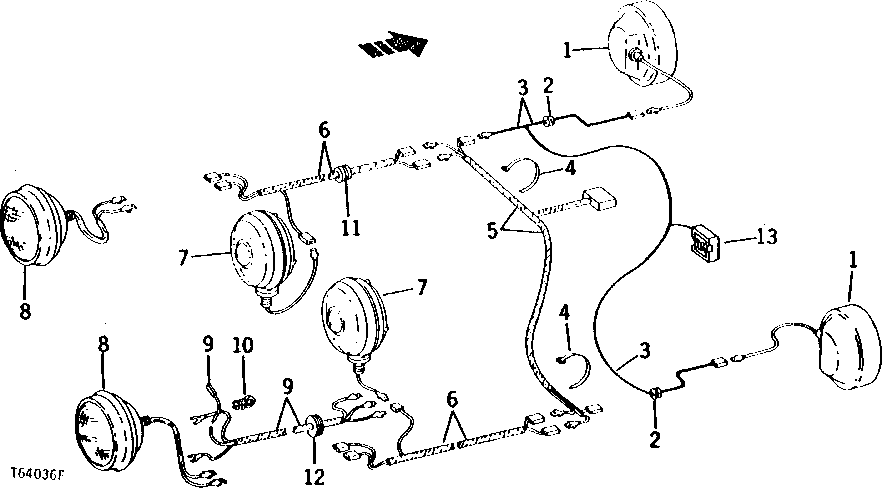

FRONT AND REAR LIGHT WIRING SYSTEM [02C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT20106	2	FLOODLAMP	-
2	R27583	4	Grommet	-
3	AT34198	1	WIRING LEAD	(FRONT LAMPS TO LIGHT HARNESS)
3	AT57259	1	WIRING HARNESS	FRONT TRACTOR LAMP
4	R44302	4	Tie Band	-
5	AT33037	1	WIRING HARNESS	(MAIN HARNESS TO LIGHT HARNESS)
5	AT57260	1	WIRING HARNESS	(MAIN HARNESS TO LIGHT HARNESS)
6	AT35226	1	WIRING HARNESS	(REAR LAMPS TO LIGHT HARNESS)
7	AH164498	1	LAMP	(SUB FOR AR38456 AND AT23467)
8	AT16288	2	FLOODLAMP	(A) (WITH CAB) (SUB AR77326)
8	-	2	Part 13	(A) (WITH CAB) ( AR77327 NO LONGER AVAILABLE) (SUB AR77326 AND AT280641)
8	AR77326	2	FLOODLAMP	(A) (WITH CAB)
8	AT32866	2	FLOODLAMP	COMBINATION FLOOD AND TAIL (WITHOUT CAB)
9	AT37420	2	WIRING HARNESS	REAR (WITH CAB)
9	AT61939	1	WIRING HARNESS	REAR (WITH CAB)
10	T61876	4	CLIP	(SUB FOR T37623) (WITH CAB)
11	A3411R	2	Grommet	-
12	R2579R	2	GROMMET	(SUB FOR T38626)
13	AT54892	1	CLIP	-
..	-	1	Part 20	(SUB AT61929) (INCLUDES ALL PARTS IDENTIFIED BY (A) ON THIS PAGE AND PAGE 70-10 AND ALL PARTS ON PAGES 70-4B, 70-5, 70-6, 70-7, 70-8A, 70-8B, 70-9 AND 75-3B) (NO LONGER AVAILABLE)
..	-	1	Part 21	(INCLUDES ALL PARTS IDENTIFIED BY (A) ON THIS PAGE AND PAGE 70-25 AND ALL PARTS ON PAGES 70-19B, 70-20, 70-21, 70-22, 70-23A, 70-23B, 70-24 AND 75-3B) ( AT61929 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)

FRONT AND REAR LIGHT WIRING SYSTEM [02C17]
