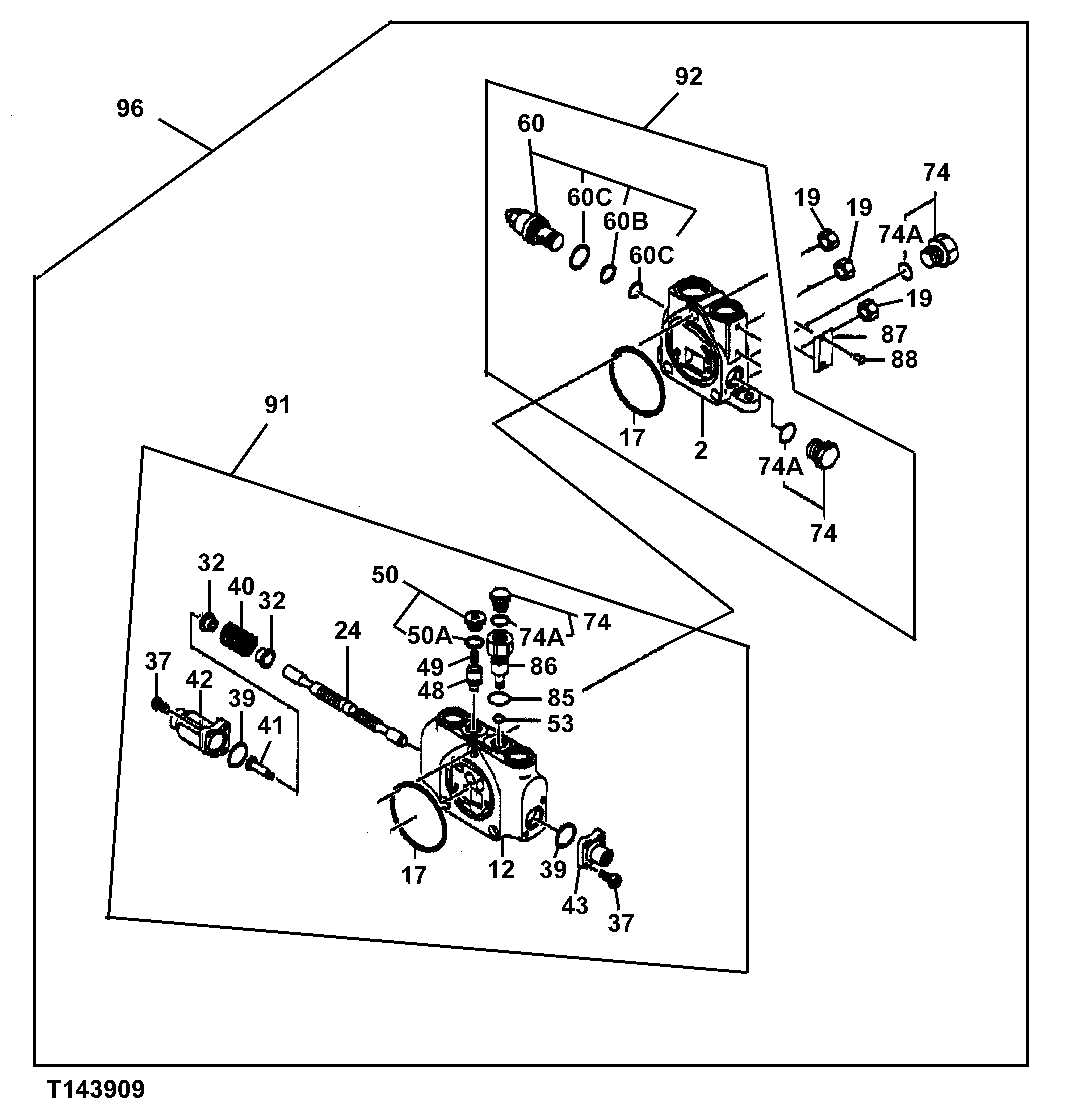

RIGHT PROPEL CONTROL VALVE AND ENDCAP

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-	1	Part 1	-
12	-	1	Part 2	-
17	0433401	2	O-Ring	SUB FOR AT251734
19	-	3	Part 4	-
24	-	1	Part 5	-
32	0433407	2	Guide	SUB FOR AT251736
37	19M8627	6	Screw	M6 X 20
39	0433411	2	O-Ring	SUB FOR AT251738
40	0476305	1	Spring	SUB FOR AT251758
41	0433413	1	Cap Screw	SUB FOR AT251739
42	0433414	1	Cover	SUB FOR AT251740
43	0433415	1	Cover	SUB FOR AT251741
48	0681701	1	Check Valve	SUB FOR AT251916
49	0433417	1	Spring	SUB FOR AT251742
50	0664404	1	Fitting Plug	SUB FOR AT251904
53	4506405	1	O-Ring	4.800 X 1.900 mm (0.189" X 0.075"), SUB FOR TH102655
60	-	1	Part 18	0734101 NLA
74	0433420	3	Fitting Plug	SUB FOR AT251743
85	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
86	0734201	1	Adapter Fitting	SUB FOR AT251934
87	-	1	Part 26	-
88	-	1	Part 27	-
91	0755201	1	Housing	RIGHT PROPEL
92	-	1	Part 29	ENDCAP, 0755202 NLA
96	-	1	Part 31	4447586 NO LONGER AVAILABLE, CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES
96	-	1	Part 30	4427490 NO LONGER AVAILABLE, CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES
50A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
60A	0976602	1	O-Ring	SUB FOR TH103574 OR AT264354 OR 4S00734
60B	0433513	1	Back-Up Ring	SUB FOR AT251748
60C	0637402	1	O-Ring	SUB FOR AT251797
74A	M800650	1	Packing	-

RIGHT PROPEL CONTROL VALVE AND ENDCAP
