OIL COOLER LINES AND MAIN CONTROL VALVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	( 4447586 NO LONGER AVAILABLE)
0	-	1	Part 1	( 4427490 NO LONGER AVAILABLE)
1	12M7066	4	Lock Washer	10 mm
1	19M7662	4	Cap Screw	M10 X 30
2	9749637	1	Flange	(SUB FOR AT251641)
4	3080516	1	Hose	(SUB FOR AT251140)
5	7031164	1	Oil Line	(SUB FOR AT251542)(SUCTION)
6	3080557	1	Hose	(SUB FOR AT251141)
8	TY22470	4	Clamp	(SUB FOR AR65293)
9	12M7066	2	Lock Washer	10 mm
9	24M7096	2	Washer	10.500 X 18 X 1.600 mm
9	19M7402	2	Cap Screw	M10 X 25
11	CH11436	1	O-Ring	-
12	19M8168	4	Screw	M12 X 25
40	9749646	1	Bracket	(SUB FOR AT251642)
42	4276853	1	Elbow Fitting	(SUB FOR AT251188)
43	4425276	1	Adapter Fitting	(SUB FOR AT251526)
45	7037076	1	Oil Line	(SUB FOR AT251557)
47	12M7066	1	Lock Washer	10 mm
47	24M7096	1	Washer	10.500 X 18 X 1.600 mm
47	19M7662	1	Cap Screw	M10 X 30
48	19M7402	1	Cap Screw	M10 X 25
48	24M7096	1	Washer	10.500 X 18 X 1.600 mm
48	12M7066	1	Lock Washer	10 mm
50	4392019	1	Hose	(SUB FOR AT251332)
52	TY22467	4	Clamp	-
53	4075008	1	Hose	(SUB FOR AT251157)
54	4120247	1	Hose	(SUB FOR AT251162)
55	8070374	1	Oil Line	(SUB FOR AT251575)(RETURN)
56	-	2	Part 32	(SUB FOR TH106008)( 4120248 NO LONGER AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 150 MM LENGTH)
57	8070375	1	Oil Line	(SUB FOR AT251576)(RETURN)
58	TY22467	6	Clamp	-
59	12M7066	2	Lock Washer	10 mm
59	19M7402	2	Cap Screw	M10 X 25
59	24M7096	2	Washer	10.500 X 18 X 1.600 mm
60	4174541	1	Fitting	(SUB FOR TH110477)
69	14M7274	1	Nut	M10
70	24M7028	1	Washer	10.500 X 20 X 2 mm, (SUB FOR 12M7096)
42A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
43A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
60A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)

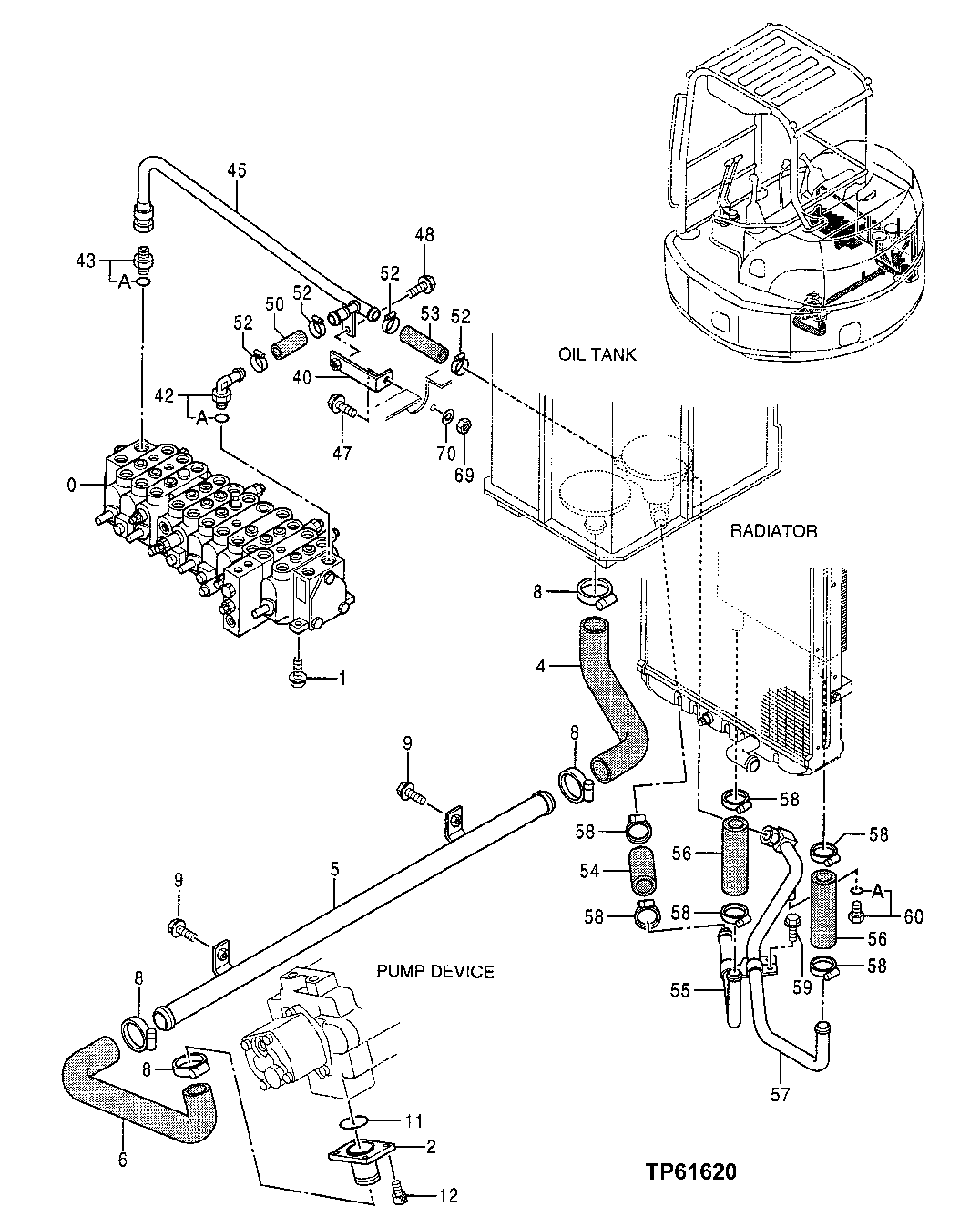

OIL COOLER LINES AND MAIN CONTROL VALVE
