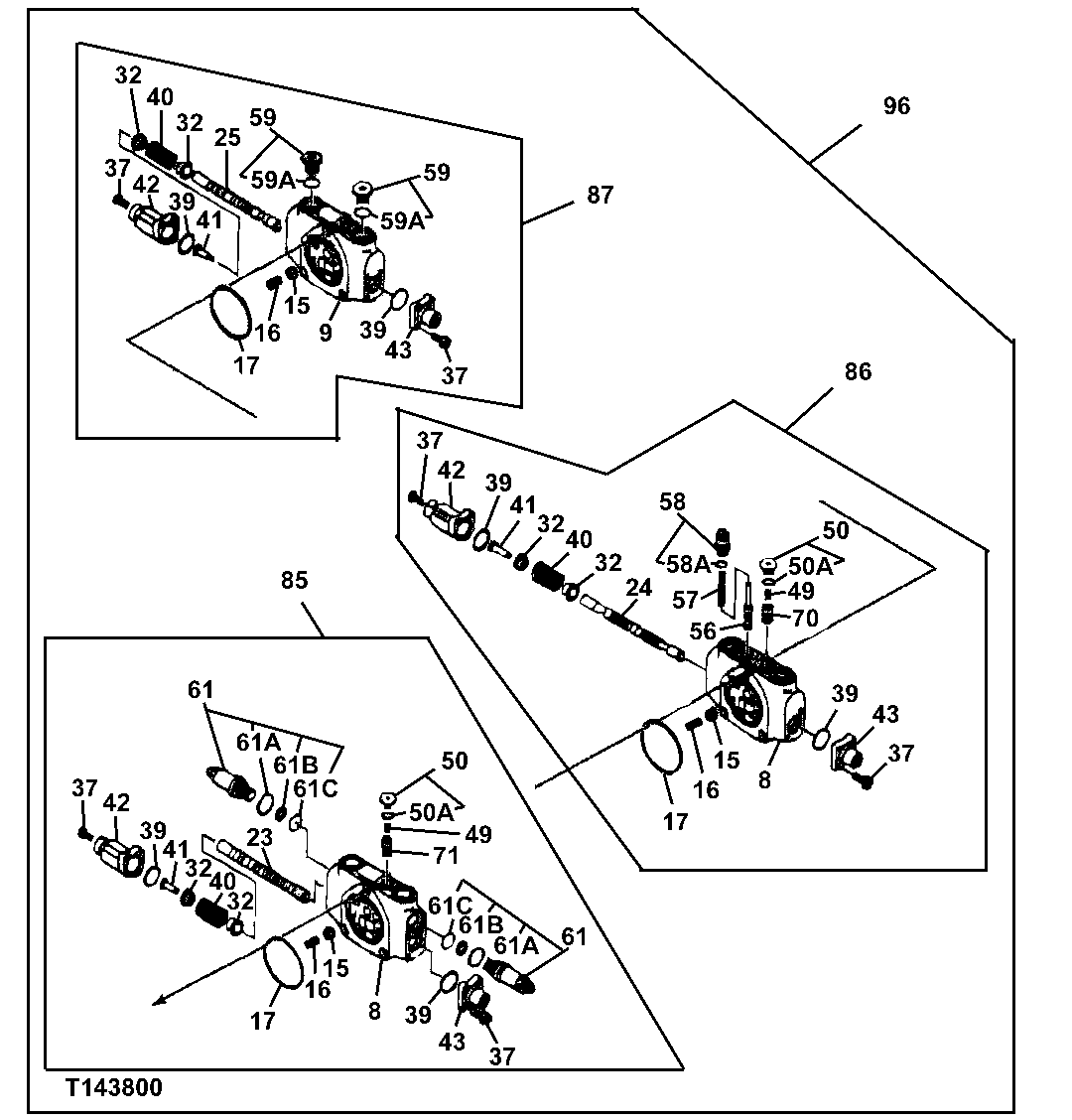

BOOM, LEFT PROPEL, AND ARM CONTROL VALVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
7	-	1	Part 1	-
8	-	1	Part 2	-
9	-	1	Part 3	-
15	-	3	Part 4	AT251744 AND 0433501 NLA
16	0433502	3	Spring	SUB FOR AT251745
17	0433401	3	O-Ring	SUB FOR AT251734
23	-	1	Part 7	-
24	-	1	Part 8	-
25	-	1	Part 9	-
32	0433407	6	Guide	SUB FOR AT251736
37	19M8627	30	Screw	M6 X 20
39	0433411	6	O-Ring	SUB FOR AT251738
40	0476305	3	Spring	SUB FOR AT251758
41	0433413	3	Cap Screw	SUB FOR AT251739
42	0433414	3	Cover	SUB FOR AT251740
43	0433415	2	Cover	SUB FOR AT251741
49	0433417	2	Spring	SUB FOR AT251742
50	0664404	2	Fitting Plug	SUB FOR AT251904
56	0433509	1	Spool	SUB FOR AT251746
57	0433010	1	Spring	SUB FOR AT251732
58	0433011	1	Fitting Plug	SUB FOR AT251733
59	0637401	2	Fitting Plug	SUB FOR AT251796
61	4384555	2	Flow Control Hyd. Valve	SUB FOR AT251793
70	0681501	1	Check Valve	SUB FOR AT251913
71	0681502	1	Check Valve	SUB FOR AT251914
85	-	1	Part 32	ARM, Furnish Components, SUB FOR AT251929
86	0755101	1	Housing	LEFT PROPEL, NOT AVAILABLE FOR SERVICE
87	0734104	1	Hyd Actuated Control Valve	BOOM, SUB FOR AT251931
96	-	1	Part 36	4447586 NO LONGER AVAILABLE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES
96	-	1	Part 35	4427490 NO LONGER AVAILABLE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES
50A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
58A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
59A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), SUB FOR U46489
61A	0976602	1	O-Ring	SUB FOR TH103574 OR AT264354 OR 4S00734
61B	0433513	1	Back-Up Ring	SUB FOR AT251748
61C	0637402	1	O-Ring	SUB FOR AT251797

BOOM, LEFT PROPEL, AND ARM CONTROL VALVE
