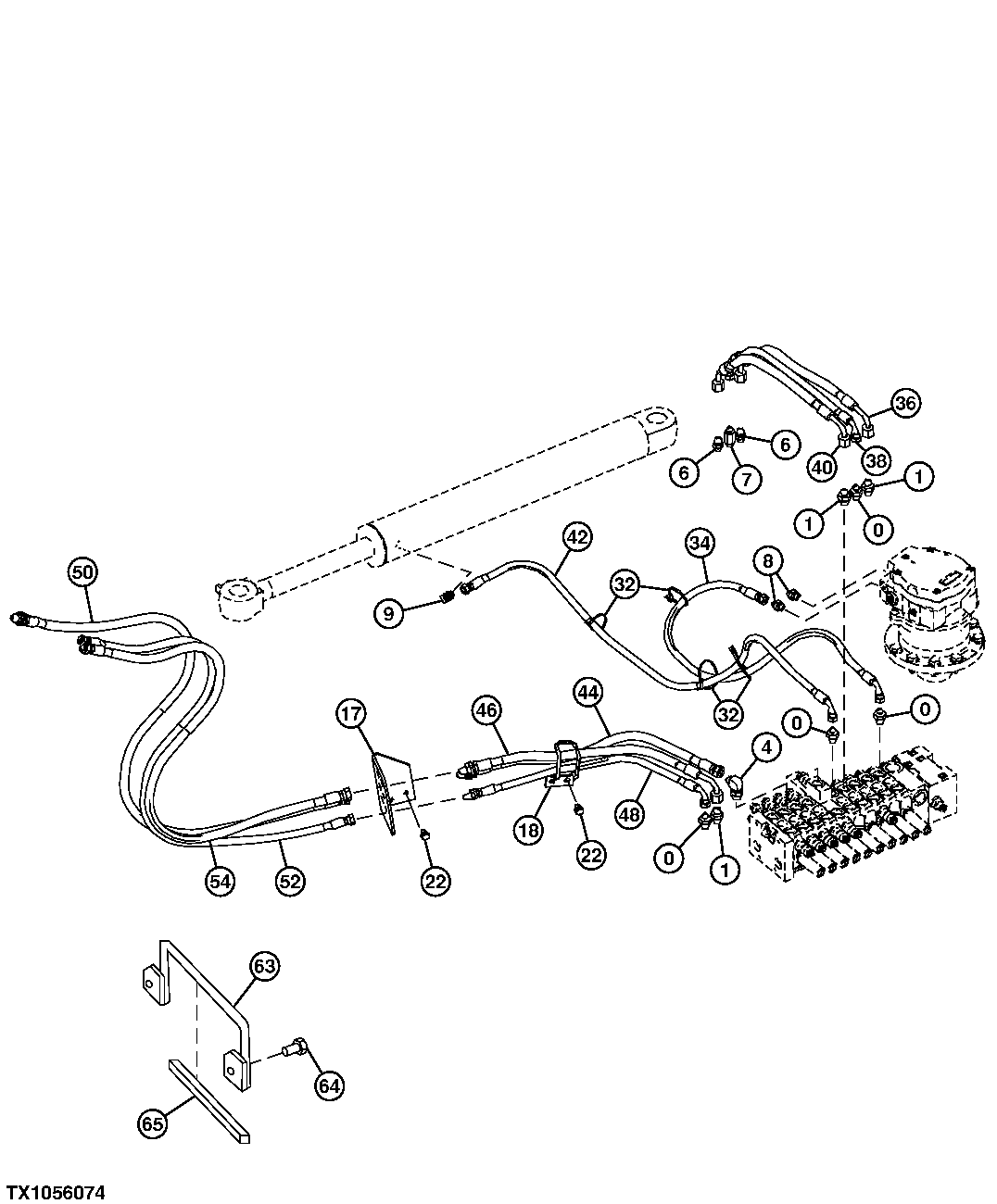

HYDRAULIC HOSES FROM CONTROL VALVE - 1

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	A852143	4	Adapter Fitting	-
1	A852144	3	Adapter Fitting	-
4	A852344	1	Elbow Fitting	-
6	A852134	2	Adapter Fitting	-
7	4276965	1	Adapter Fitting	-
8	A852133	2	Adapter Fitting	-
9	A852333	1	Elbow Fitting	-
17	4617342	1	Bracket	-
18	9762195	1	Bracket	-
22	-	4	Part 17	J271025 NLA
22	19M7402	4	Cap Screw	M10 X 25, SUB FOR J901025
22	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
32	H77698	4	Tie Band	SUB FOR 4055312
34	4628349	1	Hydraulic Hose	-
36	4628351	1	Hydraulic Hose	Left Propel
38	4628353	1	Hydraulic Hose	Blade
40	4628364	1	Hydraulic Hose	Right Propel
42	4628366	1	Hydraulic Hose	Boom Swing
44	4628368	1	Hydraulic Hose	Boom
46	4628370	1	Hydraulic Hose	Arm
48	4628372	1	Hydraulic Hose	Bucket
50	4628383	1	Hydraulic Hose	Boom
52	4628385	1	Hydraulic Hose	Bucket
54	4628387	1	Hydraulic Hose	Arm
63	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
63	-	1	Part 32	J271025 NLA
63	19M7402	1	Cap Screw	M10 X 25, SUB FOR J901025
64	J271025	1	Screw With Washer	-
65	4676643	1	Isolator	-
0A	4506418	1	O-Ring	Not Illustrated, COMPONENT OF KEY 0
1A	4506418	1	O-Ring	Not Illustrated, COMPONENT OF KEY 1
4A	4506418	1	O-Ring	Not Illustrated, COMPONENT OF KEY 4
6A	CH11570	1	O-Ring	Not Illustrated, SUB FOR 4509180, COMPONENT OF KEY 6
7A	CH11570	1	O-Ring	Not Illustrated, SUB FOR 4509180, COMPONENT OF KEY 7
8A	CH11570	1	O-Ring	Not Illustrated, SUB FOR 4509180, COMPONENT OF KEY 8
9A	CH11570	1	O-Ring	Not Illustrated, SUB FOR 4509180, COMPONENT OF KEY 9

HYDRAULIC HOSES FROM CONTROL VALVE - 1
