Открытый узел

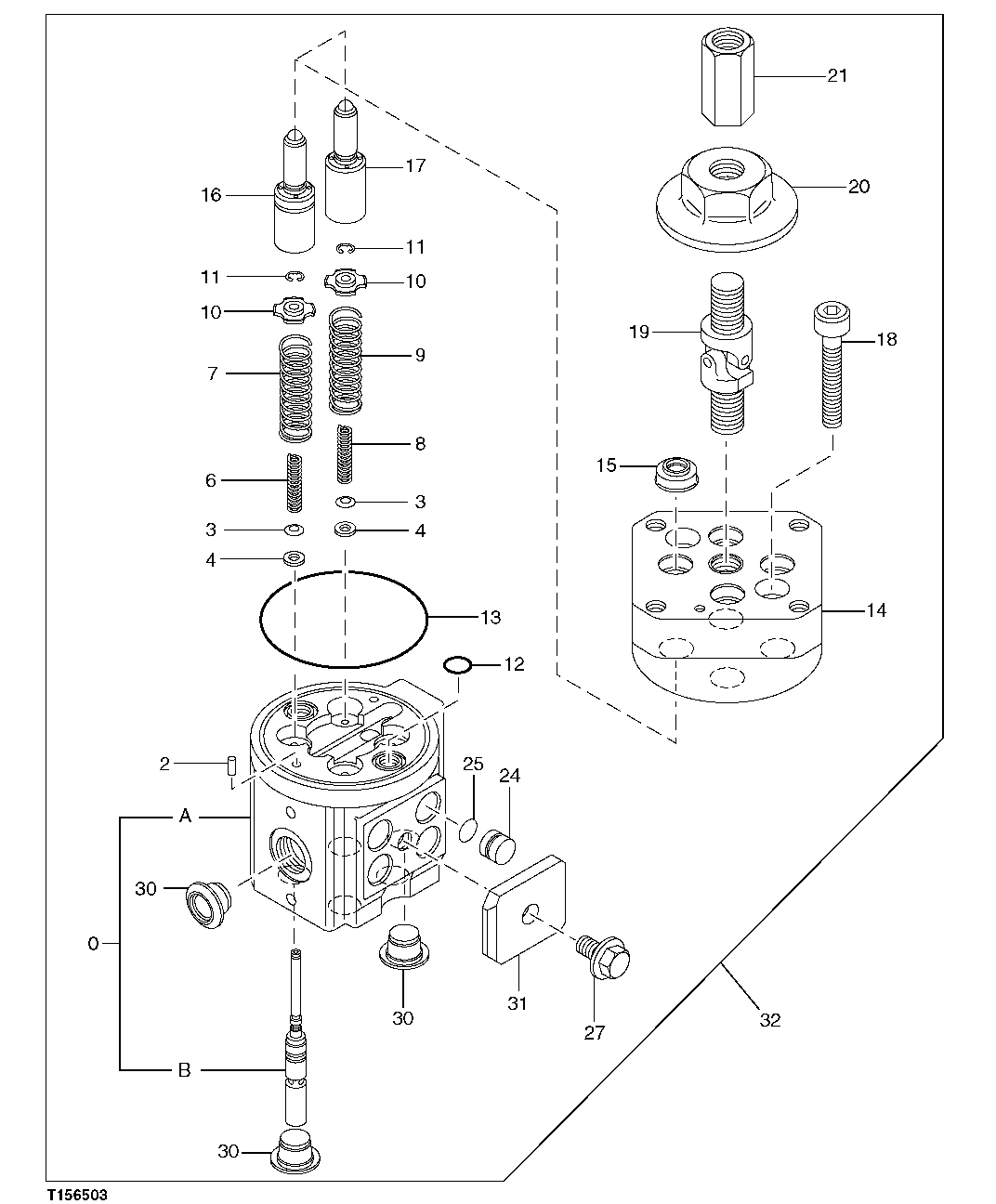

PILOT CONTROLLER VALVE (FRONT, SWING) ( -241750) ( - 241750)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	-
2	J400408	2	Pin	-
3	4662206	12	Shim	(SUB FOR 4203411)
4	4410898	4	Spacer	-
6	4425414	2	Spring	-
7	4421771	2	Spring	-
8	4429120	2	Spring	-
9	4446960	2	Spring	-
10	4429119	4	Guide	-
11	4437333	4	Snap Ring	-
12	4431914	2	O-Ring	-
13	4431915	1	O-Ring	-
14	-	1	Part 15	( 2044350 NO LONGER AVAILABLE), (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157 (MANIFOLD HAS ONE PUNCH MARK ON TOP FACE))
14	9234284	1	Manifold	(SUB FOR 2044350, ALONG WITH (4) 4477852, (2) 9759158 AND(2) 9759157), (MANIFOLD HAS TWO PUNCH MARKS ON TOP FACE)
15	4447050	4	Seal	(SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157 (USE WITH 2044350))
15	-	4	Part 18	(SUB FOR 4447050, ALONG WITH 9234284, (2) 9759158, AND (2) 9759157), (USE WITH 9234284) ( 4477852 NO LONGER AVAILABLE FOR SERVICE)
16	-	2	Part 19	( 9754825 NO LONGER AVAILABLE), (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157 (USE WITH 2044350))
16	9759157	2	Piston	(SUB FOR 9754825, ALONG WITH (4) 4477852, 9234284, AND (2) 9759158), (USE WITH 9234284)
17	-	2	Part 21	( 9754826 NO LONGER AVAILABLE), (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157 (USE WITH 2044350))
17	9759158	2	Piston	(SUB FOR 9754826, ALONG WITH (4) 4477852, (2)9759158, AND 9234284), (USE WITH 9234284)
18	19M8923	2	Screw	M8 X 45, (SUB FOR J780845)
19	4335060	1	Universal Joint	-
20	4639115	1	Cam	(SUB FOR 4437106)
21	4182067	1	Jointer	-
24	4442323	4	Pipe Plug	-
25	CH11560	4	Packing	-
27	19M7932	1	Cap Screw	M8 X 16
27	24H1136	1	Washer	11/32" X 11/16" X 0.065"
27	12M7056	1	Lock Washer	8 mm
30	4365332	6	Cap	-
31	4467104	1	Plate	-
32	-	1	Part 34	(COMPLETE ASSEMBLY ON ANOTHER PAGE), ( 4462567 NLA)
0A	-	1	Part 2	-
0B	-	4	Part 3	-

PILOT CONTROLLER VALVE (FRONT, SWING) ( -241750) ( - 241750)
