Открытый узел

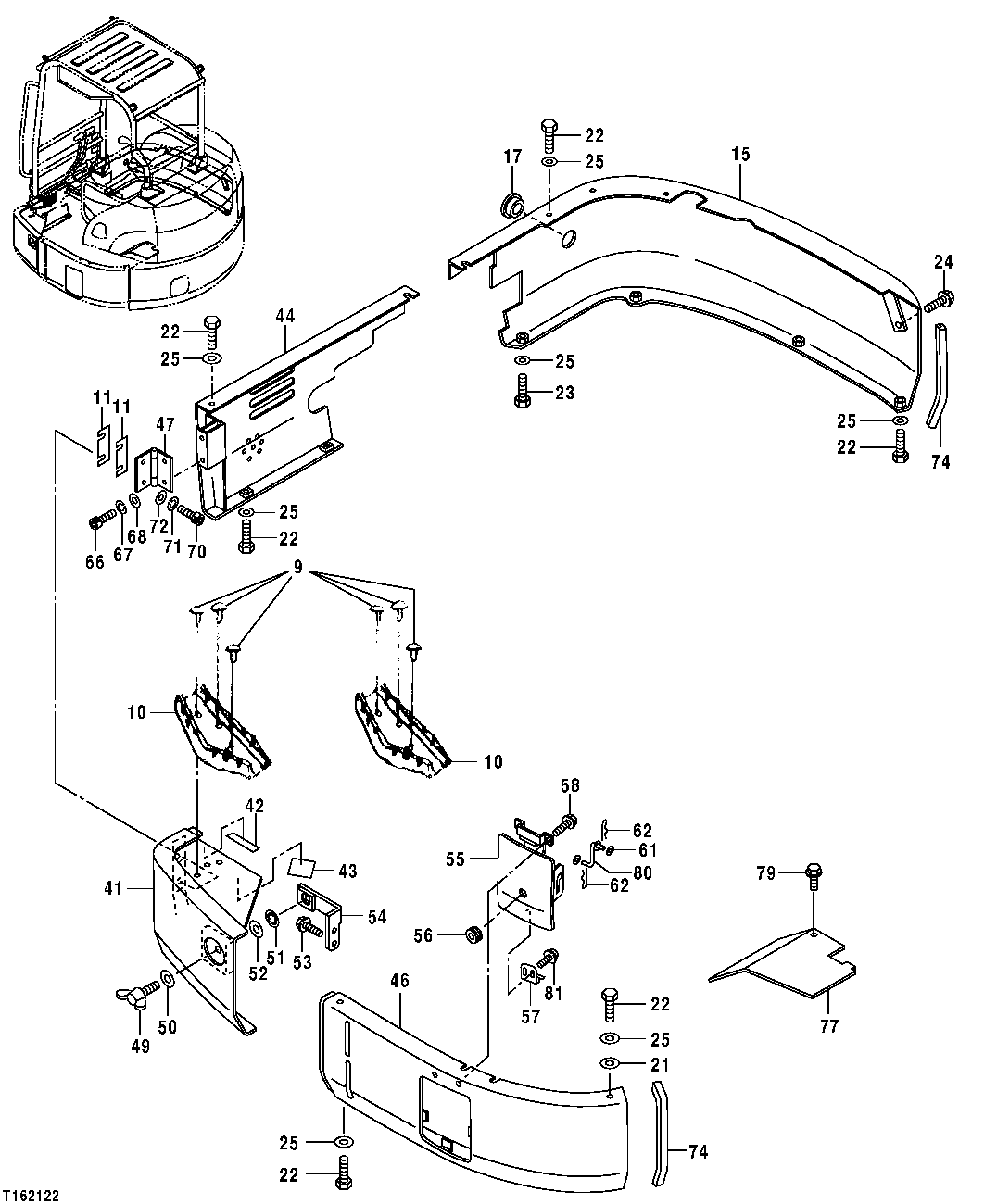

COVERS (FRONT, LEFT AND RIGHT LOWER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
9	21M7455	6	Screw	M6 X 20, SUB FOR 21M7085
10	4605456	2	Step	-
11	4406464	2	Solid Shim	-
15	7041800	1	Cover	-
15	7043901	1	Cover	-
17	4349381	1	Grommet	-
21	4346037	4	Washer	-
22	19M7407	15	Cap Screw	M8 X 25
23	19M8008	1	Cap Screw	M8 X 35
24	19M7407	1	Cap Screw	M8 X 25, SUB FOR AT256004
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm
24	-	1	Part 12	12M7065 NLA
25	J222008	16	Washer	SUB FOR J254008
41	7041833	1	Cover	-
42	4420366	4	Isolator	-
43	4415136	1	Isolator	-
44	8074022	1	Cover	-
46	7043349	1	Cover	-
47	4414841	1	Hinge	-
49	4420337	1	Wing Screw	19M7493 NA
50	4346037	1	Washer	-
51	4412154	1	Nut	-
52	12M7036	1	Lock Plate	SUB FOR J253108
53	24M7055	2	Washer	8.400 X 16 X 1.600 mm
53	19M7881	2	Screw	M8 X 20, SUB FOR J090820 OR J020820
53	-	2	Part 25	12M7065 NLA
54	9751371	1	Bracket	-
55	7041638	1	Cover	-
56	4299864	1	Grommet	-
57	4405877	1	Spring	-
58	19M8425	2	Cap Screw	M6 X 16, SUB FOR J090616
58	24M7267	2	Washer	6.400 X 11 X 1.600 mm
58	12M7006	2	Lock Washer	6 mm
61	24M7139	2	Washer	6.400 X 18 X 1.600 mm, SUB FOR 4345258
62	M800051	2	Pin	SUB FOR CH10542, SUB FOR 4022696
66	19M7881	2	Screw	M8 X 20, SUB FOR J770820
67	-	2	Part 37	12M7065 NLA, SUB FOR J252108
68	12M7036	2	Lock Plate	SUB FOR J253108
70	19M8440	2	Screw	M10 X 25
71	12M7066	2	Lock Washer	10 mm, SUB FOR J252210
72	24M7028	2	Washer	10.500 X 20 X 2 mm, SUB FOR J253110 OR A590110
74	4440756	2	Isolator	-
77	3094749	1	Cover	-
79	19M7938	2	Cap Screw	M10 X 20, SUB FOR J051020
79	24M7096	2	Washer	10.500 X 18 X 1.600 mm
79	12M7066	2	Lock Washer	10 mm
80	9743982	1	Rod	-
81	21M7395	2	Screw	M4 X 8, SUB FOR J680408
81	T116080	2	Washer	-
81	12M7064	2	Lock Washer	5 mm

COVERS (FRONT, LEFT AND RIGHT LOWER)
