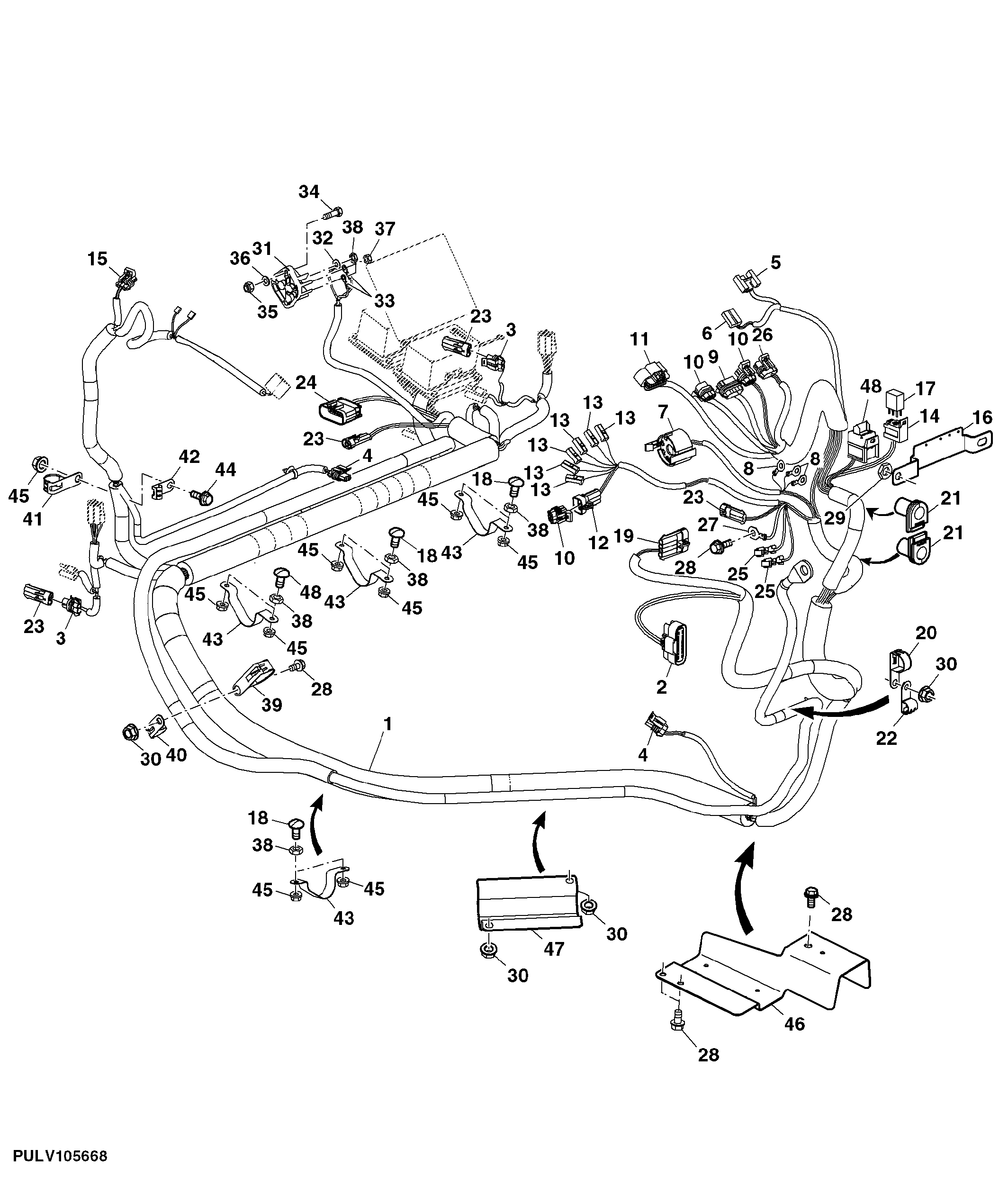

PLATFORM WIRING HARNESS, SYNCSHUTTLE PTM, (TSS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ12685	1	Wiring Harness	SUB FOR SJ299148
2	57M8279	1	Elec. Connector Housing	-
3	57M7254	2	Elec. Connector Housing	-
4	57M7328	2	Elec. Connector Housing	-
5	57M7183	1	Elec. Connector Accessory	-
6	R77480	1	Electrical Connector Assy	-
7	RE46736	1	Electrical Connector Assy	-
8	57M8873	3	Elec. Connector Terminal	-
9	57M7262	1	Elec. Connector Housing	-
10	57M7260	3	Elec. Connector Housing	-
11	57M8484	1	Elec. Connector Housing	-
12	57M7263	1	Elec. Connector Housing	-
13	57M8815	6	Elec. Connector Housing	SUB FOR T28583
14	Z61311	2	Elec. Connector Housing	-
15	57M7255	1	Elec. Connector Housing	-
16	R255312	1	Bracket	-
17	57M9880	1	Relay	SUB FOR 57M8853
18	03M7222	3	Bolt	M6 X 20
19	57M7839	1	Electrical Connector Assy	-
20	57M9412	1	Clamp	(SUB FOR 57M8832)
21	R112653	2	Grommet	-
22	57M9432	1	Clamp	SUB FOR 57M8856
23	57M7256	4	Elec. Connector Housing	-
24	57M8280	1	Elec. Connector Housing	-
25	57M8996	2	Elec. Connector Terminal	-
26	57M7261	1	Elec. Connector Housing	-
27	57M8866	1	Elec. Connector Terminal	-
28	19M7865	4	Screw	M8 X 16
29	14M7152	2	Nut	M10
30	14M7298	4	Flange Nut	M8
31	RE186986	1	Junction Block	-
32	57M8871	1	Elec. Connector Terminal	-
33	57M8875	2	Elec. Connector Terminal	-
34	19M7502	2	Cap Screw	M5 X 25
35	14M7375	2	Flange Nut	M5
36	24M7027	2	Washer	5.300 X 10 X 1 mm
37	14M7297	2	Nut	M5
38	14M7194	9	Nut	M6
39	57M9429	1	Clamp	(SUB FOR 57M8836)
40	57M9425	1	Clamp	(SUB FOR 57M8833)
41	57M8827	1	Clamp	-
42	57M8909	1	Clip	-
43	R273101	4	Clamp	-
44	19M7775	1	Screw	M6 X 16
45	14M7303	9	Flange Nut	M6
46	SU299952	1	Bracket	-
47	R266722	1	Bracket	-
48	RE262484	1	Diode	-
