Открытый узел

PLATFORM WIRING HARNESS, SYNCREVERSER PTM, (SR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ19294	1	Wiring Harness	SUB FOR SJ12686
2	57M8484	1	Elec. Connector Housing	-
3	57M7260	5	Elec. Connector Housing	-
4	57M7262	1	Elec. Connector Housing	-
5	57M7840	1	Elec. Connector Housing	-
6	57M7263	1	Elec. Connector Housing	-
7	57M7839	1	Electrical Connector Assy	-
8	57M8279	2	Elec. Connector Housing	-
9	R112653	2	Grommet	-
10	57M8996	2	Elec. Connector Terminal	-
11	57M8815	6	Elec. Connector Housing	SUB FOR T28583
12	RE46736	1	Electrical Connector Assy	-
13	19M7865	4	Screw	M8 X 16
14	57M8866	1	Elec. Connector Terminal	-
15	R255312	1	Bracket	-
16	14M7152	2	Nut	M10
17	Z61311	2	Elec. Connector Housing	-
18	57M9880	2	Relay	SUB FOR 57M8853
19	57M8529	1	Electrical Connector Cap	-
20	RE207311	2	Electronic Control Unit	-
21	57M9190	2	Clip	-
22	57M8873	3	Elec. Connector Terminal	-
23	R77480	1	Electrical Connector Assy	-
24	57M7183	1	Elec. Connector Accessory	-
25	57M9412	1	Clamp	(SUB FOR 57M8832)
26	57M9432	1	Clamp	SUB FOR 57M8856
27	14M7298	4	Flange Nut	M8
28	57M8909	2	Clip	-
29	SU299952	1	Bracket	-
30	57M7328	2	Elec. Connector Housing	-
31	R266722	1	Bracket	-
32	R273101	1	Clamp	-
33	R266718	3	Clamp	-
34	03M7221	8	Bolt	M6 X 16
35	14M7194	9	Nut	M6
36	14M7303	9	Flange Nut	M6
37	57M9429	1	Clamp	(SUB FOR 57M8836)
38	57M9425	1	Clamp	(SUB FOR 57M8833)
39	57M8827	1	Clamp	-
40	19M7775	1	Screw	M6 X 16
41	57M7254	2	Elec. Connector Housing	-
42	57M7256	2	Elec. Connector Housing	-
43	57M7255	1	Elec. Connector Housing	-
44	57M8280	1	Elec. Connector Housing	-
45	RE217864	1	Cap	-
46	57M9183	1	Elec. Connector Housing	-
47	57M9182	1	Nut	-
48	RE186986	1	Junction Block	-
49	19M7502	2	Cap Screw	M5 X 25
50	14M7375	2	Flange Nut	M5
51	24M7027	2	Washer	5.300 X 10 X 1 mm
52	57M8871	1	Elec. Connector Terminal	-
53	57M8875	2	Elec. Connector Terminal	-
54	14M7297	2	Nut	M5
55	SJ290320	1	Electronic Control Unit	-
56	57M10605	1	Elec. Connector Housing	SUB FOR 57M8519
57	57M10615	1	Elec. Connector Housing	SUB FOR 57M8527
58	57M10606	1	Elec. Connector Housing	SUB FOR 57M8523
59	57M10604	2	Elec. Connector Housing	SUB FOR 57M8528
60	RE262484	1	Diode	-

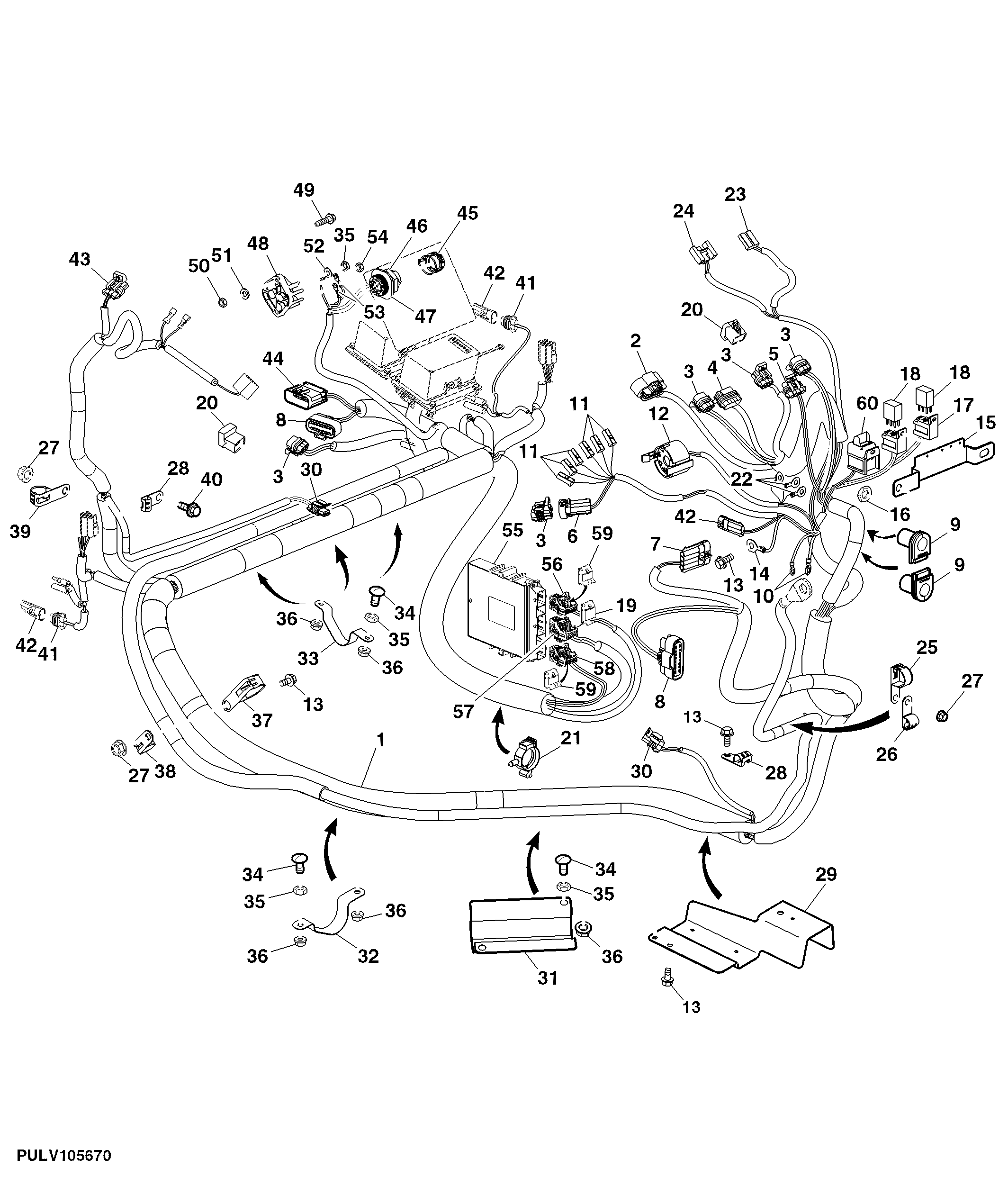

PLATFORM WIRING HARNESS, SYNCREVERSER PTM, (SR)
