Открытый узел

Cab Wiring Harness, PR/SR, PTM, (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7261	1	Elec. Connector Housing	Dust Cap
2	57M7264	2	Elec. Connector Housing	Draft Sensor Harness
3	57M8902	1	Clip	-
4	57M9432	2	Clamp	-
5	14M7194	1	Nut	M6, Junction Block Accessory Power
6	CB01483609	12	Tie Band	-
7	14M7297	1	Nut	M5, Junction Block Battery Power
8	14M7297	1	Nut	M5, Junction Block Ground
9	57M7255	1	Elec. Connector Housing	Hi/Low Shifter
10	57M7257	1	Elec. Connector Housing	MFWD Switch
11	57M7257	1	Elec. Connector Housing	Rear PTO Switch
12	57M7264	1	Elec. Connector Housing	Hitch Quick Raise/ Lower Assembly
13	57M7255	1	Elec. Connector Housing	Load Depth Sensor
14	57M7263	1	Elec. Connector Housing	Rear Wiper Option
15	R78054	1	Electrical Connector Assy	Covenience Outlet
16	RE12364	1	Electrical Connector Assy	Dust Cap
17	57M8949	1	Elec. Connector Terminal	Power Outlet Positive
18	57M8949	1	Elec. Connector Terminal	Power Outlet Negative
19	R77476	1	Electrical Connector Assy	Rear Washer Pump
20	R77476	1	Electrical Connector Assy	Front Washer Pump
21	57M7349	1	Elec. Connector Accessory	Right Tail Lamp
22	57M7328	1	Elec. Connector Housing	Seat Switch
23	57M7255	1	Elec. Connector Housing	Hand Brake Switch
24	57M9406	1	Elec. Connector Accessory	Single Point Ground Splice Pack
25	57M10606	1	Elec. Connector Housing	FCC J3 Connector
26	57M10615	1	Elec. Connector Housing	FCC J2 Connector
27	57M10609	1	Elec. Connector Housing	FCC J1 Connector
28	SU23151	1	Bracket	Cab Pass Through
29	R138078	2	Grommet	-
30	57M9786	1	Elec. Connector Housing	Chassis Connector 3
31	57M8281	1	Elec. Connector Housing	Chassis Connector 1
32	57M8484	1	Elec. Connector Housing	Chassis Connector 2
33	57M9425	5	Clamp	-
34	57M7328	1	Elec. Connector Housing	Differential Lock
35	RE258807	4	Tie Band	-
36	57M8279	1	Elec. Connector Housing	Engine Harness
37	R267935	1	Channel	LGTH = 320 mm
38	R267934	1	Channel	LGTH = 185 mm
39	57M8484	1	Elec. Connector Housing	Front Console Connector 1
40	57M8944	1	Elec. Connector Housing	Front Console Connector 3
41	57M8281	1	Elec. Connector Housing	Front Console Connector 2
42	RE48875	1	Junction Block	-
43	57M8901	2	Elec. Connector Terminal	-
44	57M8865	1	Elec. Connector Terminal	-
45	57M9800	1	Elec. Connector Housing	Roof Harness
46	57M8279	1	Elec. Connector Housing	Roof Harness
47	57M7919	1	Elec. Connector Housing	Service Advisor
48	57M11133	1	Elec. Connector Housing	Can Terminator
49	57M7254	1	Elec. Connector Housing	License Plate Lamp
50	57M7256	1	Elec. Connector Housing	Dust Cap
51	57M7260	1	Elec. Connector Housing	Left External Hitch Switch
52	57M7349	1	Elec. Connector Accessory	-
53	R256599	1	Bracket	Lower
54	R256598	1	Bracket	Upper
55	57M8749	4	Elec. Connector Accessory	-
56	57M7688	1	Fuse	5 A
57	57M9142	2	Elec. Connector Accessory	-
57	57M8756	4	Elec. Connector Accessory	INCLUDES 57M9142
58	57M8750	1	Elec. Connector Housing	-
59	19M8649	4	Screw	M6 X 20
60	SJ15809	9	Relay	12 V
61	LVA13729	4	Relay	7.2 V
62	RE180265	3	Diode	1 A
63	57M7689	13	Fuse	10 A
64	57M7690	3	Fuse	15 A
65	57M7691	4	Fuse	20 A
66	57M8163	9	Fuse	30 A
67	RE194287	1	Fuse Holder	-
68	SJ21160	1	Wiring Harness	-
69	24M7087	2	Washer	5.500 X 10 X 1 mm
70	14M7274	1	Nut	M10
71	19M7774	1	Screw	M6 X 12
72	24M7088	1	Washer	6.600 X 12 X 1.600 mm

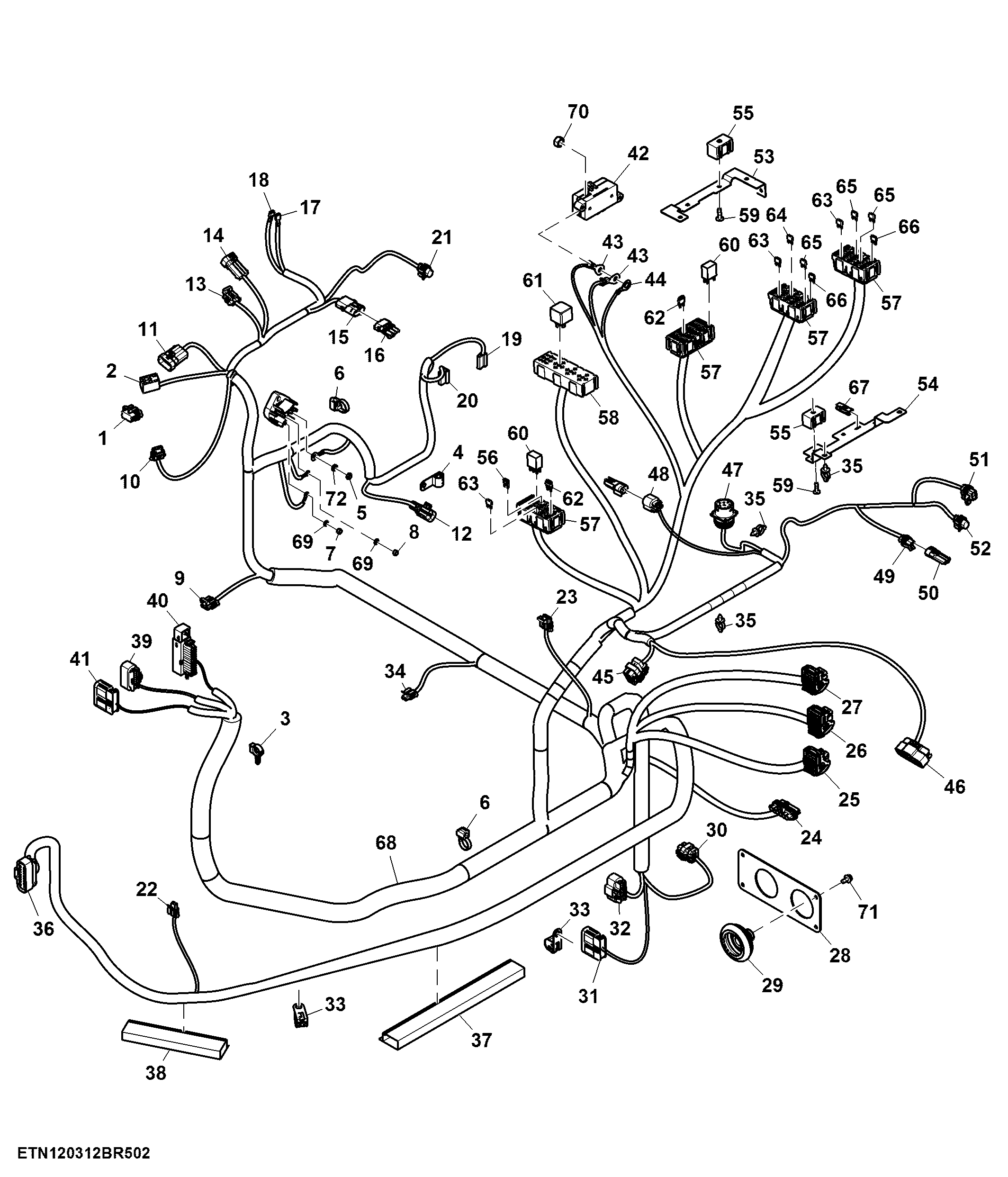

Cab Wiring Harness, PR/SR, PTM, (2/3)
