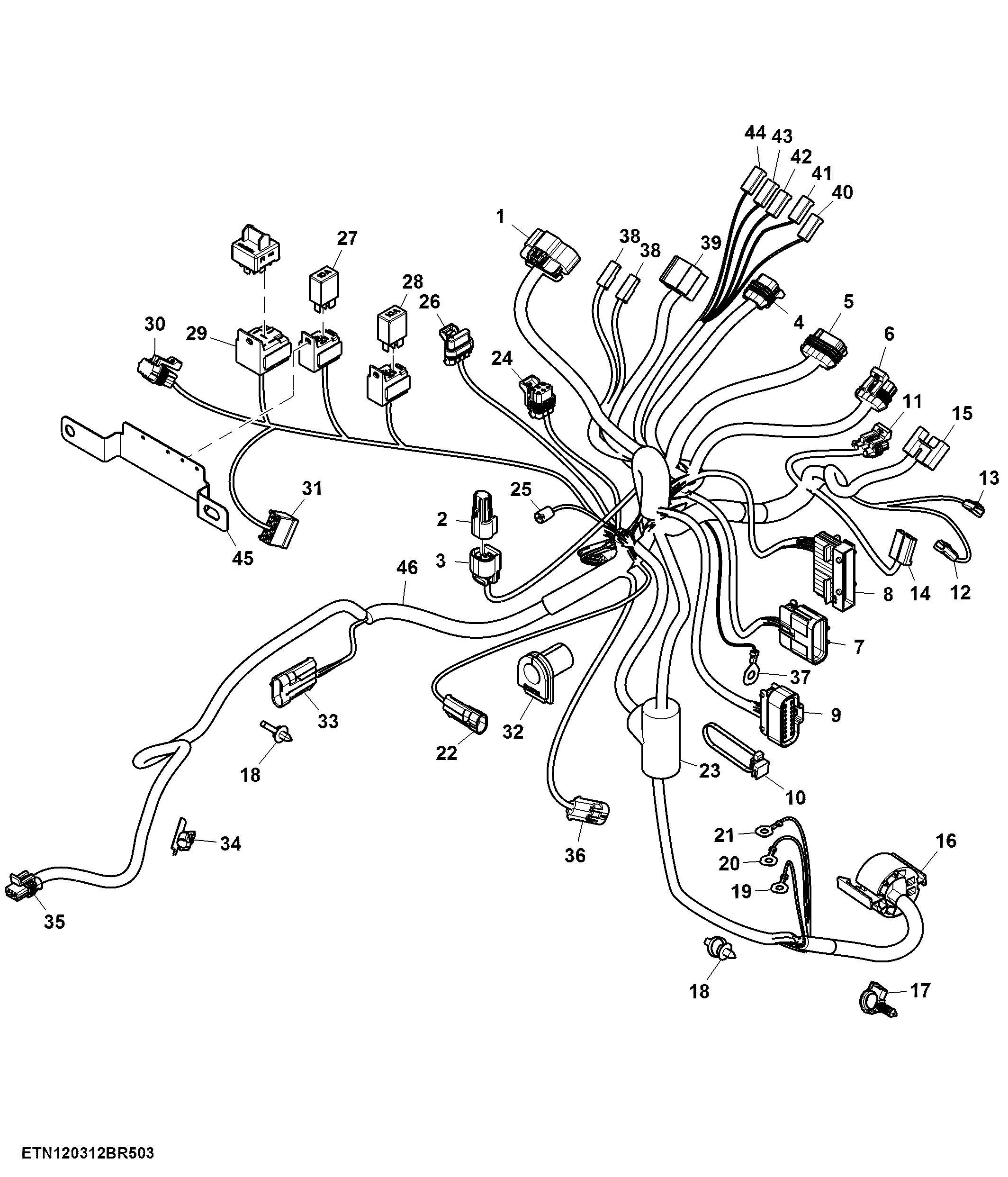

Cab Console Wiring Harness, PR/SR, (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8484	1	Elec. Connector Housing	Instrument Cluster J4
2	SJ12004	1	Electronic Terminator	-
3	57M11133	1	Elec. Connector Housing	Can Terminator
4	57M7260	1	Elec. Connector Housing	Instrument Cluster J2
5	57M7262	1	Elec. Connector Housing	Instrument Cluster J1
6	57M7261	1	Elec. Connector Housing	Instrument Cluster J3
7	57M10717	1	Elec. Connector Housing	Cab Connector 1
8	57M8070	1	Elec. Connector Housing	Cab Connector 3
9	57M8156	1	Elec. Connector Housing	Cab Connector 2
10	57M9229	1	Clip	-
11	57M7255	1	Elec. Connector Housing	Shuttle Control Switch
12	57M8815	1	Elec. Connector Housing	Hazard Switch Pin B
13	57M8815	1	Elec. Connector Housing	Hazard Switch Pin C
14	R77480	1	Electrical Connector Assy	Horn Switch
15	57M7183	1	Elec. Connector Accessory	Turn Signal Switch
16	RE46736	1	Electrical Connector Assy	Key Switch
17	57M8902	1	Clip	-
18	RE258807	3	Tie Band	-
19	57M8871	1	Elec. Connector Terminal	Neutral Start Relay C
20	57M8871	1	Elec. Connector Terminal	Neutral Start Relay D
21	57M8871	1	Elec. Connector Terminal	-
22	57M7256	1	Elec. Connector Housing	Audible Alarm
23	57M9285	1	Tee Fitting	-
24	57M7260	1	Elec. Connector Housing	Clutch Assembly
25	L38802	1	Elec. Connector Terminal	Front Wiper Motor
26	57M7840	1	Elec. Connector Housing	FNR Switch
27	AL76702	1	Relay	Accessory Relay
28	AL76702	1	Relay	Neutral Relay
29	57M7182	1	Elec. Connector Housing	Diode Module
30	57M7261	1	Elec. Connector Housing	Brake Switch
31	L39317	1	Elec. Connector Terminal	Flasher Relay
32	R112653	1	Grommet	-
33	57M7839	1	Electrical Connector Assy	Hood Harness
34	57M11168	2	Elec. Connector Accessory	-
35	57M7309	1	Elec. Connector Housing	A/C Compressor
36	57M7256	1	Elec. Connector Housing	Neutral start Relay Control
37	57M8866	1	Elec. Connector Terminal	Chassis Ground
38	57M7170	2	Elec. Connector Housing	PTO Lamp
39	RE46735	1	Electrical Connector Assy	Front Wiper Switch
40	R77502	1	Tube	Light Switch B
41	R77502	1	Tube	Light Switch FL
42	R77502	1	Tube	Light Switch TL
43	R77502	1	Tube	Light Switch HD1
44	R77502	1	Tube	Light Switch HD2
45	R255312	1	Bracket	Relay Holder
46	SJ21162	1	Wiring Harness	-

Cab Console Wiring Harness, PR/SR, (3/3)

Нет текстового описания
