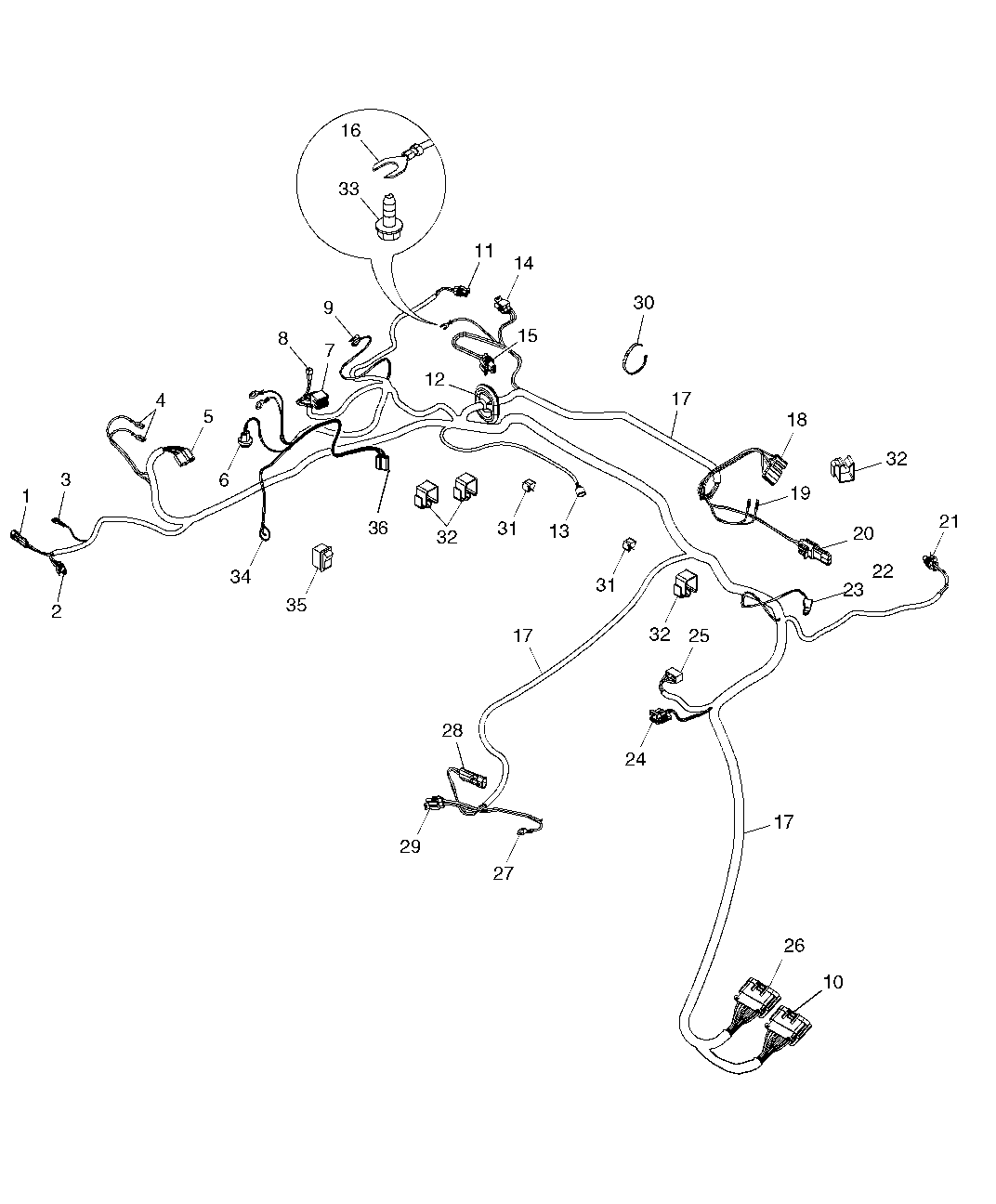

WIRING HARNESS (ROOF) (WITH CAB) (TURKEY) (CONTINUED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
23	57M8174	1	Elec. Connector Housing	(LEFT SPEAKER)
24	-	1	Part 2	(DOME LAMP)
25	RE12364	1	Electrical Connector Assy	(LEFT DOOR SWITCH)
26	57M8280	1	Elec. Connector Housing	(TO CAB REAR WIRING HARNESS)
27	-	1	Part 5	(BEACON LAMP GROUND)
28	57M7255	1	Elec. Connector Housing	(LEFT FRONT WARNING LAMP)
28	57M7290	1	Elec. Connector Accessory	-
28	R104846	3	Elec. Connector Terminal	-
28	57M7258	3	Elec. Connector Seal	-
29	57M7254	1	Elec. Connector Housing	(LEFT FRONT FLOOD LAMP)
30	R44302	2	Tie Band	-
31	L115766	2	Clamp	-
32	L151529	4	Loom	-
33	37M7042	1	Screw	-
34	-	1	Part 15	(TO BEACON LAMP SWITCH)
35	AL181123	1	Toggle/Rocker Switch	-
36	57M7256	1	Elec. Connector Housing	-
36	57M7289	1	Elec.Connect Locking Device	-
36	R104919	2	Elec. Connector Terminal	-
36	57M7258	2	Elec. Connector Seal	-

WIRING HARNESS (ROOF) (WITH CAB) (TURKEY) (CONTINUED)
