Wiring Harness, PowrReverser™, IOOS (1/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32899	1	Wiring Harness	IOOS
2	57M10609	1	Elec. Connector Housing	FCC Controller J1 24
2	57M10331	3	Elec. Connector Terminal	Cavity G1, H1, H2
2	57M10330	11	Elec. Connector Terminal	Cavity A1, A3, A4, B1, B2, C1, C2, C3, C4, E1, E2
3	57M10615	1	Elec. Connector Housing	FCC Controller J2 25
3	57M10330	22	Elec. Connector Terminal	Cavity A1, A3, B1, B2, D2, D4, E2, E3, E4, F1, F2, F3, F4, G1, G4, H2, H4, J2, J4, K1, K2, K4
3	57M10331	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M3, M4
4	57M10606	1	Elec. Connector Housing	FCC Controller J3 26
4	57M10330	9	Elec. Connector Terminal	Cavity A3, A4, B3, C1, C2, D4, E1, E4, F4
5	57M9776	1	Elec. Connector Housing	Chassis Control Area Network Terminator 27
5	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
6	57M9183	1	Elec. Connector Housing	Service Advisor 29
6	N282069	4	Elec. Connector Terminal	Cavity A, B, C, D
7	57M8871	1	Elec. Connector Terminal	Junction Block Accessory Power 28A
8	57M8875	1	Elec. Connector Terminal	Junction Block Ground 28B
9	57M8875	1	Elec. Connector Terminal	Junction Block Battery Power 28C
10	57M8515	13	Elec. Connector Seal	Cavity A7, A9, C8, C10, D7, D8, D9, E6, F3, F6, F7, F8, F10
10	57M7399	37	Elec. Connector Seal	Cavity A1, A2, A3, A4, A5, A6, A8, A10, B1, B2, B3, B4, B5, B6, B7, C1, C2, C3, C4, C5, C6, C9, D1, D2, D3, D4, D5, D6, D10, E1, E2, E3, E4, F1, F2, F4, F9
10	57M8585	37	Elec. Connector Terminal	Cavity A1, A2, A3, A4, A5, A6, A8, A10, B1, B2, B3, B4, B5, B6, B7, C1, C2, C3, C4, C5, C6, C9, D1, D2, D3, D4, D5, D6, D10, E1, E2, E3, E4, F1, F2, F4, F9
10	RE269840	1	Fuse Box	Load Center 1 01
10	57M8584	13	Elec. Connector Terminal	Cavity A7, A9, C8, C10, D7, D8, D9, E6, F3, F6, F7, F8, F10
11	RE269840	1	Fuse Box	Load Center 2 02
11	57M8584	19	Elec. Connector Terminal	Cavity A1, A4, A6, A9, C2, C5, C7, C10, D4, D6, E1, E2, E3, E10, F1, F2, F3, F5, F10
11	57M8585	17	Elec. Connector Terminal	Cavity A2, A5, A7, A10, C1, C4, C6, C9, D5, D7, E8, E9, F4, F6, F7, F8, F9
11	57M8515	19	Elec. Connector Seal	Cavity A1, A4, A6, A9, C2, C5, C7, C10, D4, D6, E1, E2, E3, E10, F1, F2, F3, F5, F10
11	57M7399	17	Elec. Connector Seal	Cavity A2, A5, A7, A10, C1, C4, C6, C9, D5, D7, E8, E9, F4, F6, F7, F8, F9
12	57M7491	2	Elec. Connector Terminal	Cavity A, B
12	57M9218	2	Elec. Connector Seal	Cavity A, B
12	57M7309	1	Elec. Connector Housing	Trailer Jumper 2 06
13	57M7260	1	Elec. Connector Housing	Trailer Jumper 1 05
13	57M7291	1	Electrical Connector Assy	-
13	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
13	57M7258	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
14	57M8815	1	Elec. Connector Housing	Flood Light 04
14	57M9630	1	Elec. Connector Terminal	Cavity 1
15	57M9215	2	Elec. Connector Seal	Cavity A, B
15	57M7494	2	Elec. Connector Terminal	Cavity A, B
15	57M7346	1	Elec. Connector Housing	Rear PTO Sensor 03
15	57M7347	1	Elec. Connector Accessory	-
16	57M8924	1	Elec. Connector Housing	PTO Solenoid 08
16	57M8633	1	Elec. Connector Accessory	-
16	57M8560	2	Elec. Connector Terminal	Cavity A, B
16	57M8566	2	Elec. Connector Seal	Cavity A, B
17	RE12364	1	Electrical Connector Assy	Hand Brake Switch 10
17	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9219	3	Elec. Connector Seal	Cavity A, B, C
18	57M7328	1	Elec. Connector Housing	Seat Switch 11
18	57M7289	1	Elec.Connect Locking Device	-
18	57M7494	2	Elec. Connector Terminal	Cavity A, B
18	57M9215	2	Elec. Connector Seal	Cavity A, B
19	57M7254	1	Elec. Connector Housing	Rear Work Lamp 12, LH
19	R104846	2	Elec. Connector Terminal	Cavity A, B
19	57M7258	2	Elec. Connector Seal	Cavity A, B
20	57M7258	3	Elec. Connector Seal	Cavity A, B, C
20	57M7255	1	Elec. Connector Housing	Front Clearance / Warning Lamp 13, LH
20	R104846	3	Elec. Connector Terminal	Cavity A, B, C
21	57M7254	1	Elec. Connector Housing	License Plate Lamp 14, LH
21	R104846	2	Elec. Connector Terminal	Cavity A, B
21	57M7258	2	Elec. Connector Seal	Cavity A, B
22	57M7349	1	Elec. Connector Accessory	Tail / Brake / Turn Lamp 15, LH
22	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
22	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
23	57M7347	1	Elec. Connector Accessory	-
24	RE217864	1	Cap	-
25	57M9182	1	Nut	-
26	57M9772	1	Elec. Connector Housing	Dust Cap
27	57M10604	2	Elec. Connector Housing	-
28	57M10613	1	Elec. Connector Housing	-
29	RE186986	1	Junction Block	-
30	37M7061	2	Screw	M5 X 20
31	AL204621	1	Wheel Speed Sensor	Speed
32	51M7044	1	O-Ring	17.300 X 2.200 mm
33	57M7289	1	Elec.Connect Locking Device	-
34	57M7290	1	Elec. Connector Accessory	-

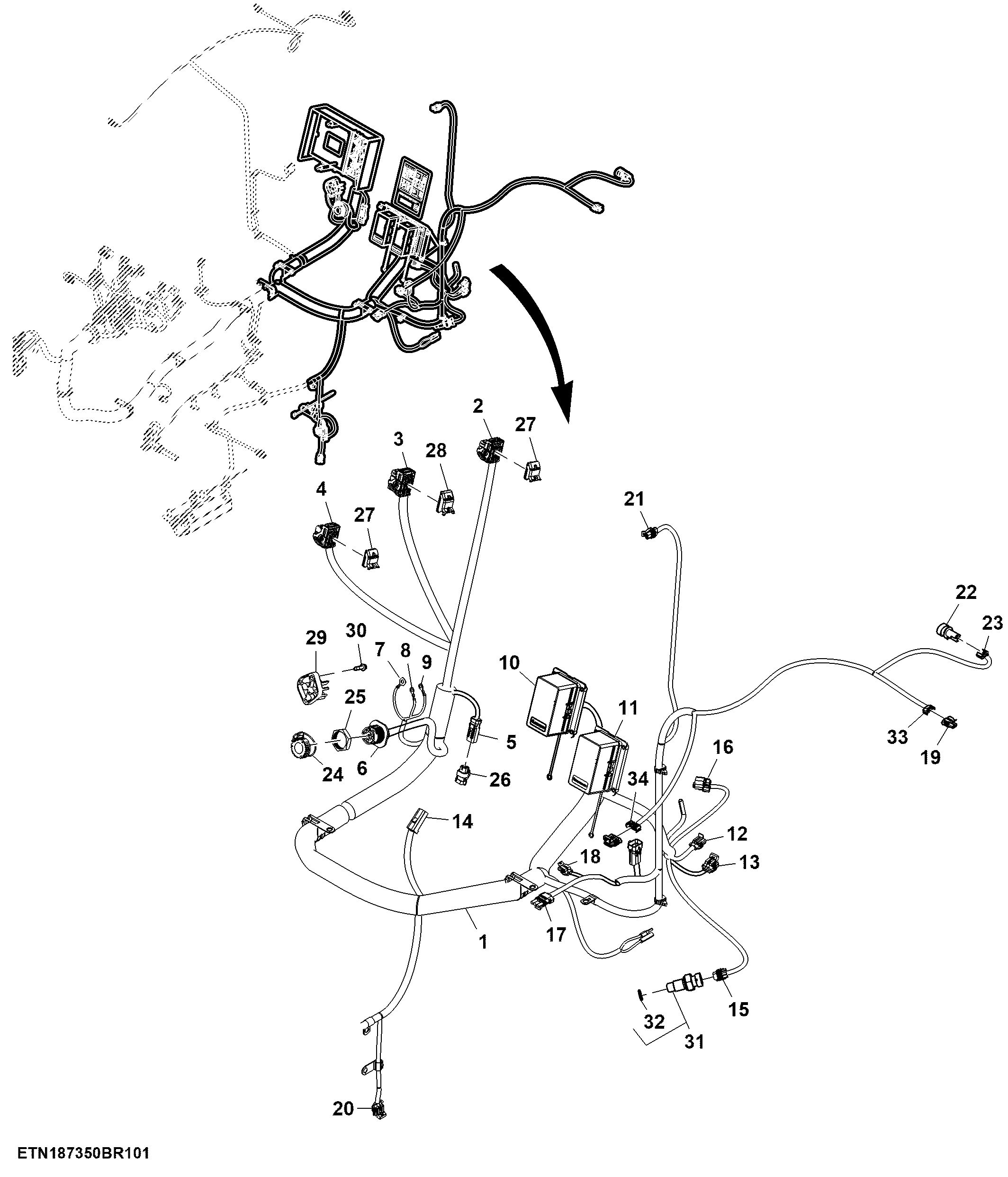

Wiring Harness, PowrReverser™, IOOS (1/5)
