Открытый узел

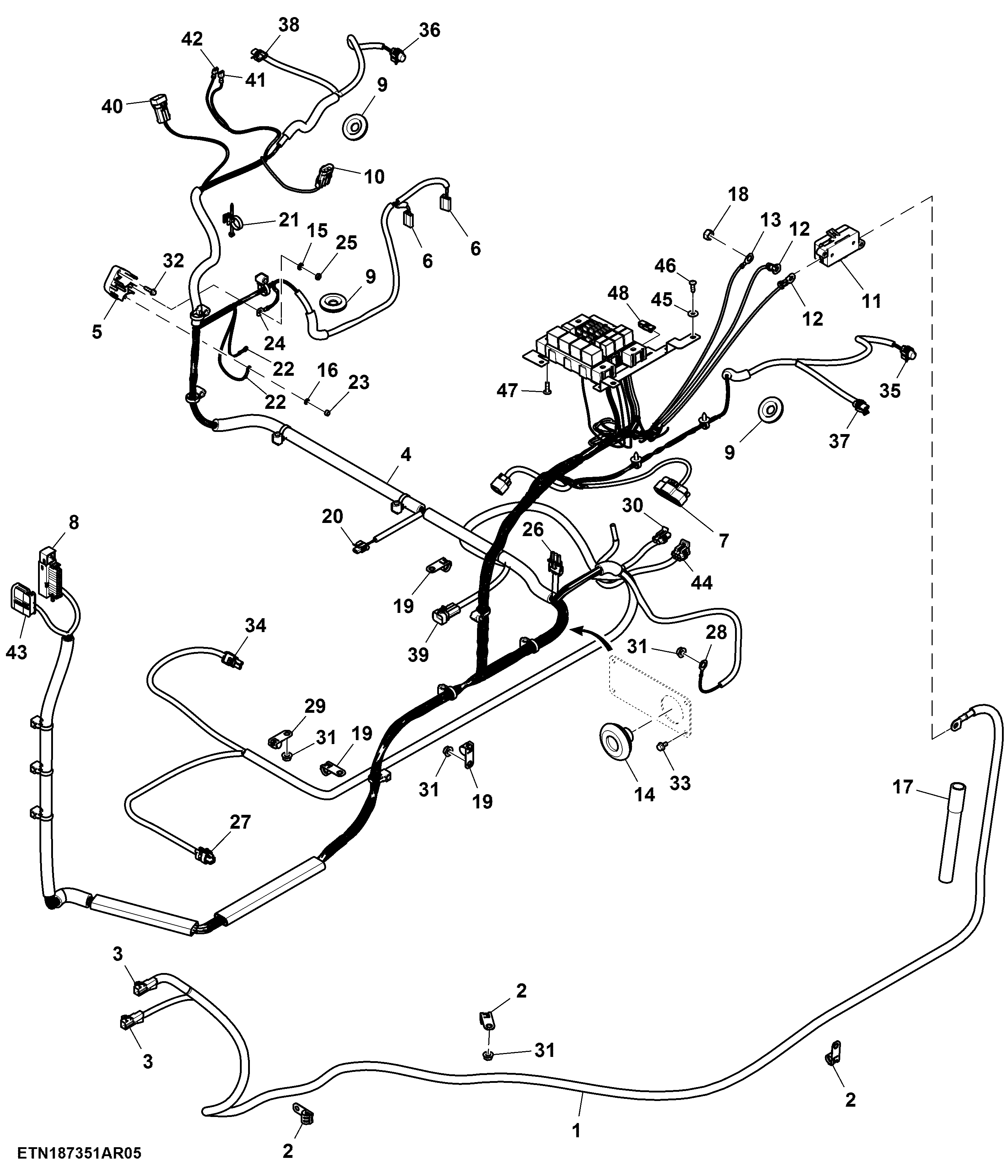

Wiring Harness, PowrReverser™, Cab, (4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ15404	1	Battery Cable	-
2	57M8856	6	Elec. Connector Accessory	-
3	57M8905	2	Elec. Connector Housing	-
4	SJ36904	1	Wiring Harness	SUB FOR SJ28986
5	RE186986	1	Junction Block	-
6	R77476	2	Electrical Connector Assy	-
7	57M8279	1	Elec. Connector Housing	Roof Harness
8	57M8944	1	Elec. Connector Housing	Front Console Connector 2
9	Z53033	3	Grommet	-
10	R78054	1	Electrical Connector Assy	Convenience Outlet
11	RE48875	1	Junction Block	-
12	57M8901	2	Elec. Connector Terminal	-
13	57M8865	1	Elec. Connector Terminal	-
14	R213135	2	Grommet	-
15	24M7088	1	Washer	6.600 X 12 X 1.600 mm
16	24M7087	2	Washer	5.500 X 10 X 1 mm
17	R281023	1	Hose	Water Valve Out
18	14M7274	1	Nut	M10
19	57M9432	4	Clamp	-
20	57M7328	1	Elec. Connector Housing	Seat Switch
21	AH225365	1	Clip	-
22	57M8875	2	Elec. Connector Terminal	-
23	14M7297	2	Nut	M5
24	57M9196	1	Elec. Connector Terminal	-
25	14M7194	1	Nut	M6
26	RE12364	2	Electrical Connector Assy	Hand Brake Switch
27	57M9726	1	Elec. Connector Housing	-
28	57M7894	1	Elec. Connector Terminal	-
29	57M9435	3	Clamp	-
30	57M7309	1	Elec. Connector Housing	Trailer Connector Extension 2
31	14M7298	8	Flange Nut	M8
32	37M7061	2	Screw	M5 X 20
33	19M7774	4	Screw	M6 X 12
34	RE12363	1	Electrical Connector Assy	Neutral Start Switch
35	57M7349	1	Elec. Connector Accessory	Left Tail Turn Lamp
36	57M7349	1	Elec. Connector Accessory	Right Tail Turn Lamp
37	57M7254	1	Elec. Connector Housing	Left License Plate Lamp
38	57M7254	1	Elec. Connector Housing	Right License Plate Lamp
39	57M7263	1	Elec. Connector Housing	Rear PTO Switch
40	57M7263	1	Elec. Connector Housing	Rear Wiper Option
41	57M8949	1	Elec. Connector Terminal	Power Outlet, Positive
42	57M8949	1	Elec. Connector Terminal	Power Outlet, Negative
43	57M8307	1	Elec. Connector Terminal	Cavity J
43	57M8329	2	Electrical Connector Assy	Cavity H, S
43	57M9446	1	Elec. Connector Seal	Cavity F
43	57M8321	3	Elec. Connector Terminal	Cavity K, L, M
43	57M9223	9	Elec. Connector Seal	Cavity Cavity B, C, D, E, G, J, N, P, R
43	57M8324	1	Elec. Connector Terminal	Cavity A
43	57M8301	3	Elec. Connector Terminal	Cavity K, L, M
43	57M9539	8	Elec. Connector Terminal	Cavity B, C, D, E, G, N, P, R
43	57M8309	1	Elec. Connector Terminal	Cavity A
43	57M8281	1	Elec. Connector Housing	Front Console Connector 1
44	57M7260	1	Elec. Connector Housing	Trailer Connector Extension 1
44	57M10770	1	Elec. Connector Terminal	Cavity A
44	57M7494	4	Elec. Connector Terminal	Cavity B, C, D, E
44	57M9215	5	Elec. Connector Seal	Cavity A, B, C, D, E
45	24M7251	4	Washer	6.400 X 18 X 1.600 mm
46	R224342	4	Screw	-
47	19M8649	4	Screw	M6 X 20
48	RE194287	1	Fuse Holder	-

Wiring Harness, PowrReverser™, Cab, (4/6)

Нет текстового описания
