Front Console Harness W/ PowrReverser™, 12 X 12, Cab

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L38802	1	Elec. Connector Terminal	Front Wiper Motor
2	57M7261	1	Elec. Connector Housing	Instrument Cluster J3
2	57M7296	1	Elec. Connector Accessory	-
2	57M7259	5	Elec. Connector Seal	Cavity A, B, C, D, H
2	57M7494	3	Elec. Connector Terminal	Cavity E, F, G
2	57M9215	3	Elec. Connector Seal	Cavity E, F, G
3	57M7262	1	Elec. Connector Housing	Instrument Cluster J1
3	57M10770	3	Elec. Connector Terminal	Cavity A, C, H
3	57M7494	1	Elec. Connector Terminal	Cavity B, D, G
3	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, G, H
3	57M7259	4	Elec. Connector Seal	Cavity E, F, J, K
3	57M8907	1	Elec.Connect Locking Device	-
4	57M7260	1	Elec. Connector Housing	Instrument Cluster J2
4	57M10770	1	Elec. Connector Terminal	Cavity A
4	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
4	57M9215	3	Elec. Connector Seal	Cavity A, B, D, E
4	57M7259	2	Elec. Connector Seal	Cavity C, F
4	57M7291	2	Electrical Connector Assy	-
5	57M9223	7	Elec. Connector Seal	Cavity A, J, M, N, P, R, S
5	57M9446	7	Elec. Connector Seal	Cavity B, C, D, E, F, G, K, L
5	57M8299	7	Elec. Connector Terminal	Cavity A, J, M, N, P, R, S
5	57M8484	1	Elec. Connector Housing	Instrument Cluster J4
5	57M9919	7	Elec. Connector Accessory	-
6	57M9776	1	Elec. Connector Housing	Cab Can Terminator
6	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
6	57M11134	1	Elec. Connector Housing	-
7	57M8281	1	Elec. Connector Housing	Module Harness
7	57M8309	1	Elec. Connector Terminal	Cavity A
7	57M9539	9	Elec. Connector Terminal	Cavity B, C, D, E, G, N, P, R, S
7	57M8301	3	Elec. Connector Terminal	Cavity K, L, M
7	57M8307	1	Elec. Connector Terminal	Cavity J
7	57M8324	1	Elec. Connector Terminal	Cavity A
7	57M9223	9	Elec. Connector Seal	Cavity B, C, D, E, G, N, P, R, S
7	57M8321	1	Elec. Connector Terminal	Cavity K, L, M
7	57M9446	1	Elec. Connector Seal	Cavity F
7	57M8329	2	Electrical Connector Assy	Cavity H, S
7	57M11996	1	Elec. Connector Accessory	-
8	57M7494	4	Elec. Connector Terminal	Cavity A, B, C, D
8	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
8	57M7840	1	Elec. Connector Housing	FNR Switch
8	57M7469	4	Electrical Connector Assy	-
9	Z61311	5	Elec. Connector Housing	Neutral PTO Off Relay
10	57M7182	1	Elec. Connector Housing	Diode Module
11	57M7261	1	Elec. Connector Housing	Brake Switch
11	57M10770	2	Elec. Connector Terminal	Cavity A, B
11	57M7494	2	Elec. Connector Terminal	Cavity C, D
11	57M7258	1	Elec. Connector Seal	Cavity A
11	57M9215	3	Elec. Connector Seal	Cavity B, C, D
11	57M7259	4	Elec. Connector Seal	Cavity E, F, G, H
12	57M8910	1	Clip	-
13	57M8076	1	Elec. Connector Terminal	-
13	57M7399	5	Elec. Connector Seal	Cavity 3, 7, 8, 19, 21
13	57M8515	12	Elec. Connector Seal	Cavity4, 5, 10, 11, 14, 23
13	57M8515	12	Elec. Connector Seal	Cavity 1, 2, 6, 9, 12, 13, 15, 16, 17, 18, 20, 22, 24
13	57M10371	1	Elec. Connector Terminal	Cavity 3, 7, 8, 19, 21
13	57M9042	12	Elec. Connector Terminal	Cavity 1, 2, 6, 9, 12, 13, 15, 16, 17, 18, 20, 22, 24
13	57M8084	1	Elec. Connector Accessory	-
13	57M8070	1	Elec. Connector Housing	Cab Harness Conenctor 2
14	57M8156	1	Elec. Connector Housing	Cab Harness Conenctor 1
14	57M11996	1	Elec. Connector Accessory	-
14	57M9446	3	Elec. Connector Seal	Cavity F, G
14	57M9223	3	Elec. Connector Seal	Cavity R
14	57M8324	3	Elec. Connector Terminal	Cavity A, H, S
14	57M8321	9	Elec. Connector Terminal	Cavity B, C, D, E, K, L, M, N, P
14	57M8299	1	Elec. Connector Terminal	Cavity R
14	57M8303	1	Elec. Connector Terminal	Cavity J
14	57M8300	9	Elec. Connector Terminal	Cavity B, C, D, E, K, L, M, N, P
14	57M8304	3	Elec. Connector Terminal	Cavity A, H, S
15	R77480	1	Electrical Connector Assy	Horn Switch
15	57M9462	1	Elec. Connector Terminal	Cavity 1
15	57M9199	1	Elec. Connector Terminal	Cavity 2
16	57M7183	1	Elec. Connector Accessory	Turn Signal Switch
16	57M11328	3	Elec. Connector Terminal	Cavity 1, 2, 3
17	RE262484	1	Diode	Module SUB FOR RE153894
17	57M7495	2	Elec. Connector Terminal	Cavity A, B
18	57M9215	3	Elec. Connector Seal	Cavity A, B, C
18	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
18	57M7255	1	Elec. Connector Housing	Power Shuttle Control
18	57M7290	1	Elec. Connector Accessory	-
19	RE46736	1	Electrical Connector Assy	Key Switch USE WITH SJ12047
19	57M11328	4	Elec. Connector Terminal	Cavity ACC, AID, ELX, ST
19	57M14106	2	Elec. Connector Terminal	Cavity BAT1, IGN
19	L78202	1	Elec. Connector Housing	Key Switch USE WITH SJ32901
20	57M8873	2	Elec. Connector Terminal	Start Relay Pin C
21	57M7256	1	Elec. Connector Housing	Audible Alarm
21	57M9712	1	Elec. Connector Accessory	-
21	57M7495	2	Elec. Connector Terminal	Cavity A, B
21	57M9215	2	Elec. Connector Seal	Cavity A, B
22	57M7494	1	Elec. Connector Terminal	Cavity A, B, C, D, E, F
22	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
22	57M9215	1	Elec. Connector Seal	Cavity A, B, C, D, E, F
22	57M7260	1	Elec. Connector Housing	Clutch Assembly
23	57M7256	1	Elec. Connector Housing	Start Relay Coil
23	57M9712	1	Elec. Connector Accessory	-
23	57M7495	2	Elec. Connector Terminal	Cavity A, B
23	57M9215	2	Elec. Connector Seal	Cavity A, B
24	AL76702	5	Relay	12 V
25	57M7839	1	Electrical Connector Assy	Hood Harness
25	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
25	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
25	57M8910	1	Clip	Cavity A, B, C, D
25	57M7469	1	Electrical Connector Assy	Cavity A, B, C, D
26	57M7309	1	Elec. Connector Housing	A/C Compressor Clutch
26	57M7304	1	Elec. Connector Housing	-
26	57M7306	2	Elec.Connect Locking Device	-
26	R78064	2	Elec. Connector Cavity Plug	-
26	57M7297	2	Elec. Connector Terminal	Cavity A, B
27	R213135	1	Grommet	-
28	T28583	1	Elec. Connector Housing	Light Switch B
28	57M7172	1	Elec. Connector Terminal	Cavity 1
29	T28583	1	Elec. Connector Housing	Light Switch FL
29	57M7172	1	Elec. Connector Terminal	Cavity 1
30	T28583	1	Elec. Connector Housing	Light Switch W
30	57M7172	1	Elec. Connector Terminal	Cavity 1
31	57M7172	1	Elec. Connector Terminal	Cavity 1
31	T28583	1	Elec. Connector Housing	Light Switch HD1
32	T28583	1	Elec. Connector Housing	Light Switch HD2
32	57M7172	1	Elec. Connector Terminal	Cavity 1
33	RE46735	1	Electrical Connector Assy	Wiper Switch
33	57M7429	4	Elec. Connector Terminal	Cavity 1, 2, B, L
33	57M7511	3	Elec. Connector Terminal	Cavity 3, 4, P
34	57M7263	1	Elec. Connector Housing	MFWD Switch
34	57M7263	1	Elec. Connector Housing	-
34	57M7495	3	Elec. Connector Terminal	Cavity A, B, C
34	57M9215	3	Elec. Connector Seal	Cavity A, B, C
34	57M7259	3	Elec. Connector Seal	Cavity D, E, F
35	57M8866	1	Elec. Connector Terminal	Chassis Ground
36	SJ32901	1	Wiring Harness	SUB FOR SJ12047
37	57M10717	1	Elec. Connector Housing	Cab Harness 3
37	57M9919	1	Elec. Connector Accessory	-
37	57M9539	1	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K, L, M, O, P, R
37	57M9223	1	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J, K, L, M, O, P, R
37	57M9446	1	Elec. Connector Seal	Cavity S
38	57M9215	2	Elec. Connector Seal	Cavity A, B
38	57M9712	1	Elec. Connector Accessory	-
38	57M7985	1	Electrical Connector Assy	Roll Mode Switch
38	57M7495	2	Elec. Connector Terminal	Cavity A, B
39	57M8873	1	Elec. Connector Terminal	Start Relay Pin C
40	Z61311	1	Elec. Connector Housing	High Beam Relay
40	Z61303	2	Elec. Connector Terminal	Cavity 1, 2
40	57M10980	2	Elec. Connector Terminal	Cavity 3, 5
41	Z61311	1	Elec. Connector Housing	Low Beam Relay
41	Z61303	1	Elec. Connector Terminal	Cavity 1, 2
41	57M10980	1	Elec. Connector Terminal	Cavity 3, 5
42	57M8329	6	Electrical Connector Assy	Cavity, B, D
42	57M8322	6	Elec. Connector Terminal	Cavity, F, K, L, M, R, N
42	57M8323	3	Elec. Connector Terminal	Cavity, C, E, J
42	57M8324	3	Elec. Connector Terminal	Cavity A, G, H, P
42	57M8306	3	Elec. Connector Terminal	Cavity F, K, L, M, N, R
42	57M8307	3	Elec. Connector Terminal	Cavity C, E, J
42	57M8309	3	Elec. Connector Terminal	Cavity A, G, H, P
42	57M11955	1	Elec. Connector Accessory	-
42	57M8910	1	Clip	-
42	57M8280	1	Elec. Connector Housing	Engine Harness

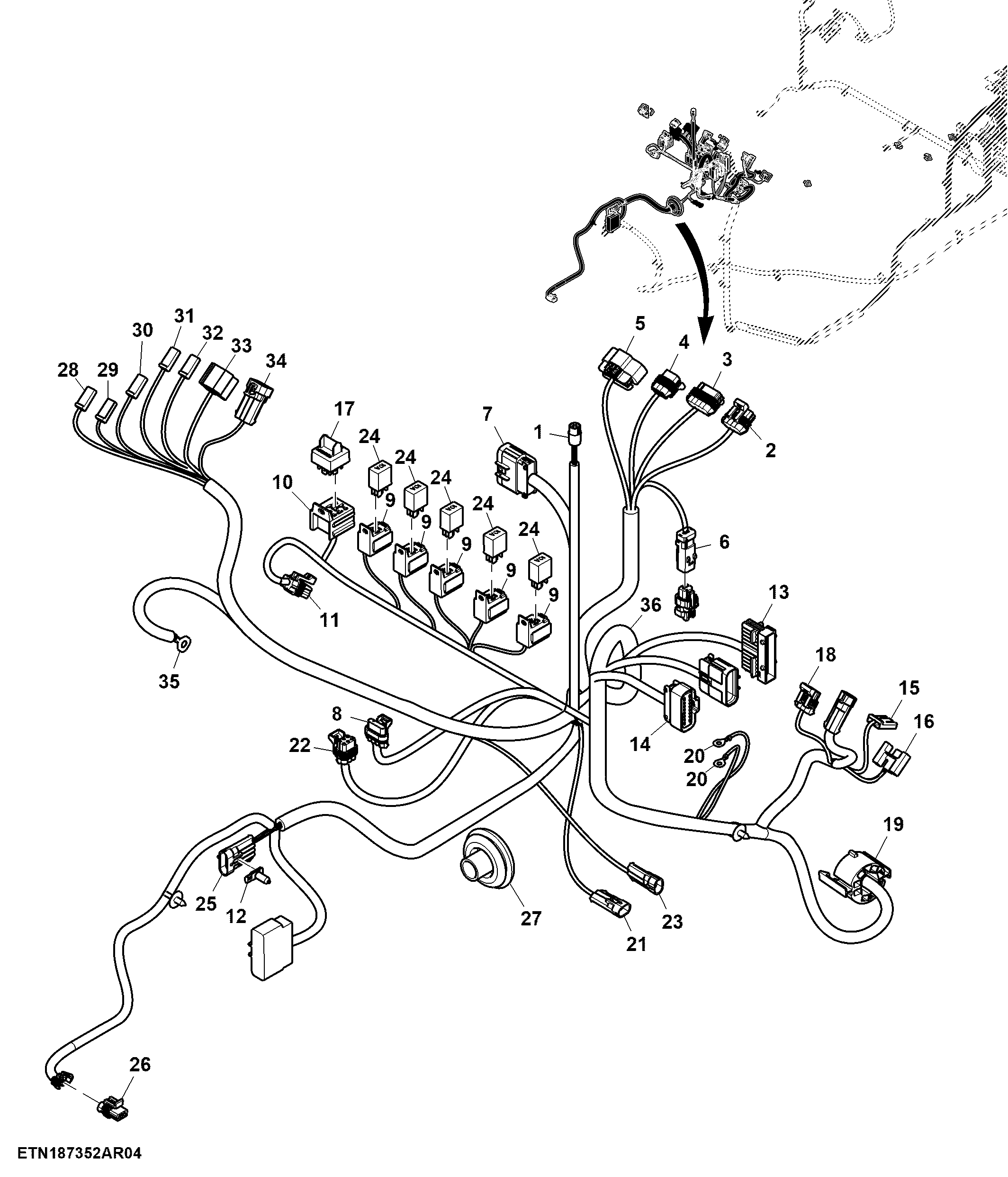

Front Console Harness W/ PowrReverser™, 12 X 12, Cab
