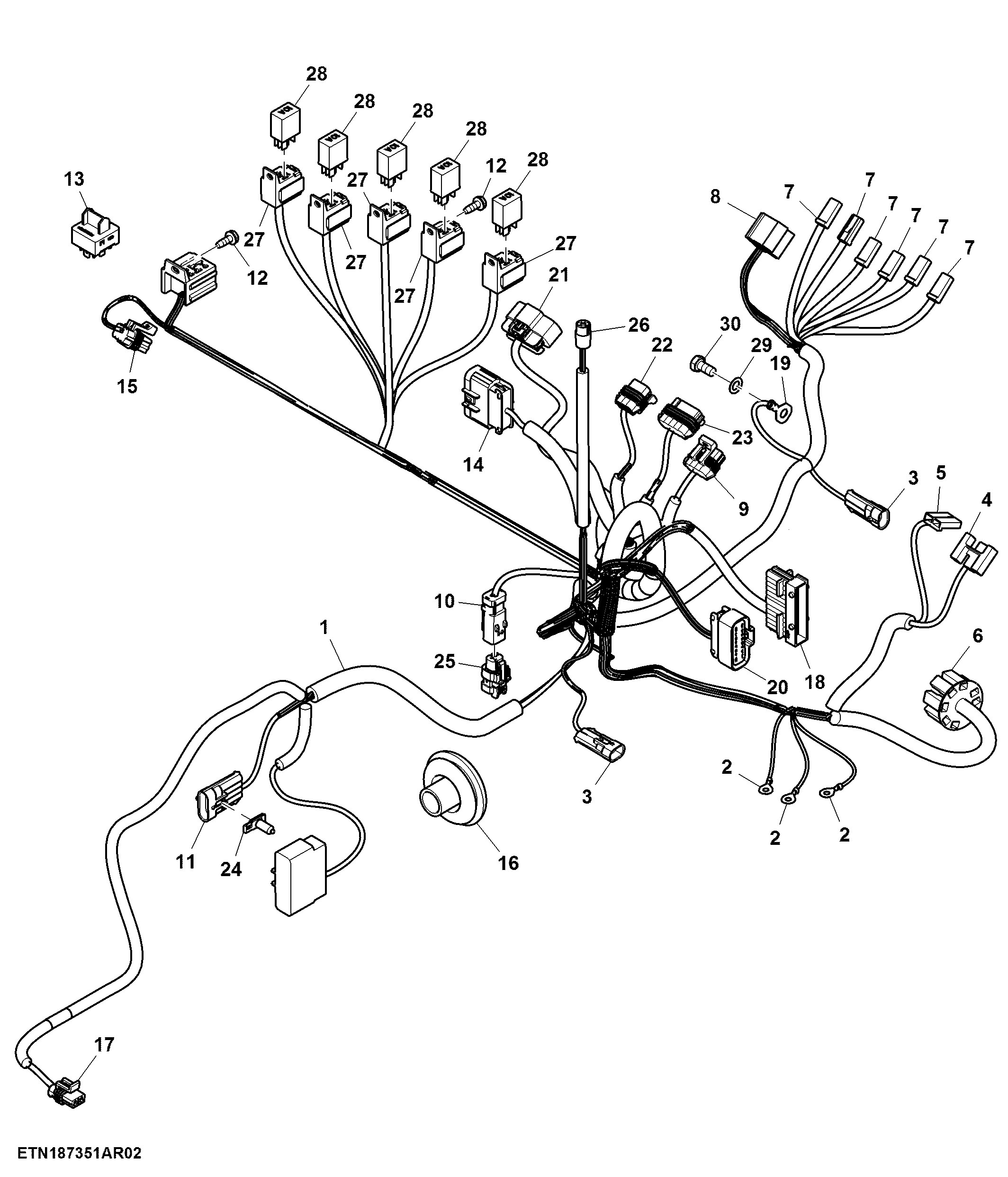

Front Console Harness, W/O PowrReverser™ Cab (5/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32900	1	Wiring Harness	-
1	SJ11336	1	Wiring Harness	ORDER SJ32900
2	57M8873	3	Elec. Connector Terminal	-
3	57M7256	2	Elec. Connector Housing	Audible Alarm
3	57M7495	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M7183	1	Elec. Connector Accessory	Turn Signal Switch
4	57M11328	3	Elec. Connector Terminal	Cavity 1, 2, 3
5	R77480	1	Electrical Connector Assy	Horn Switch
5	57M9462	1	Elec. Connector Terminal	-
5	57M9199	1	Elec. Connector Terminal	-
6	L78202	1	Elec. Connector Housing	USE WITH SJ32900
6	RE46736	1	Electrical Connector Assy	USE WITH SJ11336
6	57M11328	4	Elec. Connector Terminal	-
6	57M14106	2	Elec. Connector Terminal	-
7	T28583	6	Elec. Connector Housing	-
8	57M7429	4	Elec. Connector Terminal	Cavity 1, 2, B, L
8	57M7511	3	Elec. Connector Terminal	Cavity 3, 4, P
8	RE46735	1	Electrical Connector Assy	Wiper Switch
9	57M7261	1	Elec. Connector Housing	Instrument Cluster J3
9	57M7494	3	Elec. Connector Terminal	Cavity E, F, G
9	57M9215	3	Elec. Connector Seal	Cavity E, F, G
9	57M7259	5	Elec. Connector Seal	Cavity A, B, C, D, H
10	57M9776	1	Elec. Connector Housing	-
11	57M7839	1	Electrical Connector Assy	Hood Harness
11	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
11	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
12	RE153894	1	Diode	-
13	RE262484	1	Diode	-
14	57M8281	1	Elec. Connector Housing	Module Harness
15	57M7261	1	Elec. Connector Housing	Brake Switch
16	R213135	2	Grommet	-
17	57M9219	2	Elec. Connector Seal	Cavity A, B
17	57M7309	1	Elec. Connector Housing	AC Compressor Clutch
17	57M7297	2	Elec. Connector Terminal	Cavity A, B
18	57M8070	1	Elec. Connector Housing	Cab Harness Connector 2
18	57M9042	12	Elec. Connector Terminal	Cavity 4, 5, 9,10, 11, 14, 15, 16, 17, 20, 22, 23
18	57M10371	4	Elec. Connector Terminal	Cavity 7, 8, 19, 21
18	57M8515	12	Elec. Connector Seal	Cavity 4, 5, 9, 10, 11, 14, 15, 16, 17, 20, 22, 23
18	57M7399	4	Elec. Connector Seal	Cavity 7, 8, 19, 21
18	57M7401	8	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 6, 12, 13, 18, 24
19	57M8866	1	Elec. Connector Terminal	-
20	57M8156	1	Elec. Connector Housing	Cab Harness Connector 1
20	57M8304	3	Elec. Connector Terminal	Cavity A, H, S
20	57M8300	9	Elec. Connector Terminal	Cavity B, C, D, E, K, L, M, N, P
20	57M8324	3	Elec. Connector Terminal	Cavity A, H, S
20	57M8321	9	Elec. Connector Terminal	Cavity B, C, D, E, K, L, M, N, P
20	57M9446	2	Elec. Connector Seal	Cavity G, H
21	57M9446	9	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, R, S
21	57M9223	6	Elec. Connector Seal	Cavity J, K, L, M, N, P
21	57M8321	1	Elec. Connector Terminal	Cavity H
21	57M8300	1	Elec. Connector Terminal	Cavity H
21	57M8484	1	Elec. Connector Housing	Instrument Cluster J4
21	57M8299	6	Elec. Connector Terminal	Cavity J, K, L, M, N, P
22	57M7260	1	Elec. Connector Housing	Instrument Cluster J2
23	57M7262	1	Elec. Connector Housing	Instrument Cluster J1
23	57M10770	3	Elec. Connector Terminal	Cavity A, C, H
23	57M7494	7	Elec. Connector Terminal	Cavity B, D, E, F, G, J, K
23	57M9215	10	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H, J, K
24	57M8910	1	Clip	-
25	57M9772	1	Elec. Connector Housing	-
26	L38802	1	Elec. Connector Terminal	Front Wiper Motor
27	Z61311	5	Elec. Connector Housing	-
28	AL76702	5	Relay	USE WITH SJ32900
28	57M8853	3	Relay	USE WITH SJ11336
29	12M7122	1	Lock Washer	8.400 mm
30	19M3127	1	Cap Screw	M8 X 16
31	37M7361	2	Screw	M6 X 16
