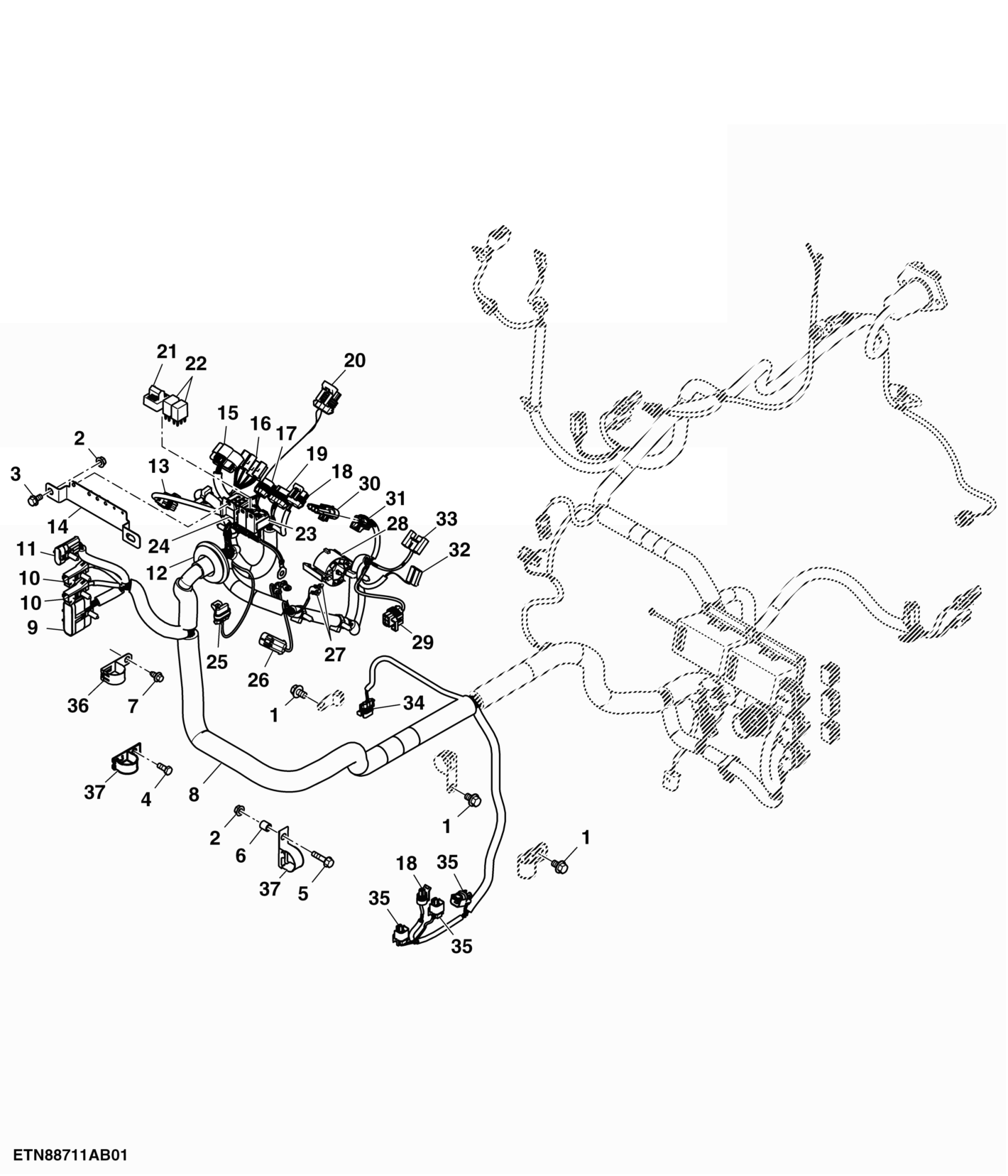

Wiring Harness, P/R, Open Operator Station

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7783	6	Screw	M10 X 16
2	14M7298	5	Flange Nut	M8
3	19M7865	2	Screw	M8 X 16
4	19M7139	1	Cap Screw	M8 X 20
5	19M7897	1	Screw	M8 X 35
6	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
7	37M7092	1	Screw	M8 X 16
8	SJ17405	1	Wiring Harness	-
9	57M8280	1	Elec. Connector Housing	-
10	57M8905	2	Elec. Connector Housing	-
11	57M7839	1	Electrical Connector Assy	-
12	R138078	1	Grommet	SUB FOR R213135
13	57M7261	1	Elec. Connector Housing	-
14	SU23150	1	Bracket	-
15	57M8484	6	Elec. Connector Housing	-
16	57M8815	1	Elec. Connector Housing	-
17	57M7260	1	Elec. Connector Housing	-
18	57M7796	1	Elec. Connector Housing	-
19	57M7262	1	Elec. Connector Housing	-
20	57M7255	1	Elec. Connector Housing	-
21	RE262484	1	Diode	-
22	AL76702	1	Relay	-
23	Z61311	2	Elec. Connector Housing	-
24	57M7182	1	Elec. Connector Housing	-
25	57M7840	1	Elec. Connector Housing	-
26	57M7256	1	Elec. Connector Housing	-
27	57M8896	2	Elec. Connector Accessory	-
28	RE46736	1	Electrical Connector Assy	-
29	57M7260	1	Elec. Connector Housing	-
30	57M7257	1	Elec. Connector Housing	-
31	57M7255	1	Elec. Connector Housing	-
32	R77480	1	Electrical Connector Assy	-
33	57M7183	1	Elec. Connector Accessory	-
34	57M7255	1	Elec. Connector Housing	-
35	57M8924	1	Elec. Connector Housing	-
36	57M9412	2	Clamp	-
37	57M9881	3	Clamp	-

Wiring Harness, P/R, Open Operator Station

Нет текстового описания
