Открытый узел

Transmission Wiring Harness (2/4)

Transmission Wiring Harness (2/4)

Transmission Wiring Harness (2/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

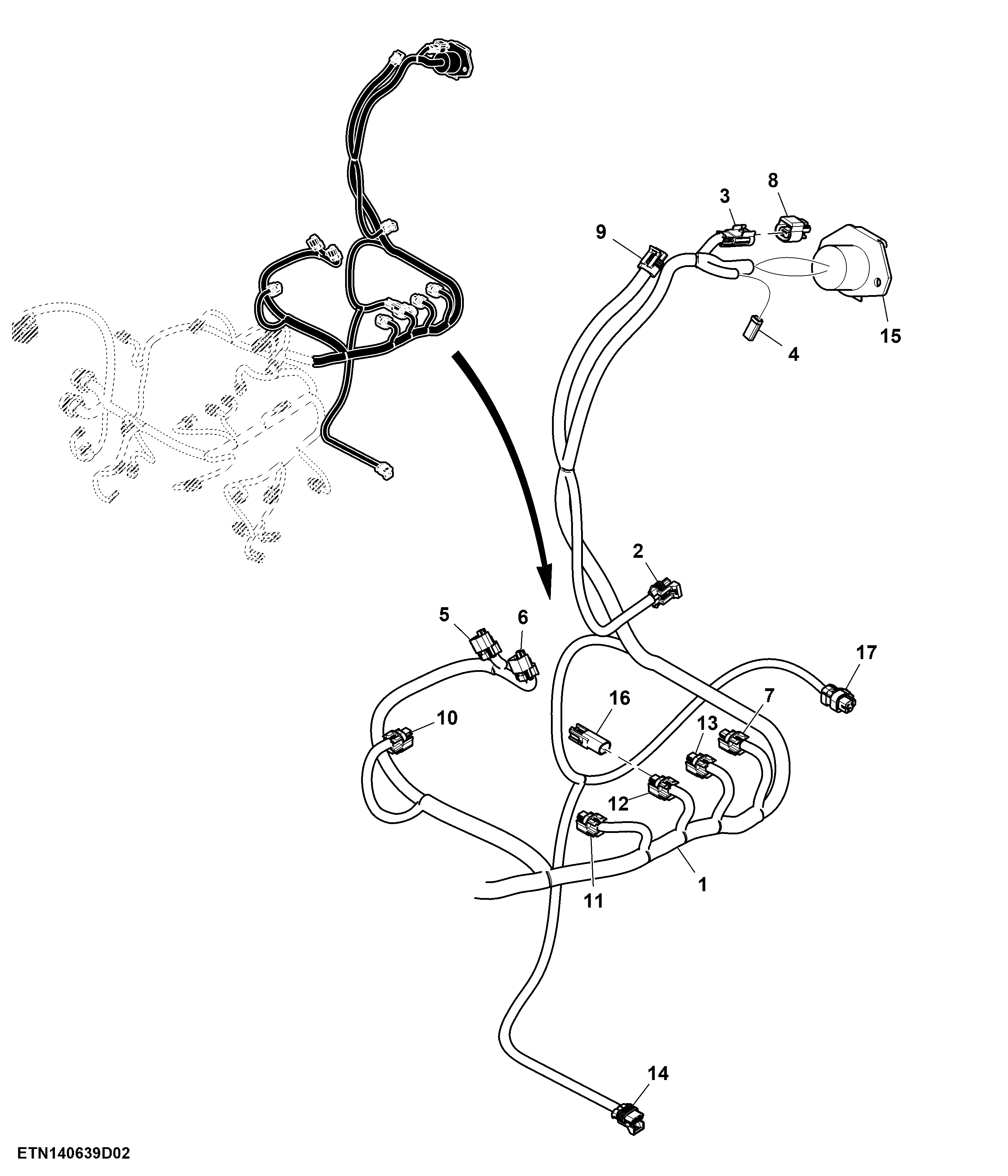

Transmission Wiring Harness (2/4)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ29252	1	Chassis Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Hitch Draft Sensor B18
2	57M9214	3	Elec. Connector Seal	Cavity A, B, C
2	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
2	57M7317	1	Elec. Connector Accessory	-
2	57M7290	1	Elec. Connector Accessory	-
2	57M9214	3	Elec. Connector Seal	-
3	57M8215	1	Electrical Connector Assy	Back Up Alaram H06
3	57M9446	1	Elec. Connector Seal	-
3	57M11557	2	Elec. Connector Accessory	-
3	57M8301	2	Elec. Connector Terminal	Cavity A, B
3	57M9223	2	Elec. Connector Seal	Cavity A, B
4	57M8815	1	Elec. Connector Housing	-
5	57M8603	2	Elec. Connector Seal	Cavity A, B
5	57M8602	2	Elec. Connector Terminal	Cavity A, B
5	57M8633	1	Elec. Connector Accessory	-
5	57M8924	1	Elec. Connector Housing	MFWD OFF Y02
6	57M8924	1	Elec. Connector Housing	Differential Lock Solenoid Y11
6	57M8633	1	Elec. Connector Accessory	-
6	57M8602	2	Elec. Connector Terminal	Cavity A, B
6	57M8603	2	Elec. Connector Seal	Cavity A, B
7	57M8924	1	Elec. Connector Housing	Enable Supply Y201
7	57M8633	1	Elec. Connector Accessory	-
7	57M8602	2	Elec. Connector Terminal	Cavity A, B
7	57M8603	2	Elec. Connector Seal	Cavity A, B
8	57M8213	1	Elec. Connector Housing	-
9	57M8603	2	Elec. Connector Seal	Cavity C, D
9	57M8566	2	Elec. Connector Seal	Cavity A, B
9	57M8560	2	Elec. Connector Terminal	Cavity A, B
9	57M13475	1	Elec. Connector Accessory	-
9	57M13599	1	Elec. Connector Housing	Hitch Stepper Motor M301
9	57M8602	2	Elec. Connector Terminal	Cavity C, D
10	57M9210	1	Elec. Connector Housing	PTO Solenoid Y01
10	57M8633	1	Elec. Connector Accessory	-
10	57M8602	2	Elec. Connector Terminal	Cavity A, B
10	57M8603	2	Elec. Connector Seal	Cavity A, B
11	57M9210	1	Elec. Connector Housing	Low Propotional Y208
11	57M8633	1	Elec. Connector Accessory	-
11	57M8602	2	Elec. Connector Terminal	Cavity A, B
11	57M8603	2	Elec. Connector Seal	Cavity A, B
12	57M8602	2	Elec. Connector Terminal	Cavity A, B
12	57M8603	2	Elec. Connector Seal	Cavity A, B
12	57M9112	2	Elec. Connector Cavity Plug	-
12	57M8633	2	Elec. Connector Accessory	-
12	57M9210	1	Elec. Connector Housing	High Propotional Y205
13	57M9210	1	Elec. Connector Housing	Reverse Propotional Y206
13	57M8633	2	Elec. Connector Accessory	-
13	57M8602	2	Elec. Connector Terminal	Cavity A, B
13	57M8603	2	Elec. Connector Seal	Cavity A, B
14	57M7255	1	Elec. Connector Housing	Hitch Position Sensor B19
14	57M7290	1	Elec. Connector Accessory	-
14	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
14	57M9214	3	Elec. Connector Seal	Cavity A, B, C
15	AR75695	1	Socket Outlet	Trailer Connector X01-R4
16	57M9222	1	Elec. Connector Housing	-
17	57M9775	1	Elec. Connector Housing	PTO Speed Sensor B06
17	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
