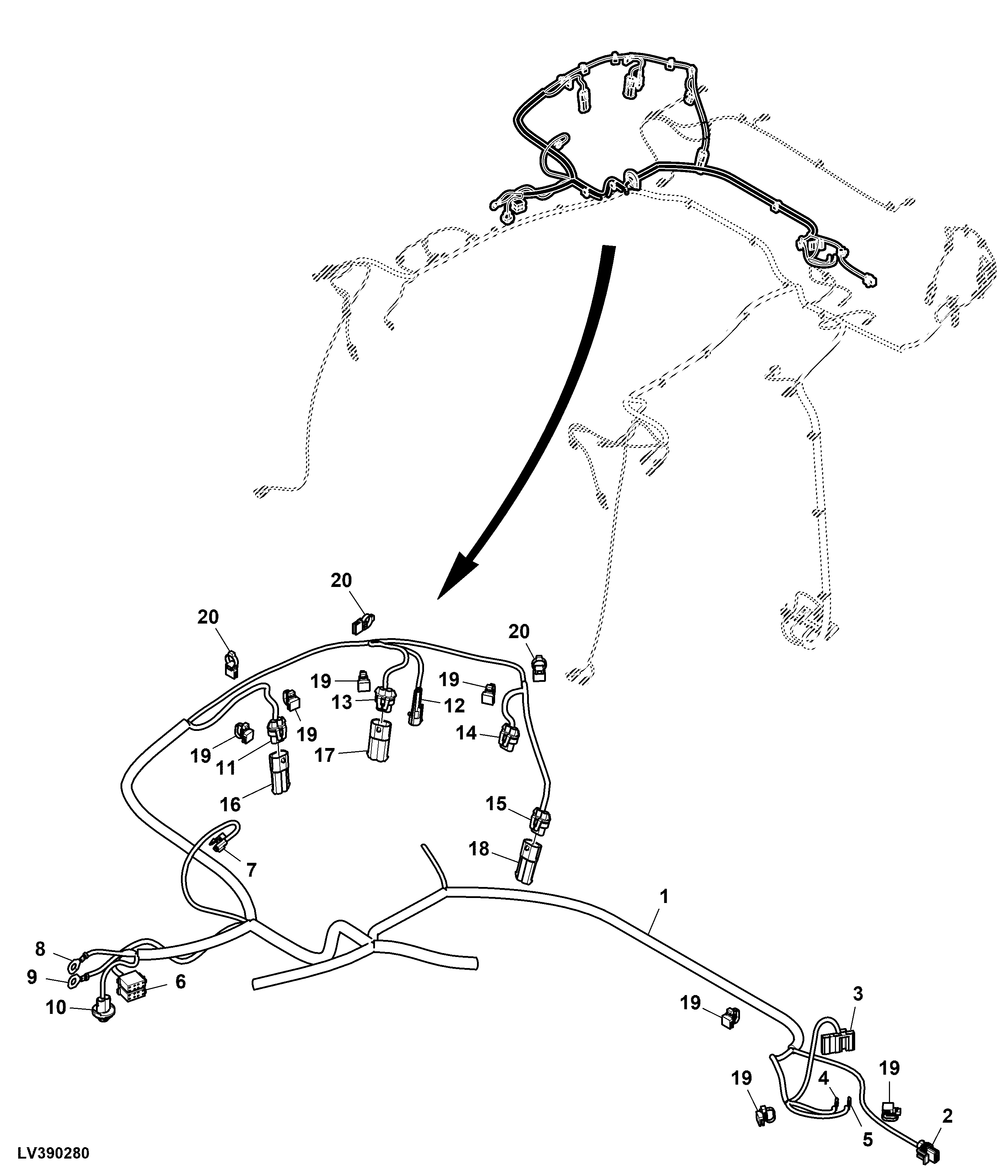

Roof Wiring Harness (4/4)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31977	1	Roof Wiring Harness	SUB FOR SJ29255, SJ27078 AND SJ29254
2	57M7309	1	Elec. Connector Housing	Blower Motor M02, LH
2	57M7306	1	Elec.Connect Locking Device	-
2	57M7299	2	Elec. Connector Terminal	Cavity A, B
2	57M9217	2	Elec. Connector Seal	Cavity A, B
3	57M7457	1	Elec. Connector Housing	Resistor R03
3	57M9200	3	Elec. Connector Terminal	Cavity A, C, D
4	57M9200	1	Elec. Connector Terminal	A/C Deicing In XB07-1
5	57M9200	1	Elec. Connector Terminal	A/C Deicing Out XB07-2
6	57M8781	1	Elec. Connector Housing	Radio A+B XA04
6	57M12009	7	Elec. Connector Terminal	Cavity A4, A5, A7, B3, B4, B5, B6
6	57M10226	1	Elec. Connector Terminal	Cavity A8
7	57M8293	2	Elec. Connector Terminal	Cavity A, B
7	57M7724	1	Electrical Connector Assy	-
7	57M8174	1	Elec. Connector Housing	Speaker B240, RH
8	57M8866	1	Elec. Connector Terminal	Ground Ring XGND9-2
9	57M8866	1	Elec. Connector Terminal	Ground Ring XGND9-1
10	57M8436	1	Socket	Hand Console Lamp E18, RH
10	57M8313	2	Elec. Connector Terminal	Cavity A, B
10	57M10845	2	Elec. Connector Cable Seal	Cavity A, B
11	57M8839	1	Elec. Connector Housing	Rear Work Lamp E12, RH
11	57M8129	2	Elec. Connector Terminal	-
11	57M8958	1	Elec. Connector Housing	-
11	R78064	2	Elec. Connector Cavity Plug	-
11	57M7491	2	Elec. Connector Terminal	Cavity A, B
11	57M9218	2	Elec. Connector Seal	Cavity A, B
12	57M7256	1	Elec. Connector Housing	Rear Warning Lamp H10, RH
12	57M9215	2	Elec. Connector Seal	Cavity A, B
12	R104919	2	Elec. Connector Terminal	Cavity A, B
12	57M7259	2	Elec. Connector Seal	-
12	57M7254	1	Elec. Connector Housing	-
12	57M9712	2	Elec. Connector Accessory	-
13	57M8839	1	Elec. Connector Housing	Cab Rear Work Lamp E06, RH
13	57M8129	2	Elec. Connector Terminal	-
13	57M8958	1	Elec. Connector Housing	-
13	R78064	2	Elec. Connector Cavity Plug	-
13	57M7491	2	Elec. Connector Terminal	Cavity A, B
13	57M9218	2	Elec. Connector Seal	Cavity A, B
14	57M9218	2	Elec. Connector Seal	Cavity A, B
14	57M7491	2	Elec. Connector Terminal	Cavity A, B
14	57M8129	1	Elec. Connector Terminal	-
14	57M8839	1	Elec. Connector Housing	Cab Rear Work Lamp E10, RH
15	57M8839	1	Elec. Connector Housing	Rear Outer Worklight E29, RH
15	57M8129	2	Elec. Connector Terminal	-
15	57M8958	1	Elec. Connector Housing	-
15	R78064	2	Elec. Connector Cavity Plug	-
15	57M7491	2	Elec. Connector Terminal	Cavity A, B
15	57M9218	2	Elec. Connector Seal	Cavity A, B
16	57M8958	1	Elec. Connector Housing	Dust Cap
17	57M8958	1	Elec. Connector Housing	Dust Cap
18	57M8958	1	Elec. Connector Housing	Dust Cap
19	57M9229	10	Clip	-
20	57M10362	3	Clamp	-
