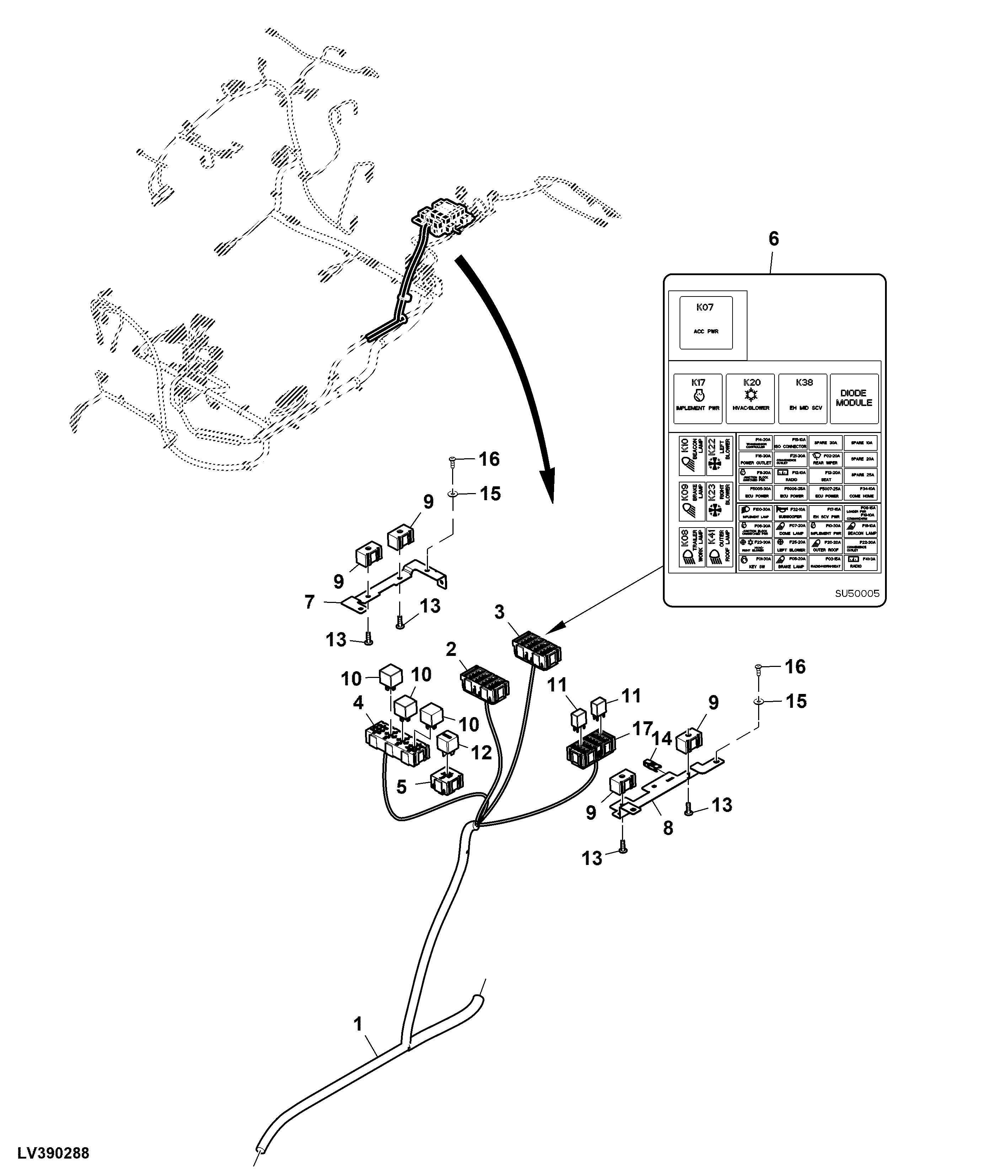

Cab Wiring Harness, Command Arm™ (7/8)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ31974	1	Cab Wiring Harness	SUB FOR SJ29259
2	57M8756	1	Elec. Connector Accessory	Load Center Block 2 BLK2
2	57M9138	1	Elec.Connect Locking Device	-
2	57M8295	13	Elec. Connector Terminal	Cavity D1, D3, E1, F1, F4, G1, G2, G3, G4, H1, H2, H3, H4
2	57M8296	6	Elec. Connector Terminal	Cavity A1, B1, D4, E2, F2, F3
2	57M8297	5	Elec. Connector Terminal	Cavity B3, B4, D2, D4, F4
2	57M8298	1	Elec. Connector Terminal	Cavity B4
2	57M8886	3	Elec. Connector Terminal	Cavity C1, G3, H3
3	57M9138	4	Elec.Connect Locking Device	-
3	57M8886	4	Elec. Connector Terminal	Cavity A3, C2, F4, J4
3	57M8298	7	Elec. Connector Terminal	Cavity A2, B1, C1, D2, E1, F1, G4
3	57M8297	1	Elec. Connector Terminal	Cavity J2
3	57M8296	10	Elec. Connector Terminal	Cavity A1, D1, D3, D4, F3, G1, G2, G3, J1, J3
3	57M8295	4	Elec. Connector Terminal	Cavity A4, C3, C4, F2
3	57M9142	1	Elec. Connector Accessory	-
3	57M8760	6	Elec. Connector Accessory	-
3	57M8756	1	Elec. Connector Accessory	Load Center Block 3 BLK3
4	57M8292	4	Elec. Connector Terminal	Cavity R1-86, R2-86, R3-86, R4-87A
4	Z70804	2	Elec. Connector Terminal	Cavity R2-30, R2-87
4	57M7512	2	Elec. Connector Terminal	Cavity R1-30, R1-87
4	57M7429	8	Elec. Connector Terminal	Cavity R1-85, R1-85, R2-85, R3-30, R3-85, R3-87, R4-85, R4-86
4	LVA13729	3	Relay	-
4	57M9153	15	Elec.Connect Locking Device	-
4	57M9152	1	Elec. Connector Housing	Load Center Block 4 BLK4
4	RE262484	1	Diode	-
5	57M8754	1	Elec. Connector Accessory	Load Center Block 5 BLK5
5	57M8755	1	Elec.Connect Locking Device	-
5	57M10980	2	Elec. Connector Terminal	Cavity 85, 86
5	57M8938	1	Elec. Connector Terminal	Cavity 30
6	SU50005	1	Label	Fuse
7	R256599	1	Bracket	Load Center Lower
8	R256598	1	Bracket	Load Center Upper
9	57M8749	4	Elec. Connector Accessory	-
10	RE68327	3	Relay	12 V
11	SJ15809	6	Relay	10 A
12	AT322221	1	Relay	70 A
13	19M8649	4	Screw	M6 X 20
14	RE194287	1	Fuse Holder	-
15	24M7251	4	Washer	6.400 X 18 X 1.600 mm
16	R224342	4	Screw	-
17	57M8756	1	Elec. Connector Accessory	Load Center Block 1 BLK1
17	57M9138	4	Elec.Connect Locking Device	-
17	57M8295	4	Elec. Connector Terminal	Cavity G1, H1, H2, H4
17	57M8296	7	Elec. Connector Terminal	Cavity D1, D2, D4, F1, F3, G1, H1
17	57M8297	4	Elec. Connector Terminal	Cavity B2, B3, F2, H3
17	57M8298	4	Elec. Connector Terminal	Cavity B1, B4, D3, F4
17	57M8886	1	Elec. Connector Terminal	Cavity H4
