60 Steering and Brakes 5090R, 5090RN

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание

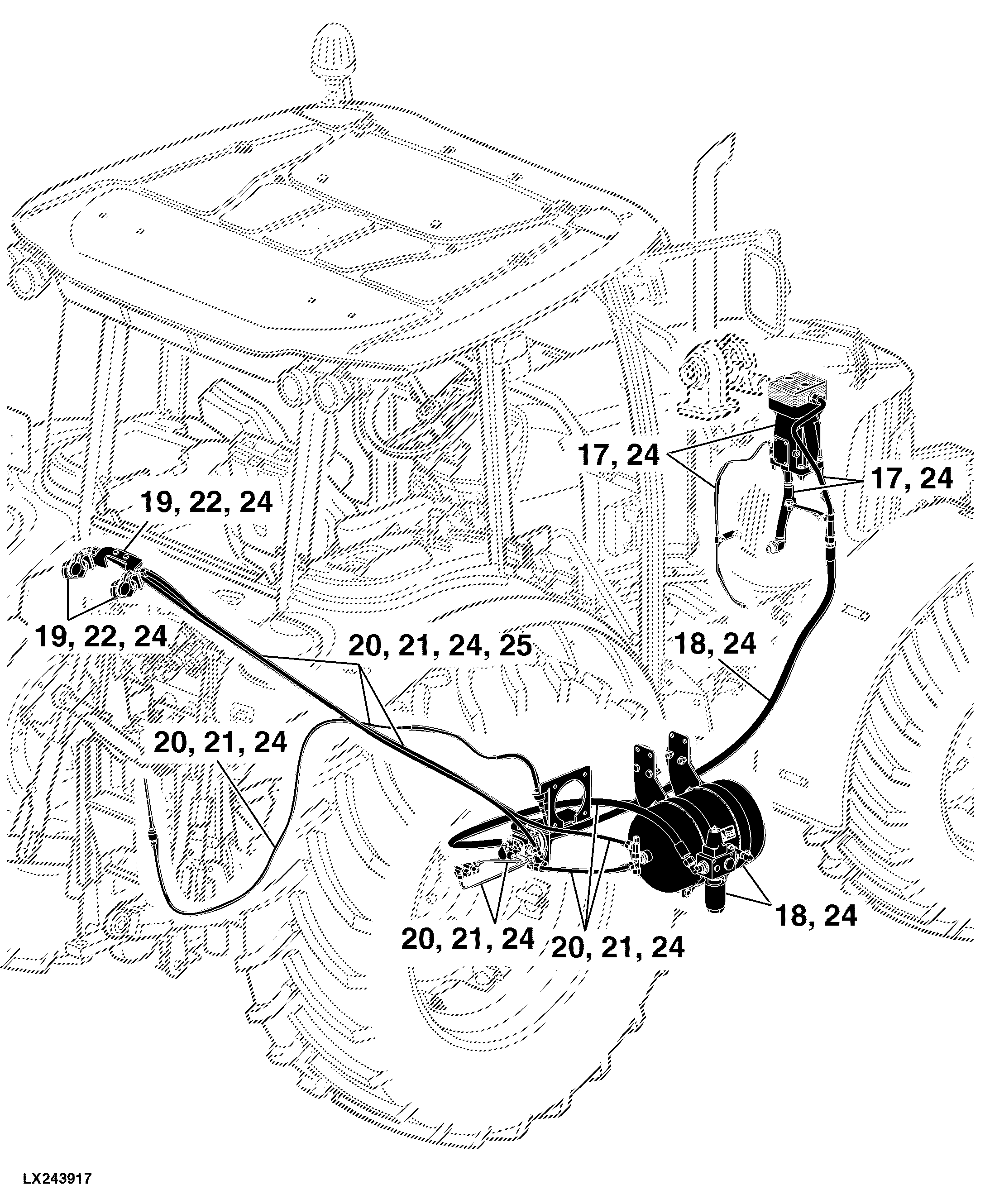

-	-	1	HITCH COUPLERS FOR TRAILER AIR BRAKE	-
-	-	1	TRAILER AIR BRAKE LINES (2-LINE PLUS 1-LINE SYSTEM) FIELD INSTALLATION KIT (W/O AIR CONDITIONING)	-
-	-	1	TRAILER AIR BRAKE LINES	-

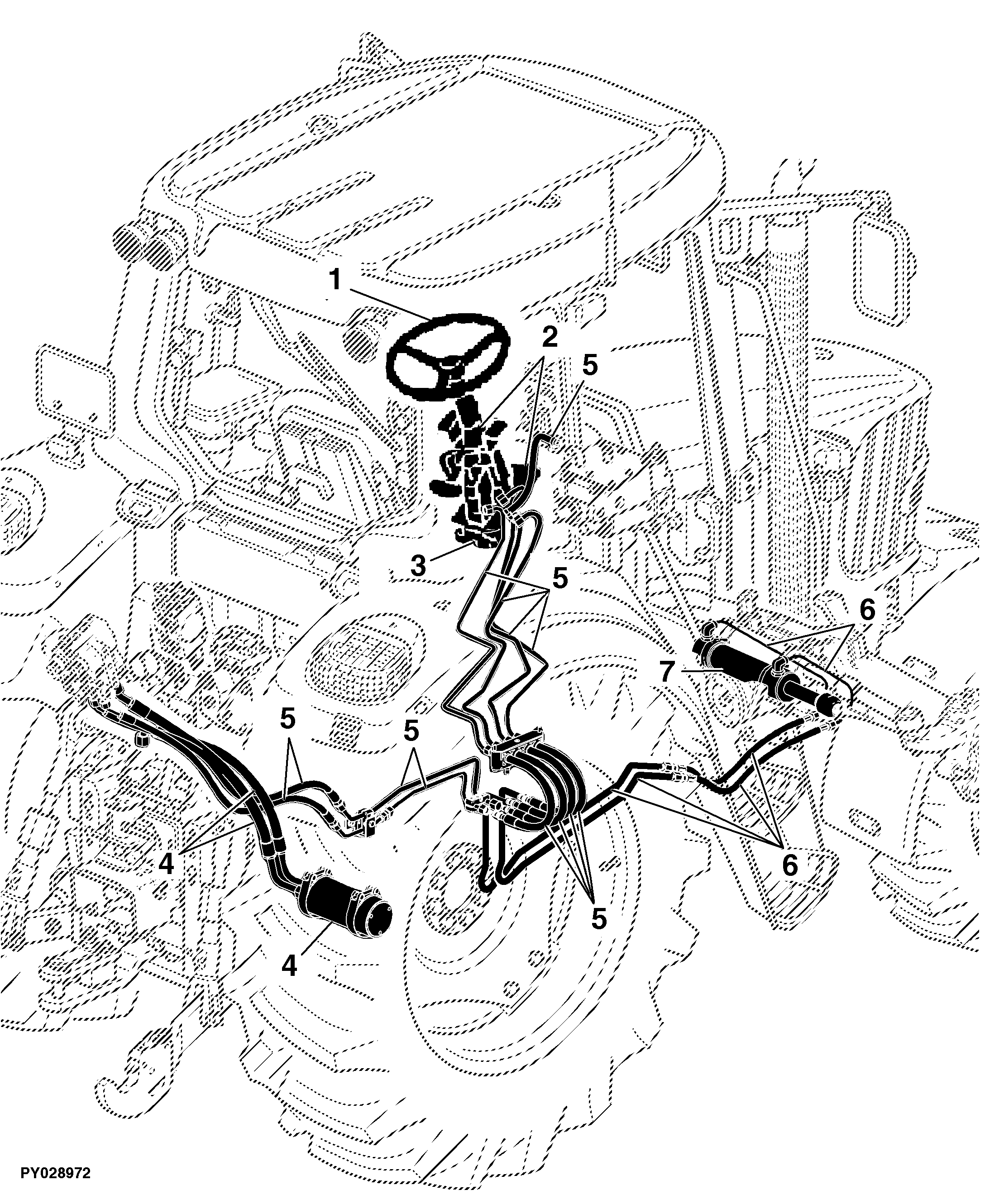

-	-	1	TILTABLE AND TELESCOPIC STEERING COLUMN	-
-	-	1	STEERING WHEEL/ATTACHING PARTS	-
-	-	1	STEERING OIL LINES	-
-	-	1	STEERING CYLINDER PARTS WITH FRONT WHEEL DRIVE	-
-	-	1	HYDROSTATIC STEERING UNIT	-
-	-	1	HYDROSTATIC STEERING OIL LINES	-
-	-	1	HYDRAULIC TRAILER BRAKE, BRAKE VALVE AND MOUNTING PARTS	-
-	-	1	HYDR. TRAILER BRAKE, OIL LINES	-
-	-	1	HYDR. TRAILER BRAKE, OIL LINES	-
-	-	1	HITCH COUPLERS FOR TRAILER AIR BRAKE	-
-	-	1	AIR COMPRESSOR ASSY., AIR BRAKES	-

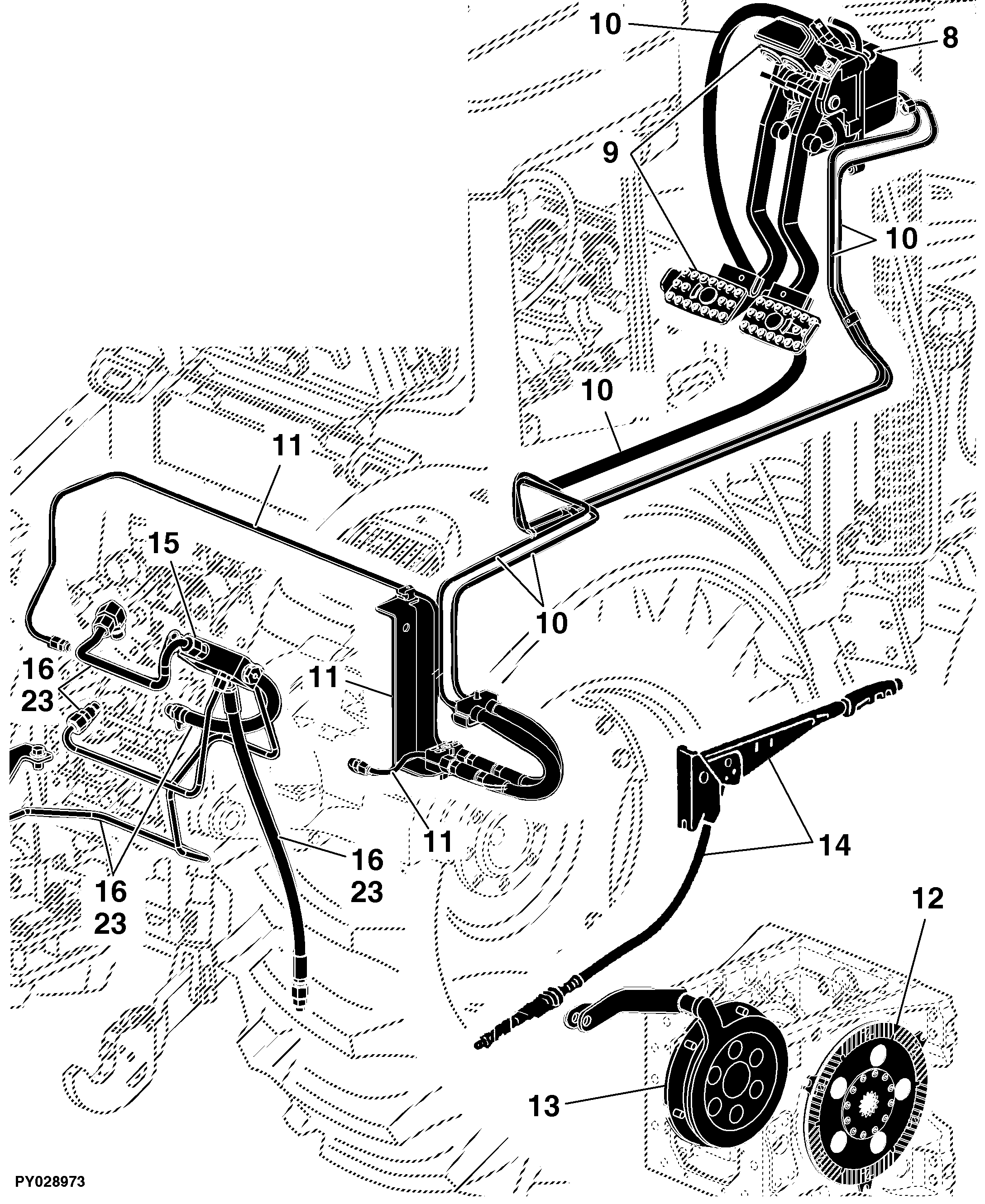

-	-	1	HANDBRAKE, BOWDEN CABLE	-
-	-	1	HANDBRAKE	-
-	-	1	COMPRESSED AIR TANK, PRESSURE REGULATING VALVE AND TRAILER AIR BRAKE LINES	-
-	-	1	BRAKE VALVE, DUAL STAGE	-
-	-	1	BRAKE PEDAL DUAL STAGE, BRAKE SWITCH	-
-	-	1	BRAKE OIL LINES, REAR (W/O AIR TRAILER BRAKE SYSTEM)	-
-	-	1	BRAKE OIL LINES	-
-	-	1	BRAKE DISK	-
-	-	1	ATTENUATOR (STEERING SYSTEM)	-
-	-	1	Attachment, Valves, Single Line Air Trailer Brake System	-
-	-	1	Attachment, Pneumatic Trailer Brake	-

60 Steering and Brakes 5090R, 5090RN
