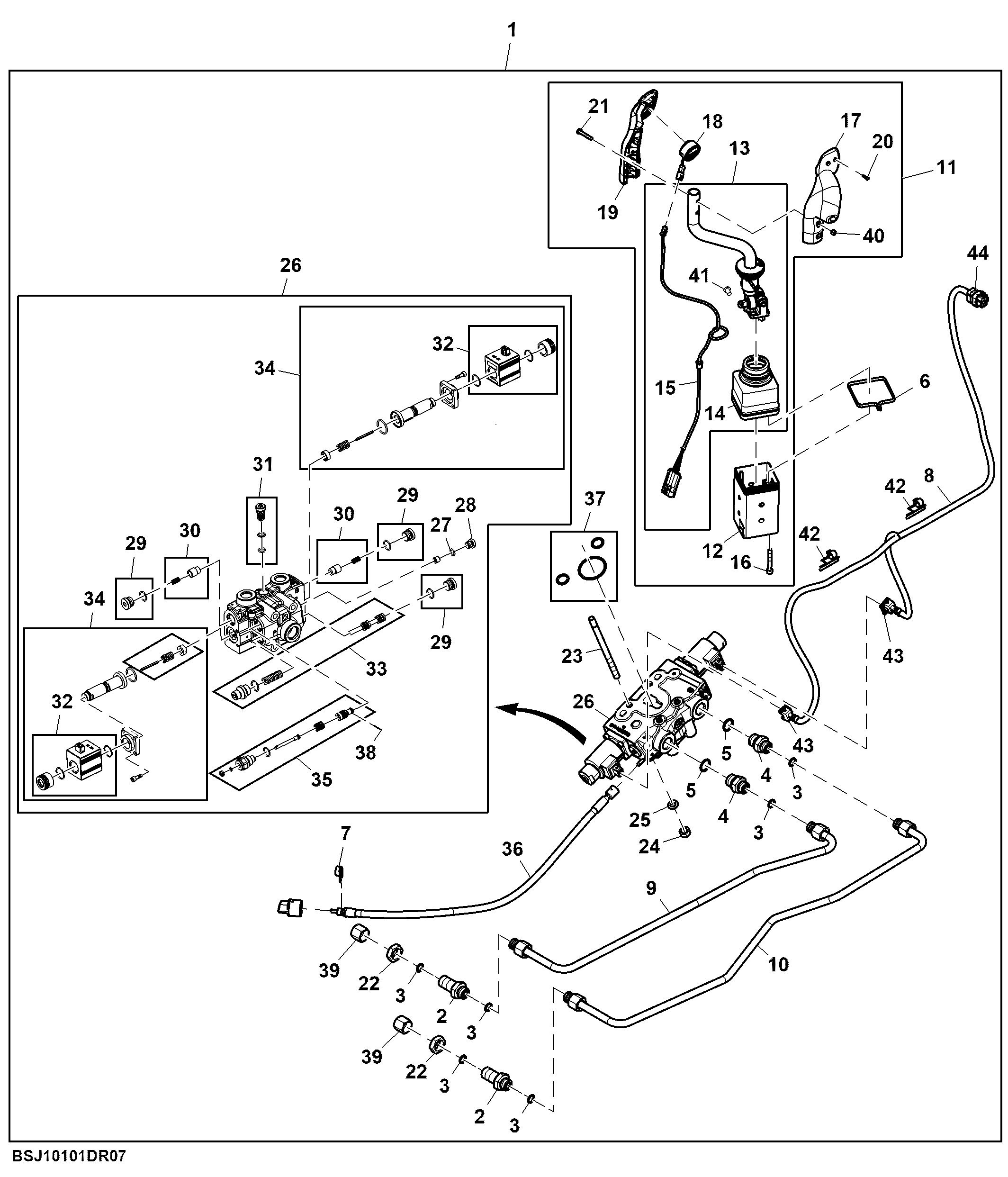

Dual to Triple Mid SCV W/ Controls, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BSJ10101	1	Selective Control Valve	-
2	38H1275	2	Adapter Fitting	-
3	T77857	2	O-Ring	-
4	38H5076	2	Adapter Fitting	-
5	51M7045	2	O-Ring	19.300 X 2.200 mm
6	R105388	1	Tie Band	-
7	R108214	1	Snap Ring	-
8	SJ21426	1	Wiring Harness	Triple Mid SCV
9	SJ21759	1	Oil Line	Loader, Grapple Extend
10	SJ21760	1	Oil Line	Loader, Grapple Retract
11	SJ22457	1	Multi-Functional Controller	-
12	L208076	1	Housing	-
13	SJ22458	1	Control Lever	-
14	L208624	1	Boot	-
15	SJ22454	1	Wiring Harness	Joystick
16	19M9730	1	Screw	M6 X 45
17	SU39360	1	Handle	RH
18	SJ22455	1	Wiring Harness	Joystick
19	SU39362	1	Handle	LH
20	37M7435	3	Screw	-
21	21M7325	2	Screw	M5 X 30
22	T78716	2	Nut	-
23	SU40420	4	Stud	-
24	14M7140	4	Nut	M10
25	12M7135	4	Lock Washer	10 mm
26	SJ16056	1	Selective Control Valve	INCLUDES SJ19027
26	SJ19027	1	Seal Kit	-
27	51M7041	1	O-Ring	11.300 X 2.200 mm
28	64M1017	1	Drain Plug	-
29	AL172974	3	Fitting Plug	-
30	AL214529	2	Spool Kit	-
31	SJ19022	1	Check Valve	-
32	SJ31223	1	Solenoid Valve Coil	-
33	SJ19092	1	Spool Kit	-
34	SJ19115	2	Detent Kit	-
35	SJ22094	1	Valve Kit	-
36	SJ23898	1	Shaft	Flow Control
37	SJ19028	2	Seal Kit	SCV Flange
38	34H216	2	Spring Pin	5/64" X 7/8"
39	38H1416	2	Fitting	-
40	14M7663	2	Lock Nut	M5
41	16M2565	1	Rivet	3 X 6 mm
42	57M11952	3	Elec. Connector Accessory	-
43	57M10118	2	Elec. Connector Housing	-
44	57M9817	1	Elec. Connector Housing	-

Dual to Triple Mid SCV W/ Controls, Attachment
