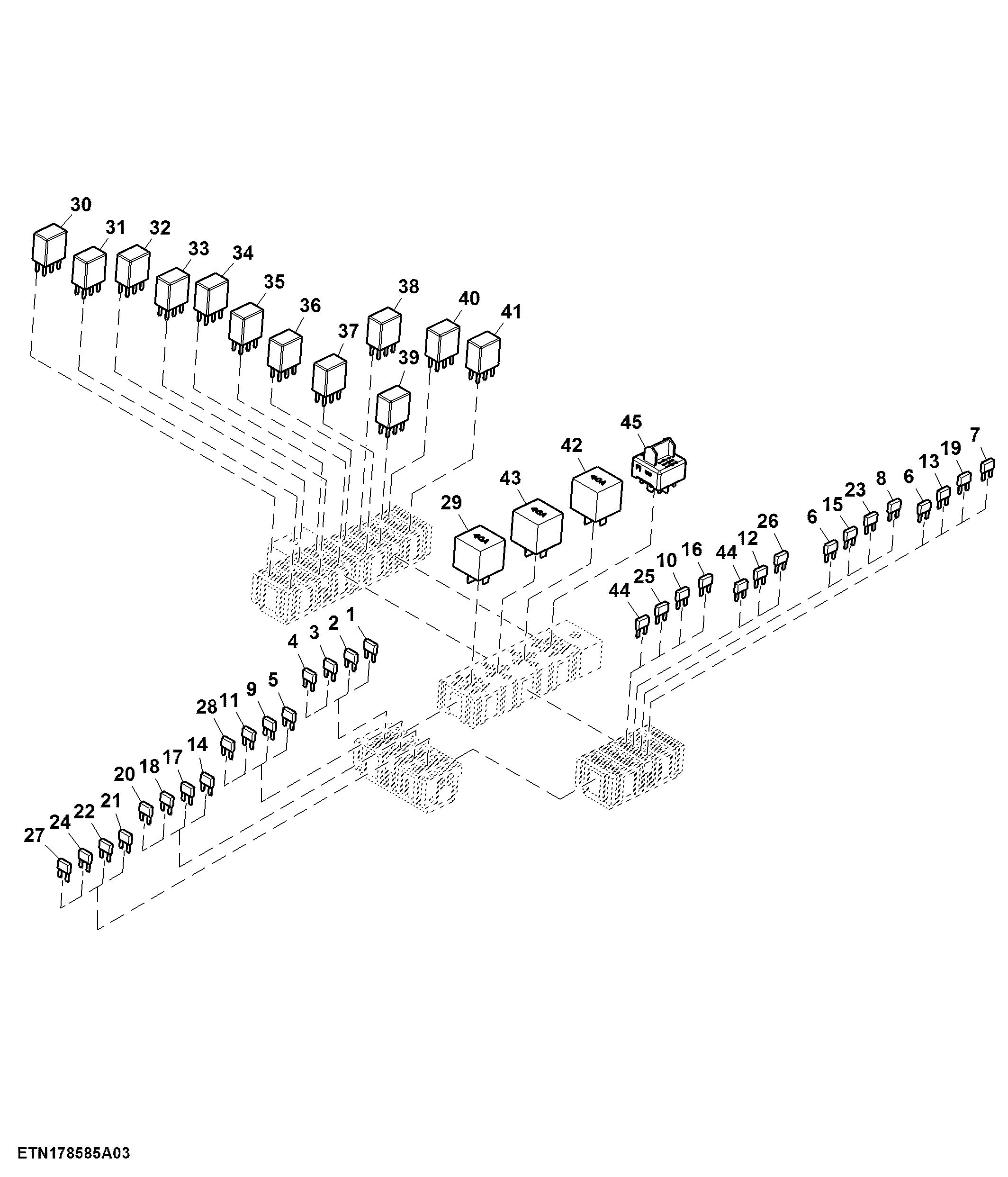

Load Center, Cab Wiring Harness (6/6)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8163	1	Fuse	30 A, Key Switch
2	57M7690	1	Fuse	15 A, High/Low Beam Switch
3	57M7689	1	Fuse	10 A, Seat/Horn/Brake Lights
4	57M7691	1	Fuse	20 A, Light Switch
5	57M7689	1	Fuse	10 A, Electro Hydraulic Control Unit
6	57M7689	2	Fuse	10 A
7	57M7690	1	Fuse	15 A, Beacon Light
8	57M7688	1	Fuse	5 A, Back Up Alaram
9	57M7690	1	Fuse	15 A, Fuel Pump
10	57M7689	1	Fuse	10 A, Turn Signal Switch
11	57M8163	1	Fuse	30 A, Turn Hazard
12	57M7689	1	Fuse	10 A, Left Clearance Lamp
13	57M7690	1	Fuse	15 A, Trailer Work Light
14	57M7689	1	Fuse	10 A, Instrument Cluster
15	57M7689	1	Fuse	10 A, License Lamp
16	57M8163	1	Fuse	30 A, Battery Switched
17	57M8163	1	Fuse	30 A, Battery Unswitched
18	57M8163	1	Fuse	30 A, Trailer Power
19	57M7690	1	Fuse	15 A, Front Work Lamp
20	57M7689	1	Fuse	10 A, Dome Light/Radio Battery
21	57M8163	1	Fuse	30 A, HVAC
22	57M7691	1	Fuse	20 A, Wiper
23	57M7689	1	Fuse	10 A, ATU
24	57M8163	1	Fuse	30 A, HVAC Full Speed Blowers
25	57M7689	1	Fuse	30 A, Radio
26	57M7689	1	Fuse	10 A
27	57M7689	1	Fuse	10 A
28	57M8163	1	Fuse	30 A, Rear Work Lamps
29	LVA13729	1	Relay	Trailer Power
30	SJ15809	1	Relay	Tail/Clearance/License
31	SJ15809	1	Relay	High/Low Head Lights
32	SJ15809	1	Relay	Accessory
33	SJ15809	1	Relay	Trans Enable
34	SJ15809	1	Relay	-
35	SJ15809	1	Relay	Fuel Transfer Pump
36	SJ15809	1	Relay	Brake Lights
37	SJ15809	1	Relay	Left Turn
38	SJ15809	1	Relay	Right Turn
39	SJ15809	1	Relay	Front Wipers
40	SJ15809	1	Relay	Left Blower
41	SJ15809	1	Relay	Right Blower
42	LVA13729	1	Relay	HVAC
43	LVA13729	1	Relay	Rear Work Lamps
44	RE180265	2	Diode	-
45	RE262484	1	Diode	-

Load Center, Cab Wiring Harness (6/6)
