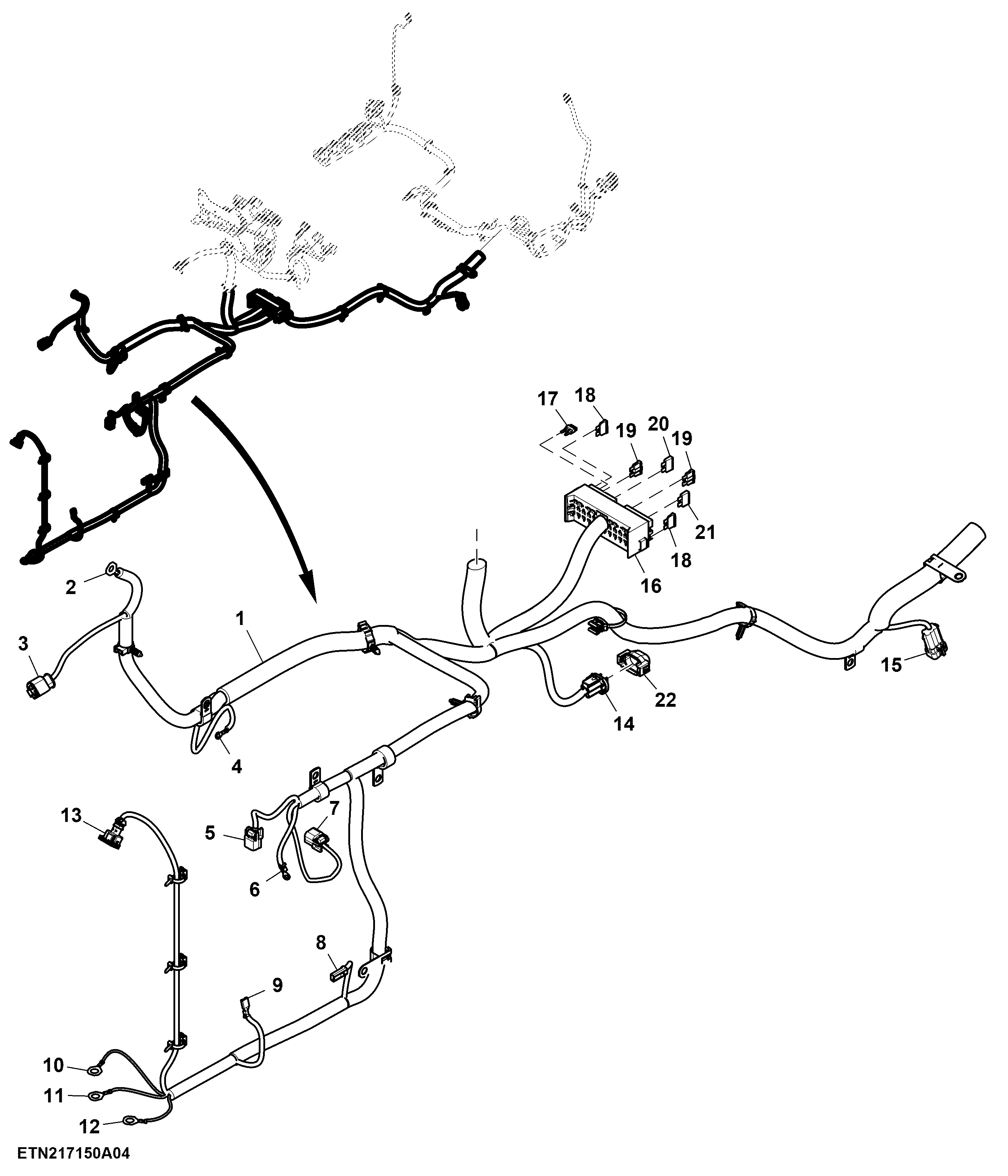

Chassis Wiring Harness, SyncShuttle™(4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40602	1	Wiring Harness	-
2	57M8866	1	Elec. Connector Terminal	Fuse Link F001
3	57M13844	1	Elec. Connector Seal	Cavity 2
3	57M12080	1	Elec. Connector Housing	OOS Alternator G901
4	57M8875	1	Elec. Connector Terminal	M001
4	57M8873	1	Elec. Connector Terminal	Cavity 1
5	57M8924	1	Elec. Connector Housing	Engine Magnetic Pick-Up B031
5	57M8560	2	Elec. Connector Terminal	Cavity A, B
5	57M8566	2	Elec. Connector Seal	Cavity A, B
5	57M8633	1	Elec. Connector Accessory	-
6	57M8874	1	Elec. Connector Terminal	Fuel Injection Pump Y011
6	57M8873	1	Elec. Connector Terminal	Cavity 1
7	57M8924	1	Elec. Connector Housing	Coolant Temperature Sender B012
7	57M8566	2	Elec. Connector Seal	Cavity A, B
7	57M8560	2	Elec. Connector Terminal	Cavity A, B
8	57M8815	1	Elec. Connector Housing	Engine Oil Pressure Switch B032
8	57M9199	1	Elec. Connector Terminal	Cavity A
9	57M13773	1	Elec. Connector Terminal	Radiator Ground GND007A
10	57M9535	1	Elec. Connector Terminal	GND001A
11	57M9535	1	Elec. Connector Terminal	Ground GND001C
12	57M9535	1	Elec. Connector Terminal	GND001D
13	57M8621	2	Elec. Connector Terminal	Cavity 1, 2
13	57M10118	1	Elec. Connector Housing	Air Filter Switch B013
13	57M8515	2	Elec. Connector Seal	Cavity 1, 2
14	57M14712	1	Elec. Connector Housing	Load Center 2 LC2
14	57M7399	1	Elec. Connector Seal	Cavity 4
14	57M8515	3	Elec. Connector Seal	Cavity 1, 2, 3
14	57M8584	3	Elec. Connector Terminal	Cavity 1, 2, 3
14	57M8585	1	Elec. Connector Terminal	Cavity 4
14	57M7689	1	Fuse	10 A
14	57M7690	1	Fuse	15 A
15	57M7258	1	Elec. Connector Seal	Cavity C
15	57M7259	2	Elec. Connector Seal	Cavity B, F
15	57M7291	1	Electrical Connector Assy	-
15	57M9214	3	Elec. Connector Seal	Cavity A, D, E
15	57M7252	3	Elec. Connector Terminal	Cavity A, D, E
15	57M11342	1	Elec. Connector Terminal	Cavity C
15	57M7263	1	Elec. Connector Housing	Rear PTO Switch S011
16	57M8056	1	Relay Module	Load Center 1 LC
16	57M8057	22	Elec. Connector Terminal	Cavity 1A, 3A, 4A, 5A, 7A, 10A, 13A, 3E, 15E, 11E, 6E, 16E, 8E, 11A, 9E, 6A, 12A, 2A, 14A, 5E, 2E, 8A
16	57M8058	8	Elec. Connector Terminal	Cavity 1E, 14E, 16A, 12E, 15A, 7E, 9A, 13E
17	RE180265	2	Diode	-
18	57M13531	5	Elec. Connector Accessory	-
19	57M12652	4	Elec. Connector Accessory	10 A
20	99M7065	3	Fuse	15 A
21	57M7120	1	Fuse	20 A
22	57M14713	1	Elec. Connector Accessory	-
