Открытый узел

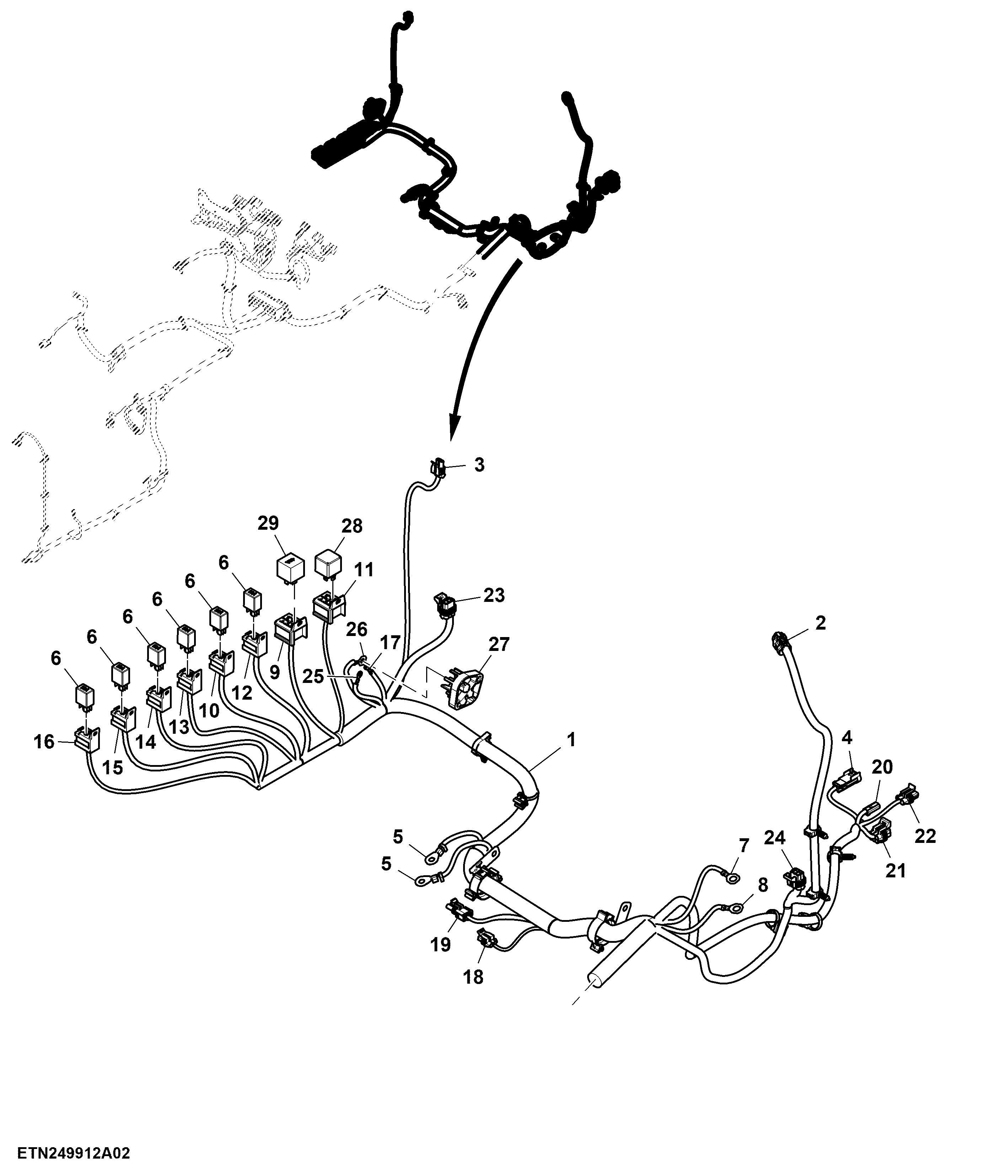

Chassis Wiring Harness, SyncShuttle™(2/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40602	1	Wiring Harness	-
2	57M9772	1	Elec. Connector Housing	Fuel Level Sender B011
2	57M9809	2	Elec. Connector Terminal	Cavity 1, 2
3	57M7254	1	Elec. Connector Housing	E202
3	57M7258	1	Elec. Connector Seal	Cavity A
3	57M7494	1	Elec. Connector Terminal	Cavity B
3	57M9214	1	Elec. Connector Seal	Cavity B
3	57M9541	1	Elec. Connector Terminal	Cavity A
3	57M9712	1	Elec. Connector Accessory	-
4	57M8215	1	Electrical Connector Assy	H023
5	57M8901	2	Elec. Connector Terminal	Chassis Ground
6	AL76702	6	Relay	12 V
7	57M8865	1	Elec. Connector Terminal	Platform Ground GND005A
8	57M8865	1	Elec. Connector Terminal	Platform Ground GND005A-2
9	57M10426	1	Elec. Connector Accessory	Trailer Power Relay K002
9	57M10980	1	Elec. Connector Terminal	Cavity 4
9	57M13190	3	Elec. Connector Terminal	Cavity 2, 6, 8
10	Z61311	1	Elec. Connector Housing	Tail/Clearance Relay K003
10	57M10980	2	Elec. Connector Terminal	Cavity 30, 87
10	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
11	57M10426	1	Elec. Connector Accessory	Hi/Low Headlight Relay K006
11	57M13190	1	Elec. Connector Terminal	Cavity 6
11	57M10980	3	Elec. Connector Terminal	Cavity 2, 4, 8
12	Z61311	1	Elec. Connector Housing	Accesory Relay K008
12	57M10980	2	Elec. Connector Terminal	Cavity 30, 87
12	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
13	Z61311	1	Elec. Connector Housing	Brake Relay K027
13	57M10980	2	Elec. Connector Terminal	Cavity 30, 87
13	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
14	57M13190	2	Elec. Connector Terminal	Cavity 30, 87
14	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
14	Z61311	1	Elec. Connector Housing	Turn Relay K091, LH
15	Z61311	1	Elec. Connector Housing	Turn Relay K092, RH
15	57M13190	2	Elec. Connector Terminal	Cavity 30, 87
15	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
16	Z61311	1	Elec. Connector Housing	OOS Work Lamp Relay K901
16	57M13190	2	Elec. Connector Terminal	Cavity 30, 87
16	Z61303	2	Elec. Connector Terminal	Cavity 85, 86
17	57M8875	1	Elec. Connector Terminal	Starter M001
17	57M8873	1	Elec. Connector Terminal	Cavity 1
18	57M7328	1	Elec. Connector Housing	S015
19	RE12363	1	Electrical Connector Assy	Neutral Start Switch S012
19	57M7251	1	Elec. Connector Terminal	Cavity A
19	57M9549	1	Elec. Connector Seal	Cavity A
20	57M8815	1	Elec. Connector Housing	Work Lamp X002
20	57M9199	1	Elec. Connector Terminal	Cavity A
21	57M9541	2	Elec. Connector Terminal	Cavity A, C
21	57M7259	1	Elec. Connector Seal	Cavity F
21	57M7291	1	Electrical Connector Assy	-
21	57M9214	3	Elec. Connector Seal	Cavity B, D, E
21	57M7494	3	Elec. Connector Terminal	Cavity B, D, E
21	57M7258	2	Elec. Connector Seal	Cavity A, C
21	57M7260	1	Elec. Connector Housing	Trailer Connector X091-1
22	57M7309	1	Elec. Connector Housing	Trailer Connector X091-2
22	57M7491	2	Elec. Connector Terminal	Cavity A, B
22	57M9218	2	Elec. Connector Seal	Cavity A, B
22	57M7306	1	Elec.Connect Locking Device	-
23	57M7260	1	Elec. Connector Housing	To Fender Harness X104, RH
23	57M7259	2	Elec. Connector Seal	Cavity A, C
23	57M7291	1	Electrical Connector Assy	-
23	57M9541	1	Elec. Connector Terminal	Cavity D
23	57M9214	3	Elec. Connector Seal	Cavity B, E, F
23	57M7494	3	Elec. Connector Terminal	Cavity B, E, F
23	57M7258	1	Elec. Connector Seal	Cavity D
24	57M7260	1	Elec. Connector Housing	To Fender Harness X105, LH
24	57M7258	1	Elec. Connector Seal	Cavity D
24	57M7494	3	Elec. Connector Terminal	Cavity B, E, F
24	57M9214	3	Elec. Connector Seal	Cavity B, E, F
24	57M9541	1	Elec. Connector Terminal	Cavity D
24	57M7291	1	Electrical Connector Assy	-
24	57M7259	2	Elec. Connector Seal	Cavity A, C
25	57M8875	1	Elec. Connector Terminal	-
26	57M8871	1	Elec. Connector Terminal	-
27	RE186986	1	Junction Block	-
28	LVA13729	1	Relay	12 V
29	AL77324	1	Relay	40 A

Chassis Wiring Harness, SyncShuttle™(2/4)

Нет текстового описания
