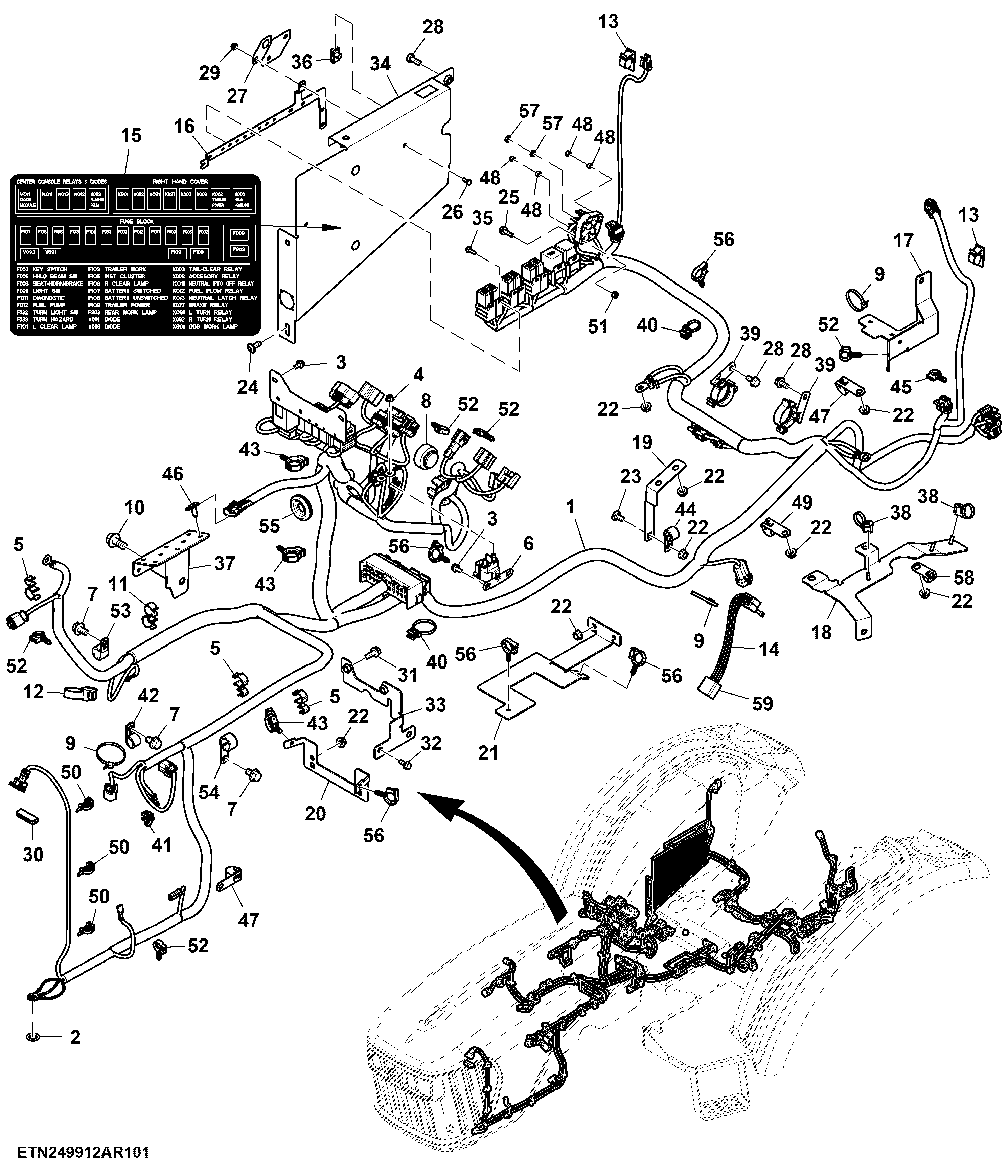

Chassis Wiring Harness, SyncShuttle™(1/4)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ40602	1	Wiring Harness	-
2	12H292	1	Lock Washer	1/2"
3	19M7774	4	Screw	M6 X 12
4	14M7303	2	Flange Nut	M6
5	L171496	3	Clamp	-
6	SJ25589	1	Relay	Intermittent Duty Start
7	19M7783	3	Screw	M10 X 16
8	RE224163	1	Alarm System	-
9	R105388	3	Tie Band	-
10	19M7788	1	Screw	M12 X 25
11	R215302	2	Clip	-
12	R213663	1	Clamp	-
13	RE57589	2	Clip	-
14	RE42470	1	Switch	10 A, INCLUDES 57M7260
14	57M7260	1	Elec. Connector Housing	-
15	SU58472	1	Label	Load Center
16	SU33199	1	Bracket	Relay Support
17	SJ37246	1	Bracket	OOS Harness
18	SJ37108	1	Bracket	Fender Harness LH
19	SU58688	1	Bracket	OOS Harness
20	SU58765	1	Bracket	Engine
21	SU58766	1	Bracket	Transmission
22	14M7298	15	Flange Nut	M8
23	03M7183	1	Bolt	M8 X 16
24	19M8599	1	Screw	M8 X 20
25	19M7863	2	Screw	M6 X 25
26	19M7640	2	Cap Screw	M5 X 12
27	SU63329	1	Bracket	-
28	19M7865	4	Screw	M8 X 16
29	14M7375	2	Flange Nut	M5
30	R274722	1	Weatherstrip	LGTH = 110 mm
31	19M7866	3	Screw	M8 X 20
32	19M7775	1	Screw	M6 X 16
33	SJ39918	1	Bracket	Load Center
34	SJ40604	1	Cover	W/ Nut
35	37H137	8	Screw	0.190" X 5/8"
36	H156360	1	Nut	-
37	SU42164	1	Bracket	Engine Interconnection
38	57M11797	3	Elec. Connector Accessory	-
39	57M13172	2	Elec. Connector Accessory	-
40	AH225363	2	Clip	-
41	AH225366	1	Clip	-
42	57M13296	1	Clamp	-
43	57M9206	3	Clip	-
44	57M13294	1	Clamp	-
45	57M8903	2	Clip	-
46	57M8910	1	Clip	-
47	57M8824	2	Elec. Connector Accessory	-
48	14M7297	4	Nut	M5
49	57M10635	1	Elec. Connector Accessory	-
50	57M9229	3	Clip	-
51	14M7272	2	Nut	M6
52	57M8902	6	Clip	-
53	57M12123	1	Clamp	-
54	57M13306	1	Clamp	-
55	Z53033	1	Grommet	-
56	57M8908	5	Clip	-
57	14M7194	2	Nut	M6
58	57M9437	3	Clamp	-
59	57M7260	1	Elec. Connector Housing	-

Chassis Wiring Harness, SyncShuttle™(1/4)
