20 Engine 4045HLV76-DZ105187

20 Engine 4045HLV76-DZ105187

20 Engine 4045HLV76-DZ105187

20 Engine 4045HLV76-DZ105187

20 Engine 4045HLV76-DZ105187

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 Engine 4045HLV76-DZ105187

Нет текстового описания

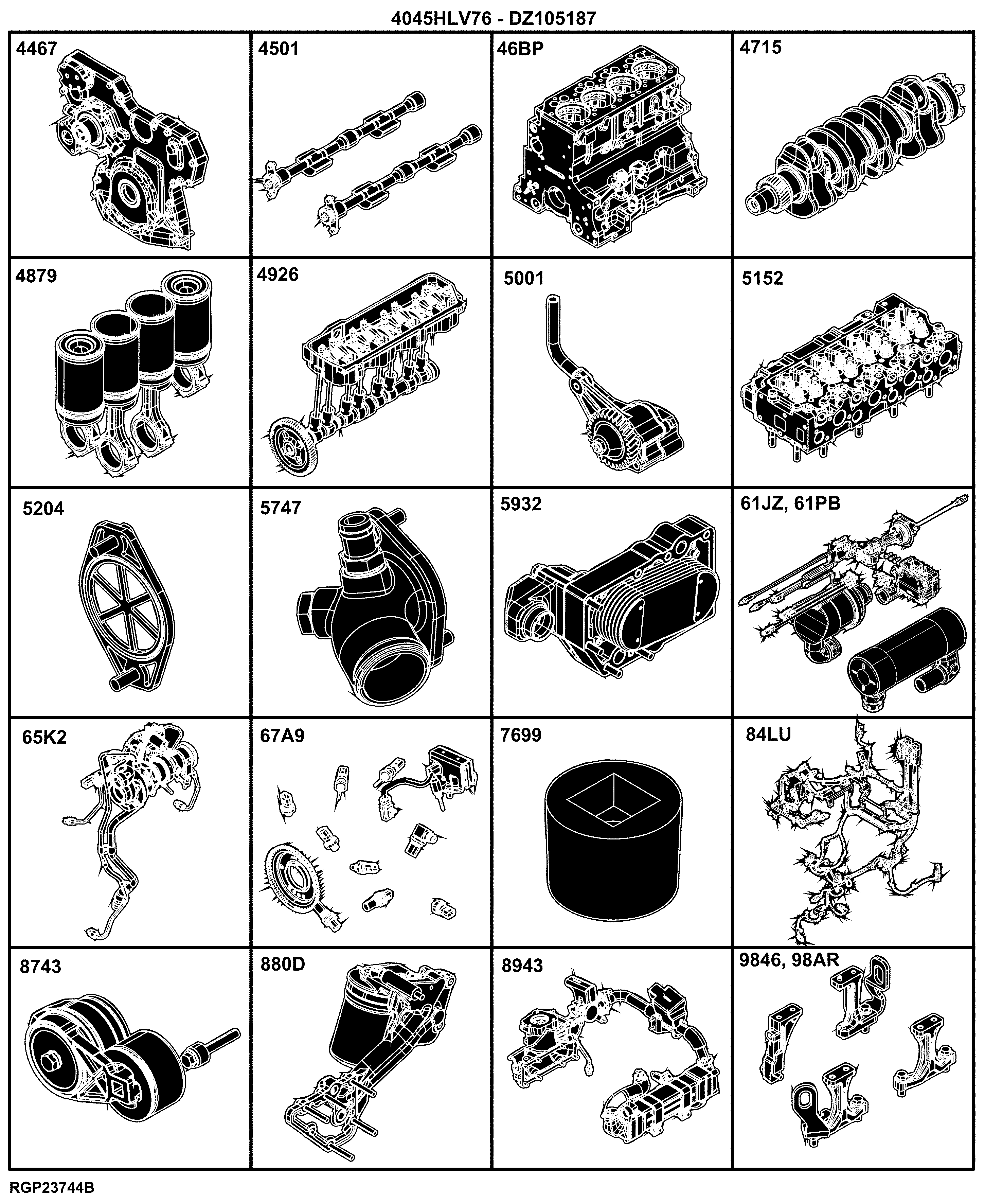

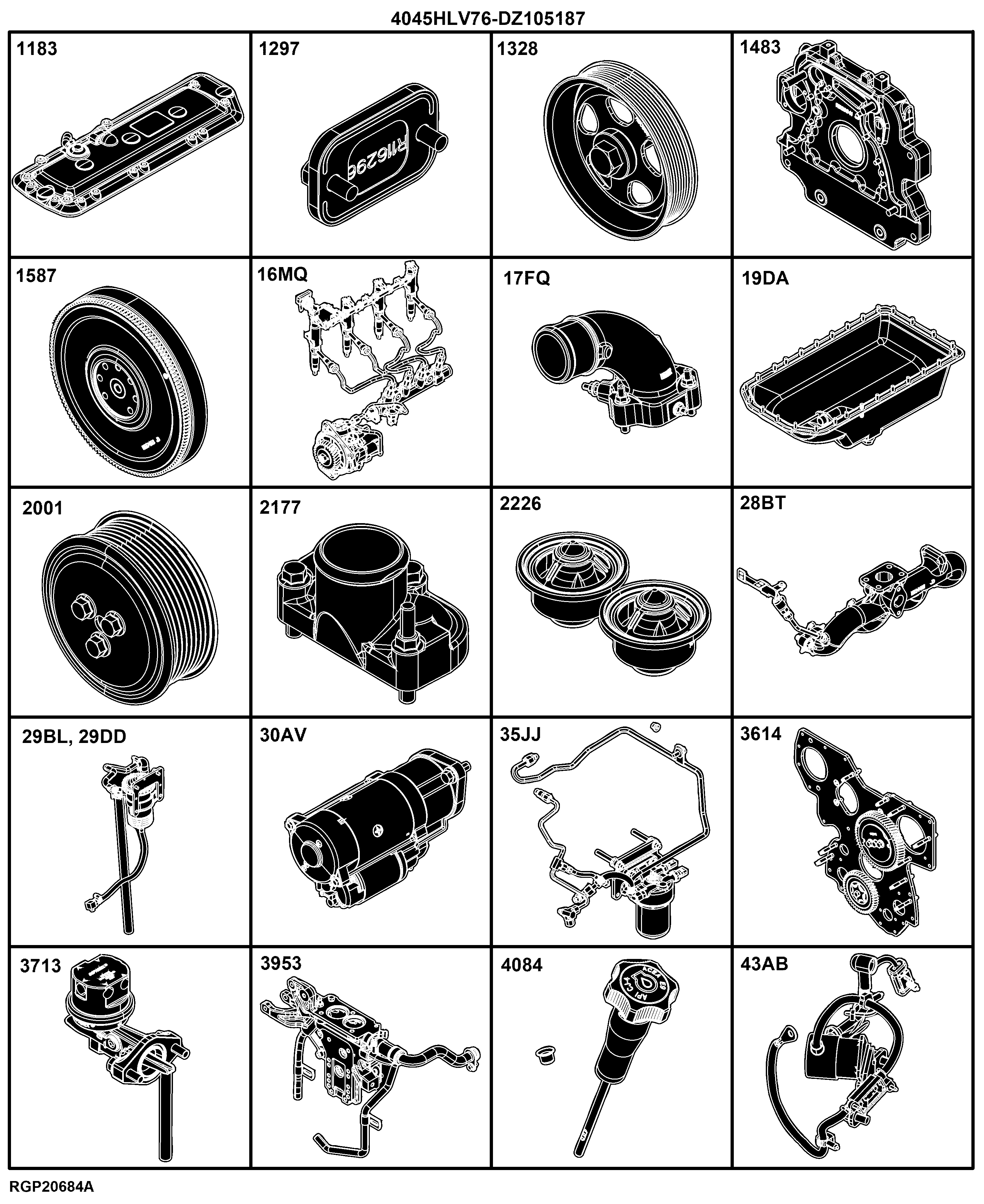

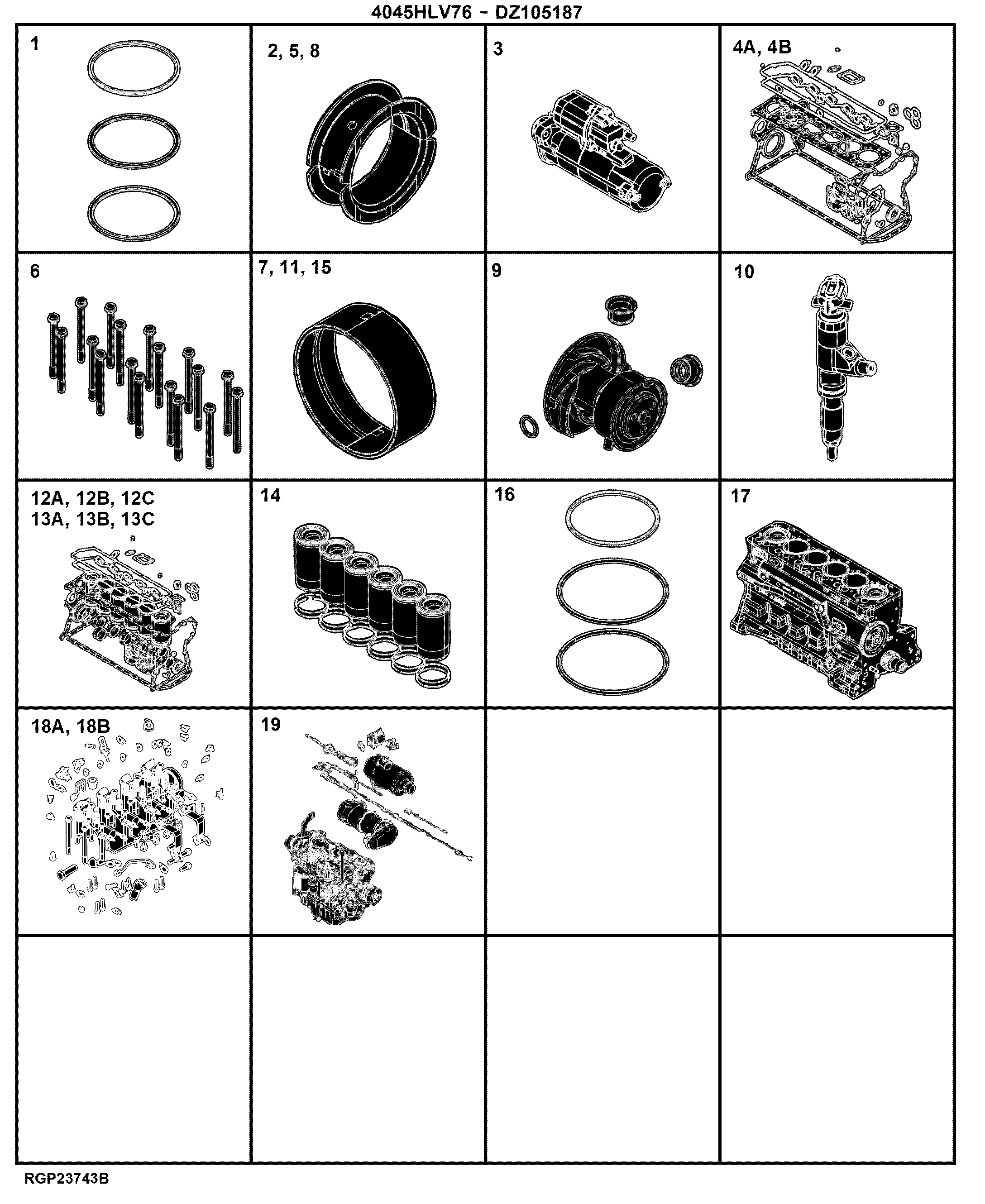

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	98AR Lift Strap (129539 - )	-
-	-	1	9901 Engine Overhaul Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Engine Coolant Pump Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Bolt Kit	-
-	-	1	9901 Engine Overhaul Gasket Kit (2/3)	-
-	-	1	9846 Lift Straps ( - 129538)	-
-	-	1	8943 Exhaust Gas Recirculation	-
-	-	1	880D Oil Filter	-
-	-	1	8743 Belt Tensioner	-
-	-	1	84LU Engine Wiring Harness	-
-	-	1	7699 Oil Pressure Switch Plug	-
-	-	1	67A9 Engine Sensors	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Thrust Bearing Kit	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	65K2 Turbocharger	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 Hardware Kit (2/2)	-
-	-	1	9901 Hardware Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	9901 Engine Overhaul Gasket Kit (3/3)	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	3614 Front Plate	-
-	-	1	35JJ Final Fuel Filter	-
-	-	1	30AV Starter Motor	-
-	-	1	29DD Ventilating System (113844 - )	-
-	-	1	29BL Ventilation System ( - 113843)	-
-	-	1	28BT Exhaust Manifold	-
-	-	1	2226 Engine Thermostat	-
-	-	1	2177 Thermostat Cover	-
-	-	1	3713 Fuel Transfer Pump	-
-	-	1	19DA Oil Pan	-
-	-	1	17FQ Air Intake	-
-	-	1	16MQ Fuel Injection System	-
-	-	1	1587 Flywheel	-
-	-	1	1483 Flywheel Housing	-
-	-	1	1328 Crankshaft Pulley	-
-	-	1	1297 Oil Filler Cover	-
-	-	1	4879 Connecting Rods and Pistons	-
-	-	1	61PB Aftertreatment, Exhaust System	-
-	-	1	61JZ Aftertreatment, Exhaust System	-
-	-	1	5932 Engine Oil Cooler	-
-	-	1	5747 Water Pump Inlet	-
-	-	1	5204 Auxiliary Drive Cover	-
-	-	1	5152 Cylinder Head with Valve	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	4926 Valve Actuating Mechanism	-
-	-	1	1183 Valve Cover	-
-	-	1	4715 Crankshaft and Bearings	-
-	-	1	46BP Cylinder Block	-
-	-	1	4501 Balancer Shaft	-
-	-	1	4467 Timing Gear Cover and Water Pump	-
-	-	1	43AB Starting Aid	-
-	-	1	4084 Engine Oil Dipstick Tube	-
-	-	1	3953 Thermostat Housing	-
