Открытый узел

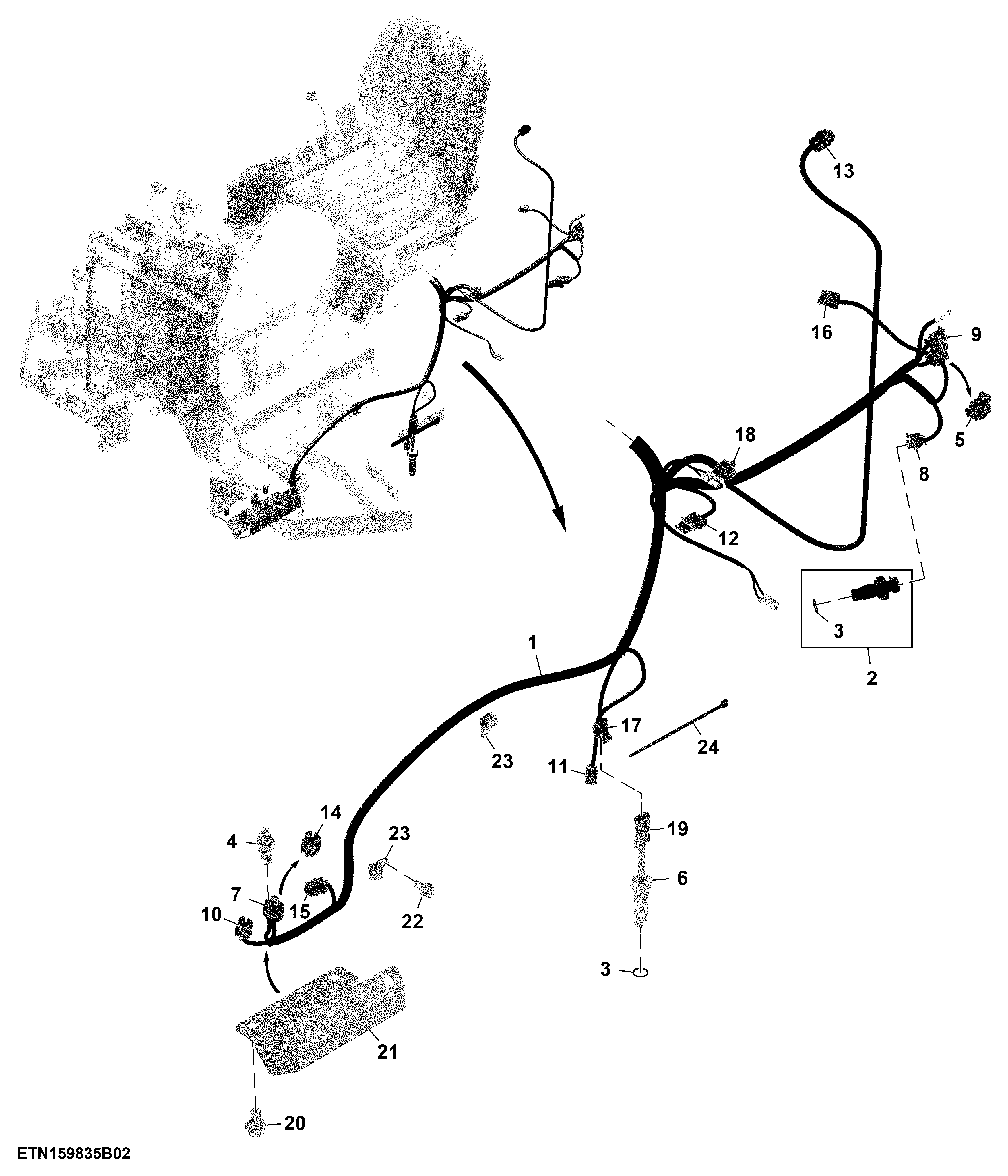

Main Wiring Harness, PowrReverser™, OOS (2/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32903	1	Wiring Harness	-
1	SJ28984	1	Wiring Harness	ORDER SJ32903
2	AL204621	1	Wheel Speed Sensor	-
3	51M7044	2	O-Ring	17.300 X 2.200 mm
4	RE217077	1	Trans Oil Pressure Sensor	-
5	57M7260	1	Elec. Connector Housing	Trailer Jumper 1 29
5	57M7291	1	Electrical Connector Assy	-
5	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
5	57M7258	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
6	RE295929	1	Sensor	Speed INCLUDES 57M7257
7	57M8625	1	Elec. Connector Housing	Enable Pressure 23
7	57M8624	1	Elec.Connect Locking Device	-
7	57M8560	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M8566	3	Elec. Connector Seal	Cavity 1, 2, 3
8	57M9215	2	Elec. Connector Seal	Cavity A, B
8	57M7494	2	Elec. Connector Terminal	Cavity A, B
8	57M7347	1	Elec. Connector Accessory	-
8	57M7346	1	Elec. Connector Housing	Rear PTO Sensor 26
9	57M7309	1	Elec. Connector Housing	Trailer Jumper 2 30
9	57M7306	1	Elec.Connect Locking Device	-
9	57M7491	2	Elec. Connector Terminal	Cavity A, B
9	57M9218	2	Elec. Connector Seal	Cavity A, B
10	57M8924	1	Elec. Connector Housing	Forward Solenoid 24
10	57M8633	1	Elec. Connector Accessory	-
10	57M8560	2	Elec. Connector Terminal	Cavity A, B
10	57M8566	2	Elec. Connector Seal	Cavity A, B
11	57M7850	1	Elec. Connector Housing	MFWD Off Soleniod 20
11	57M7830	2	Elec. Connector Terminal	Cavity A, B
12	RE12364	1	Electrical Connector Assy	Hand Brake Switch 18
12	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
12	57M9219	3	Elec. Connector Seal	Cavity A, B, C
13	57M9772	1	Elec. Connector Housing	Fuel Level Sender 25
13	57M9809	2	Elec. Connector Terminal	Cavity 1, 2
14	57M8924	1	Elec. Connector Housing	Reverse Soleniod 22
14	57M8633	1	Elec. Connector Accessory	-
14	57M8560	2	Elec. Connector Terminal	Cavity A, B
14	57M8566	2	Elec. Connector Seal	Cavity A, B
15	57M8924	1	Elec. Connector Housing	Clutch Enable 21
15	57M8633	1	Elec. Connector Accessory	-
15	57M8560	2	Elec. Connector Terminal	Cavity A, B
15	57M8566	2	Elec. Connector Seal	Cavity A, B
16	57M8924	1	Elec. Connector Housing	PTO Soleniod 27
16	57M8633	1	Elec. Connector Accessory	-
16	57M8560	2	Elec. Connector Terminal	Cavity A, B
16	57M8566	2	Elec. Connector Seal	Cavity A, B
17	R104846	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9215	3	Elec. Connector Seal	Cavity A, B, C
17	57M7290	1	Elec. Connector Accessory	-
17	57M7255	1	Elec. Connector Housing	Wheel Speed Sensor 19
18	57M7260	1	Elec. Connector Housing	Fender Extension Harness 15, LH
18	57M7291	1	Electrical Connector Assy	-
18	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
18	57M7258	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
19	57M7257	1	Elec. Connector Housing	-
19	57M7317	1	Elec. Connector Accessory	-
19	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
19	57M7258	3	Elec. Connector Seal	Cavity A, B, C
20	19M8672	2	Screw	M14 X 25
21	SU23990	1	Valve Cover	-
22	19M7784	1	Screw	M10 X 20
23	57M12129	2	Clamp	-
24	R44302	3	Tie Band	-

Main Wiring Harness, PowrReverser™, OOS (2/6)
