Открытый узел

Dual Mid-Mount SCV W/ Multifunctional Control Handle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	YZ90482	4	Drain Plug	-
2	03M7187	2	Bolt	M8 X 35
3	03M7216	1	Bolt	M8 X 50
4	12M7066	2	Lock Washer	10 mm
5	14M7165	2	Lock Nut	M6
6	14M7194	2	Nut	M6
7	14M7274	2	Nut	M10
8	14M7296	2	Flange Nut	M10
9	14M7297	2	Nut	M5
10	14M7298	3	Flange Nut	M8
11	14M7303	2	Flange Nut	M6
12	19M7402	2	Cap Screw	M10 X 25
13	19M7403	2	Cap Screw	M12 X 35
14	19M7774	2	Screw	M6 X 12
15	19M7775	4	Screw	M6 X 16
16	19M7868	3	Screw	M8 X 30
17	19M7897	3	Screw	M8 X 35
18	19M8069	2	Screw	M6 X 55
19	19M8321	2	Screw	M6 X 45
20	21H1486	2	Screw	0.190" X 1-1/8"
21	24M7047	2	Washer	13 X 24 X 2.500 mm
22	24M7054	4	Washer	6.400 X 12 X 1.600 mm
23	37M7068	4	Screw	-
24	37M7355	2	Screw	-
25	37M7356	1	Screw	-
26	42M7126	2	Stud	-
27	38H5005	1	Adapter Fitting	-
28	38H5121	2	Adapter Fitting	-
29	99M7014	1	Plug	-
30	L76801	2	Grommet	-
31	LVA12162	2	Lock Nut	-
32	LVU16651	1	Grip	-
33	LVU16701	1	Grip	-
34	R109390	2	Clamp	-
35	R208766	1	Shield	-
36	R213784	1	Hose Clamp	-
37	R218365	1	Label	Joystick Lock
38	R218827	1	Shield	-
39	R223234	1	Label	Loader Control W/ Triple Function
40	R232632	1	Label	Loader Control Lever
41	R248877	1	Bracket	-
42	R41440	1	Grommet	-
43	R70350	1	Grommet	-
44	RE192850	1	Bracket	-
45	RE207317	1	Basic Control Unit	Joystick Control
46	RE247968	1	Basic Control Unit	Joystick Control
47	SJ14315	1	Selective Control Valve	SUB FOR RE248040
48	RE267820	1	Adapter Fitting	-
49	SJ13278	2	Cable	LGTH = 1031 mm
50	SJ13432	2	Push Pull Cable	LGTH = 1000 mm
51	SJ13852	1	Oil Line	Mid SCV Line to Rear SCV
52	SJ14866	1	Oil Line	Mid SCV to Oil Filter
53	SJ14867	1	Oil Line	Mid SCV to Rear SCV Line
54	SJ15397	1	Oil Line	Hitch Valve to Dual Mid SCV
55	SJ299166	1	Wiring Harness	Mid Mount SCV, Cab
56	SJ299167	1	Wiring Harness	Mid Mount SCV, OOS
57	SU35731	1	Bracket	-
58	SU26057	2	Sleeve	-
59	SU26058	2	Flange	-
60	SU26328	2	Pin	-
61	T77858	5	O-Ring	-
62	51M7045	2	O-Ring	19.300 X 2.200 mm
63	51M7047	2	O-Ring	23.600 X 2.900 mm
64	RE230264	2	Housing	-
65	RE230265	1	Control Lever	Joystick
66	RE249462	1	Control Lever	Joystick
67	R230268	2	Boot	-
68	R230269	2	Lever	-
69	R230281	4	Bushing	-
70	R230282	4	Piston	-
71	R230562	4	Screw	-
72	R236243	2	Compression Spring	-
73	R236244	2	Ball	-
74	R46702	6	Back-Up Ring	-

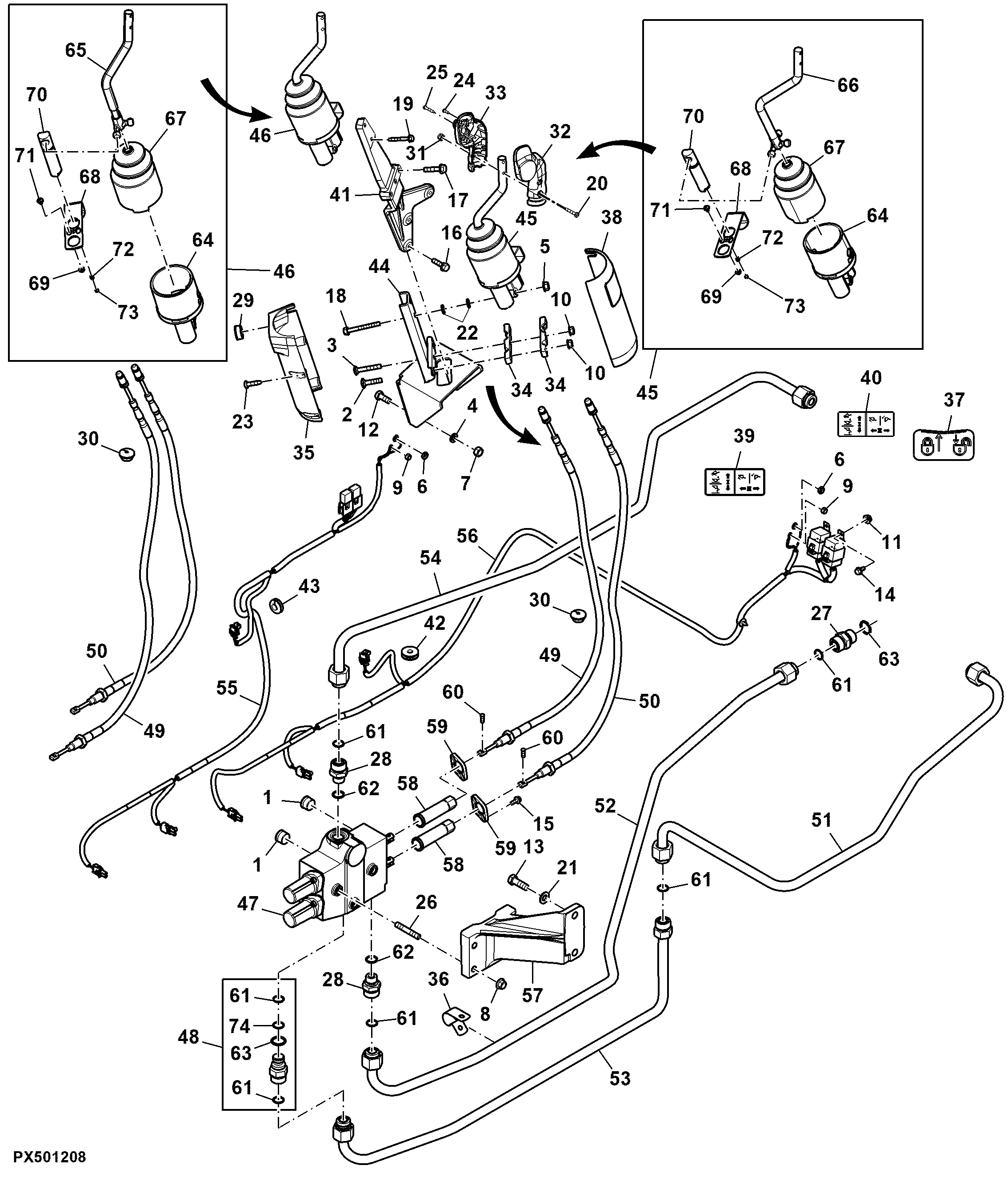

Dual Mid-Mount SCV W/ Multifunctional Control Handle
