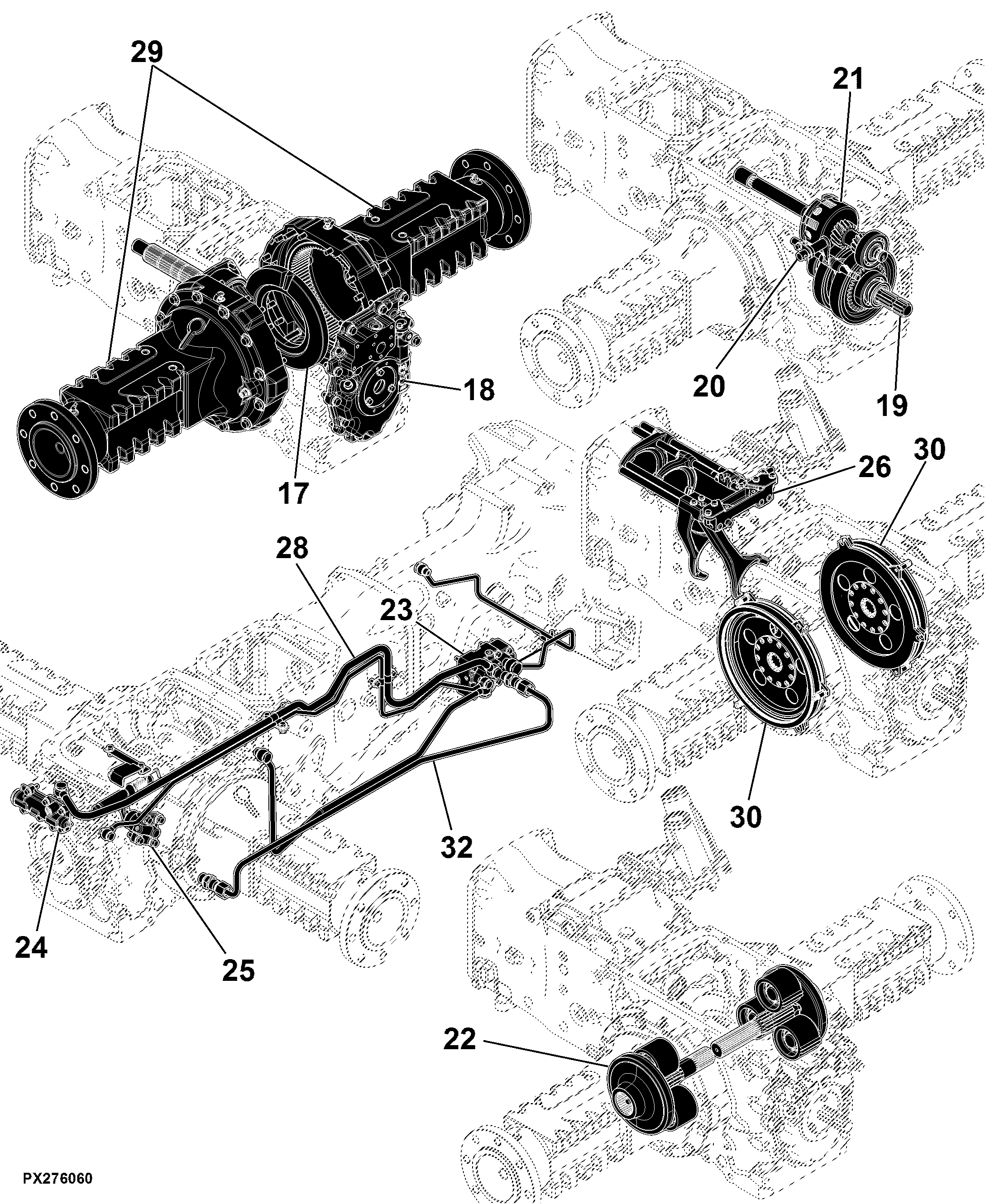

58 Powrreverser Transmission, 12x12, 540/540E RPM, Park Pawl

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	PTO Shifter Assembly	-
-	-	1	Oil Pump Assembly	-
-	-	1	Park Pawl, SyncShuttle™	-
-	-	1	Planetary Assembly	-
-	-	1	PTO Brake Assembly	-
-	-	1	PTO Control Valve	-
-	-	1	PTO Cover	-
-	-	1	PTO Input Shaft	-
-	-	1	PTO Output Shaft	-
-	-	1	Oil Lines, John Deere Transmission	-
-	-	1	Range Reduction Shaft	-
-	-	1	Rear Axle	-
-	-	1	Ring Gear and Pinion Shaft	-
-	-	1	Shifter Case, RH Control	-
-	-	1	Top Shaft Assembly	-
-	-	1	Transmission Case	-
-	-	1	Transmission Top Shaft, PowrReverser™	-
-	-	1	Brake	-
-	-	1	Oil Line, Hydraulic Pressure Valve to MFWD Drop Box	-
-	-	1	Oil Filter Assembly	-
-	-	1	Hydraulic Suction Oil Line, PowrReverser™	-
-	-	1	Hydraulic Pressure Valve	-
-	-	1	Fork and Shifter Assembly, PowrReverser™, Cab	-
-	-	1	Drive Shaft	-
-	-	1	Differential Lock Assembly	-
-	-	1	Differential Housing	-
-	-	1	Differential Drive Shaft Assembly	-
-	-	1	Differential	-
-	-	1	Counter Shaft	-
-	-	1	Counter Shaft	-
-	-	1	Control Valve	-
-	-	1	Clutch Housing	-
-	-	1	Clutch	-

58 Powrreverser Transmission, 12x12, 540/540E RPM, Park Pawl
