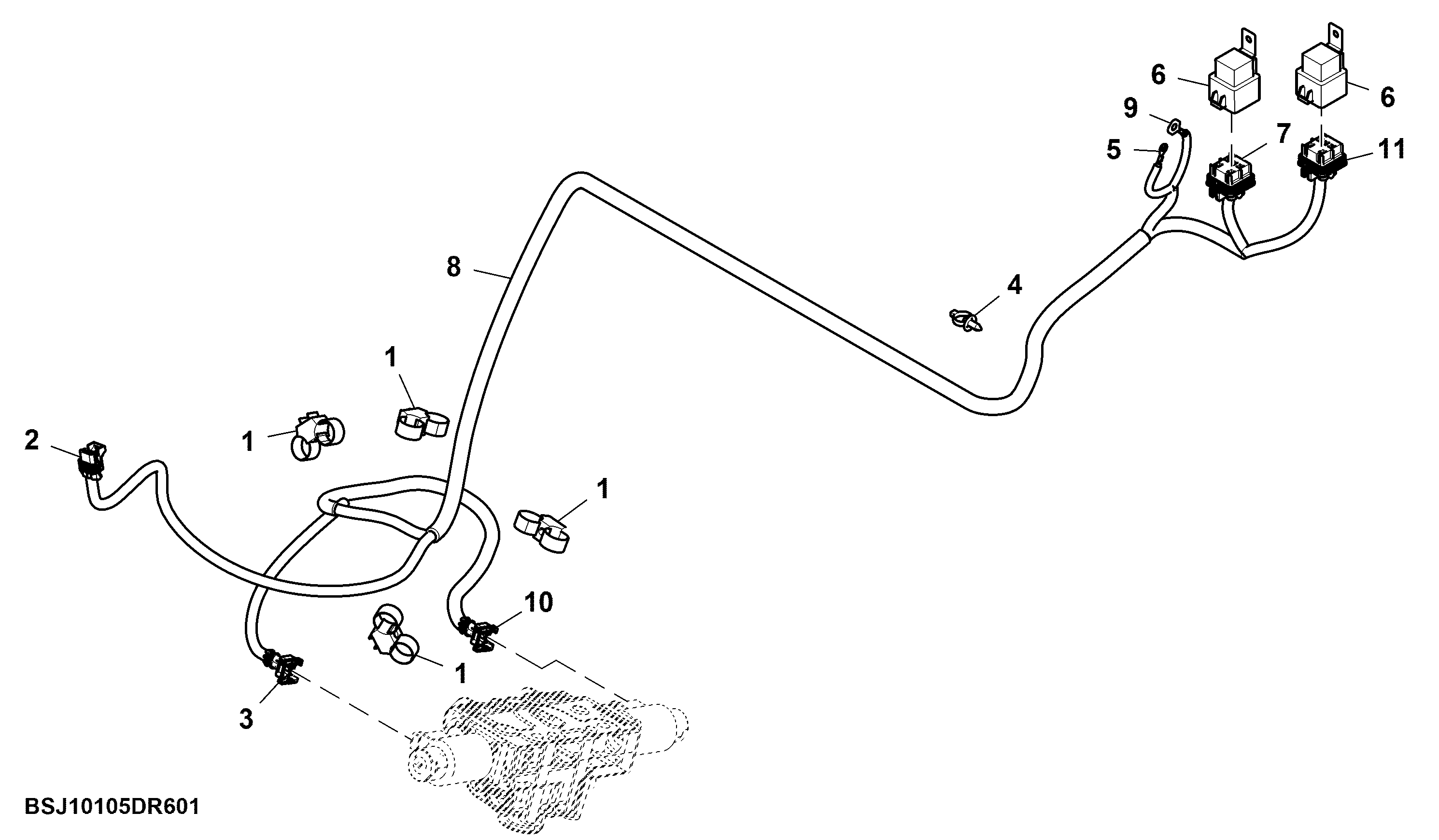

Wiring Harness, Triple Mid Mount SCV, OOS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R213663	4	Clamp	-
2	57M7255	1	Elec. Connector Housing	Mid Mount Solenoid Switch S19
2	57M7290	1	Elec. Connector Accessory	-
2	R104846	3	Elec. Connector Terminal	-
2	57M9215	3	Elec. Connector Seal	-
3	57M10118	1	Elec. Connector Housing	Mid Mount Solenoid Black Y03A
3	57M8621	2	Elec. Connector Terminal	-
3	57M8515	2	Elec. Connector Seal	-
4	RE258807	1	Tie Band	-
5	57M8875	1	Elec. Connector Terminal	Junction Block Ground 03B
6	SJ15811	2	Relay	20 A
7	57M8878	1	Elec.Connect Locking Device	-
7	57M9219	4	Elec. Connector Seal	Cavity 30, 85, 86, 87
7	57M7707	1	Elec. Connector Terminal	Cavity 30, 85, 86, 87
7	57M7966	1	Electrical Connector Assy	Mid Mount Relay Gray K26
8	SJ21206	1	Wiring Harness	Mid SCV, OOS
9	57M8871	1	Elec. Connector Terminal	Junction Block Switched Power 03A
10	57M10118	1	Elec. Connector Housing	Mid Mount Solenoid Gray Y03B
10	57M7290	1	Elec. Connector Accessory	-
10	57M8621	2	Elec. Connector Terminal	-
10	57M8515	2	Elec. Connector Seal	-
11	57M7966	1	Electrical Connector Assy	Mid Mount Relay Black K25
11	57M8878	1	Elec.Connect Locking Device	-
11	57M7707	1	Elec. Connector Terminal	Cavity 30, 85, 86, 87
11	57M9219	4	Elec. Connector Seal	Cavity 30, 85, 86, 87

Wiring Harness, Triple Mid Mount SCV, OOS

Нет текстового описания
